Toyota YARIS 前保险杠及附件 — Figure 5201

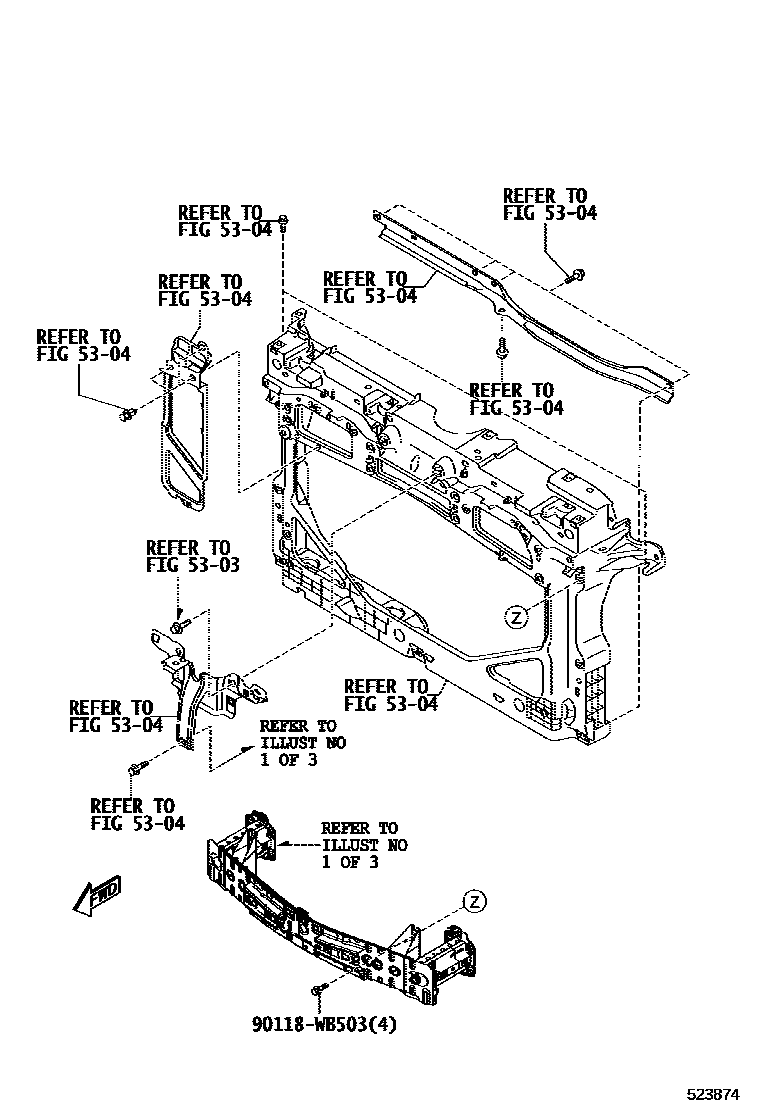

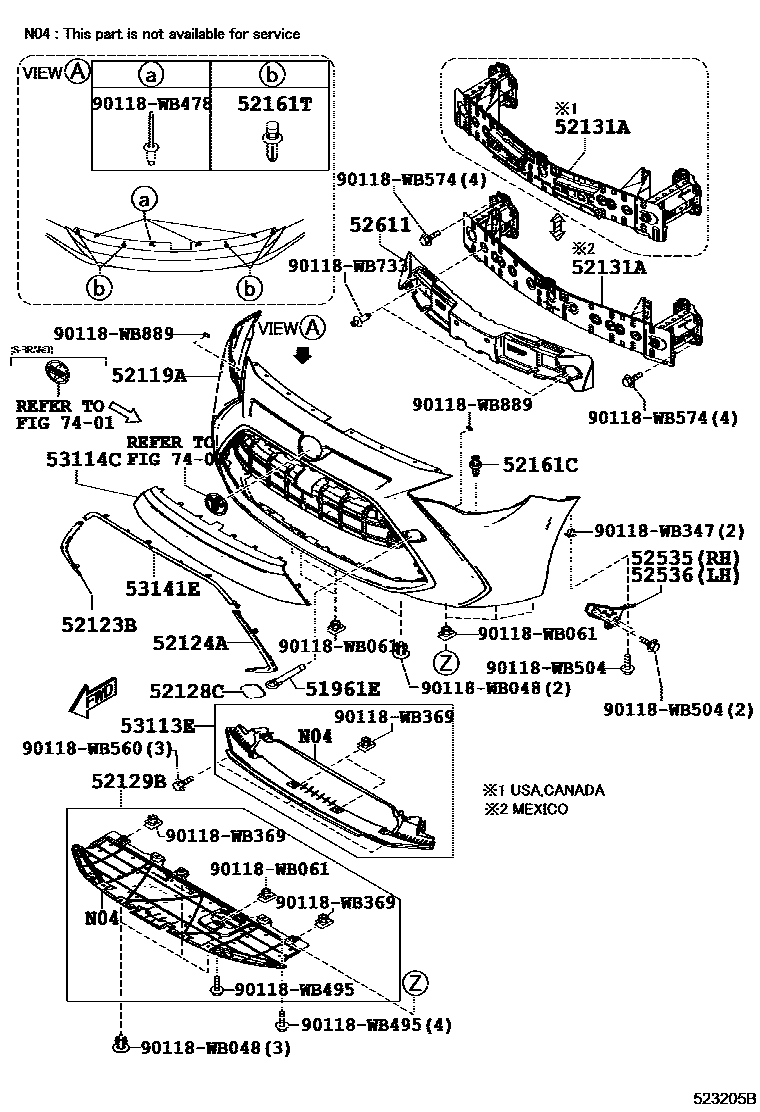

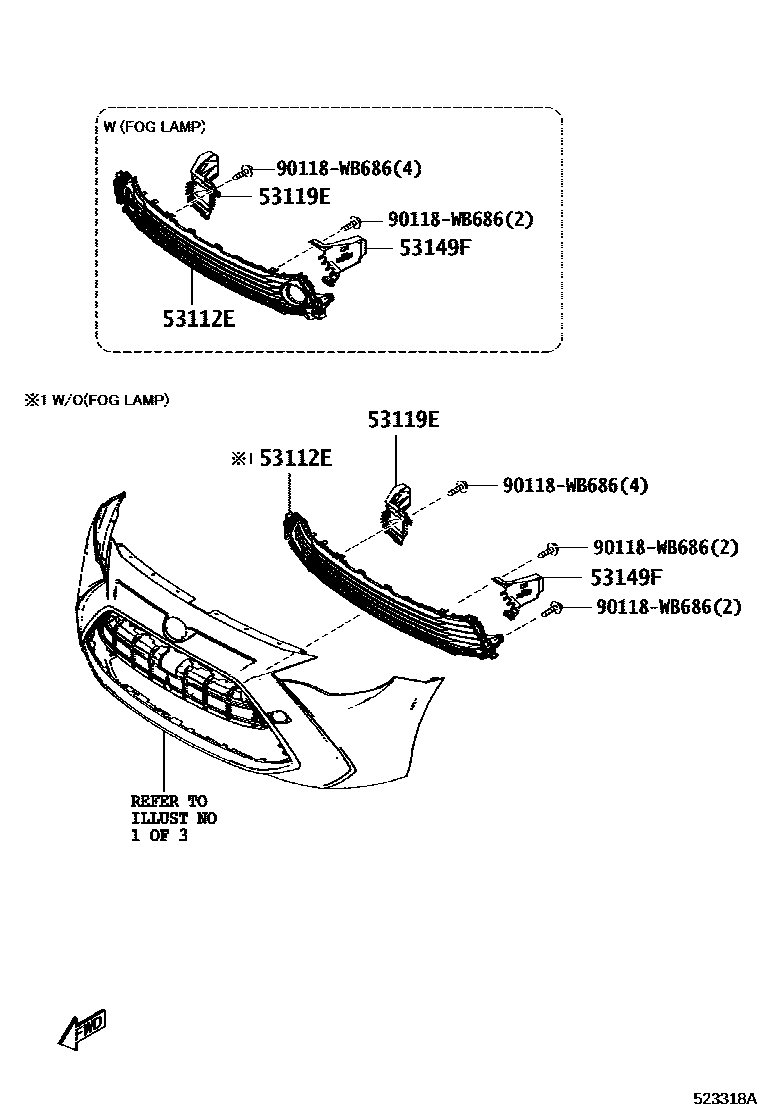

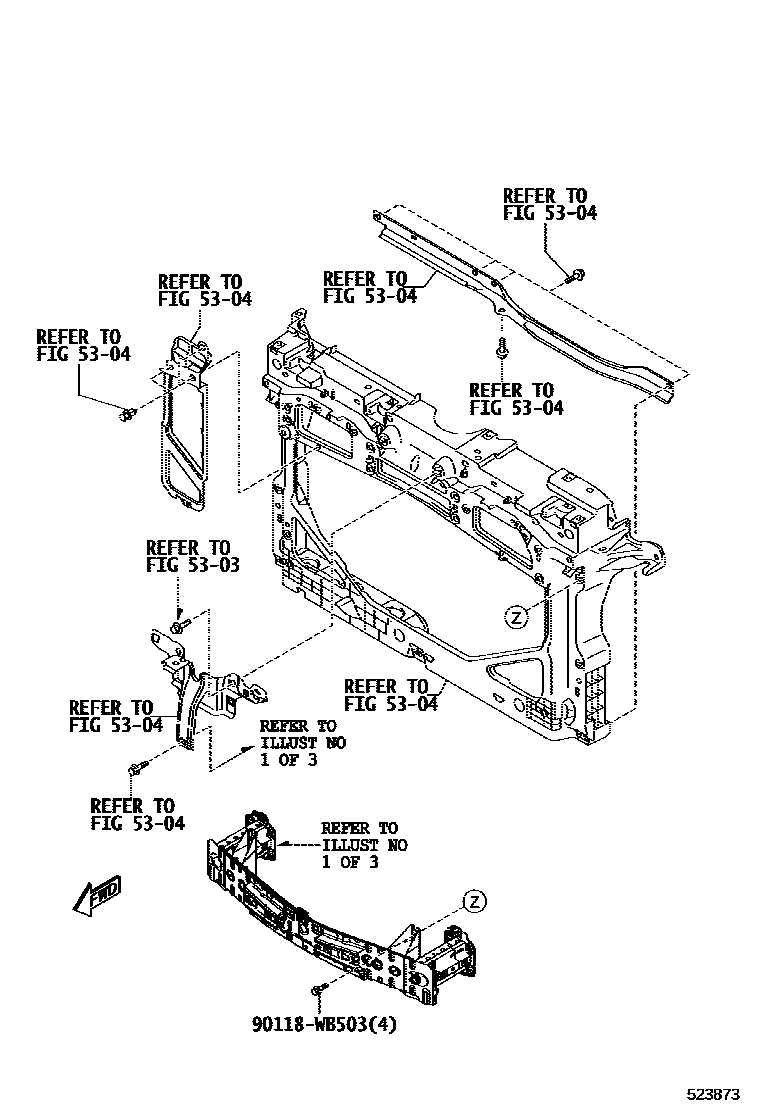

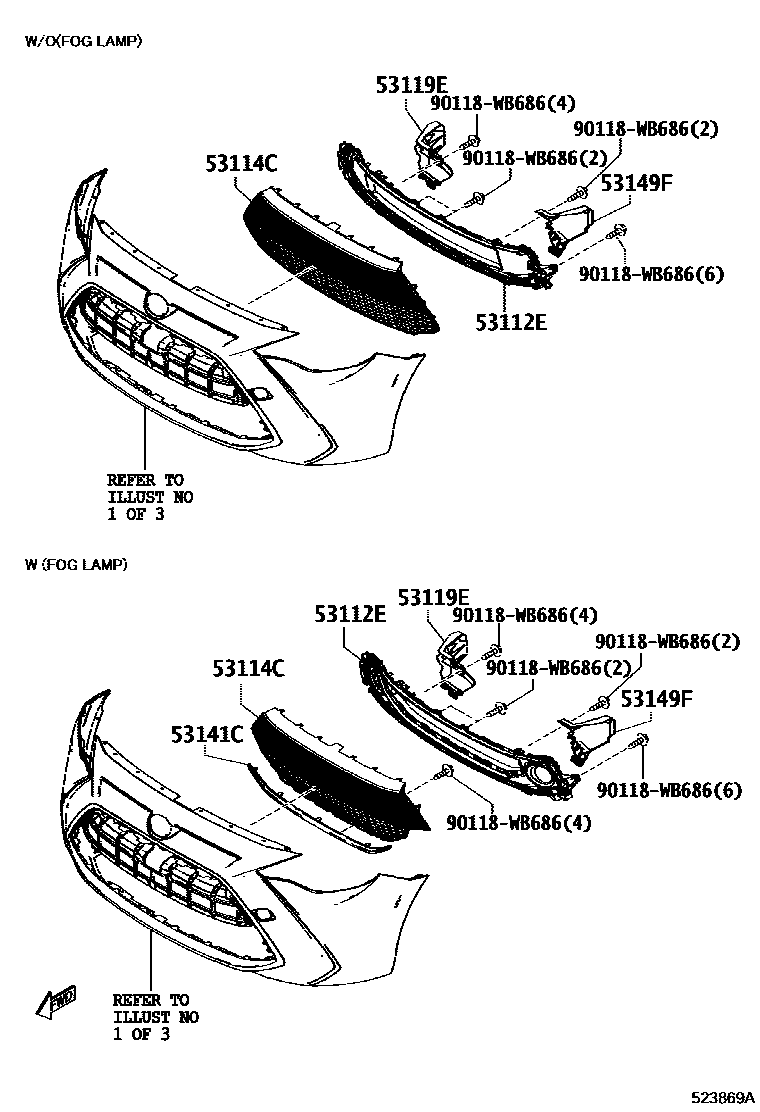

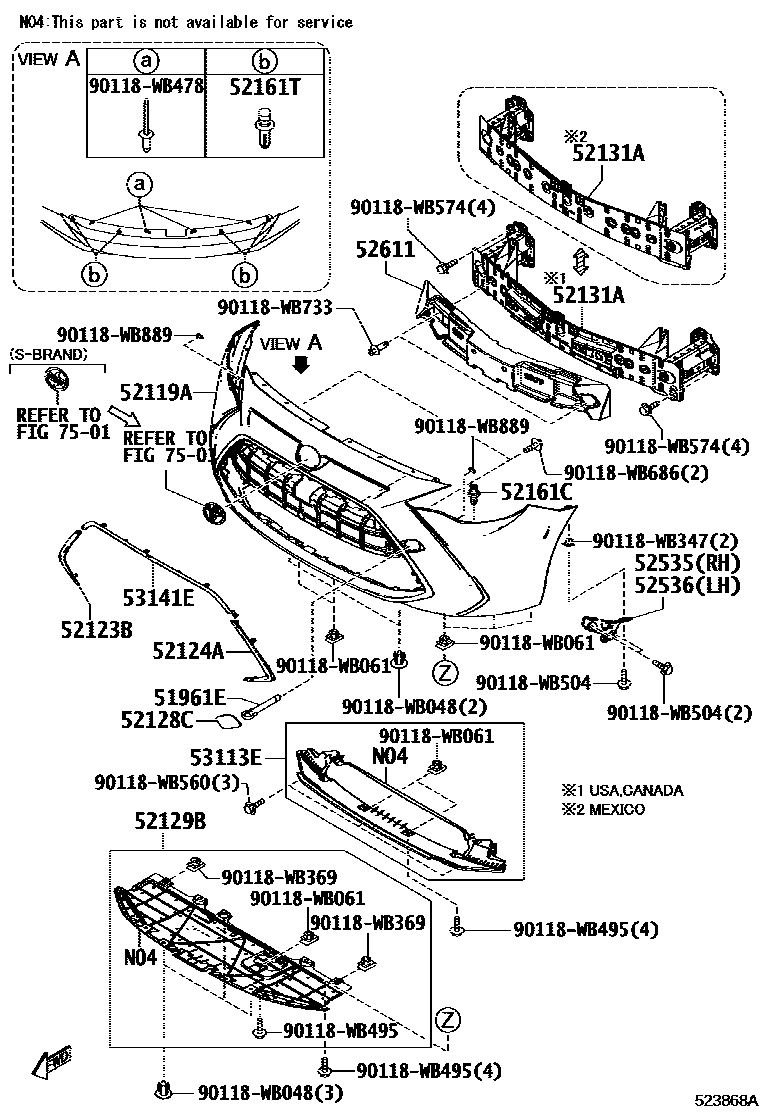

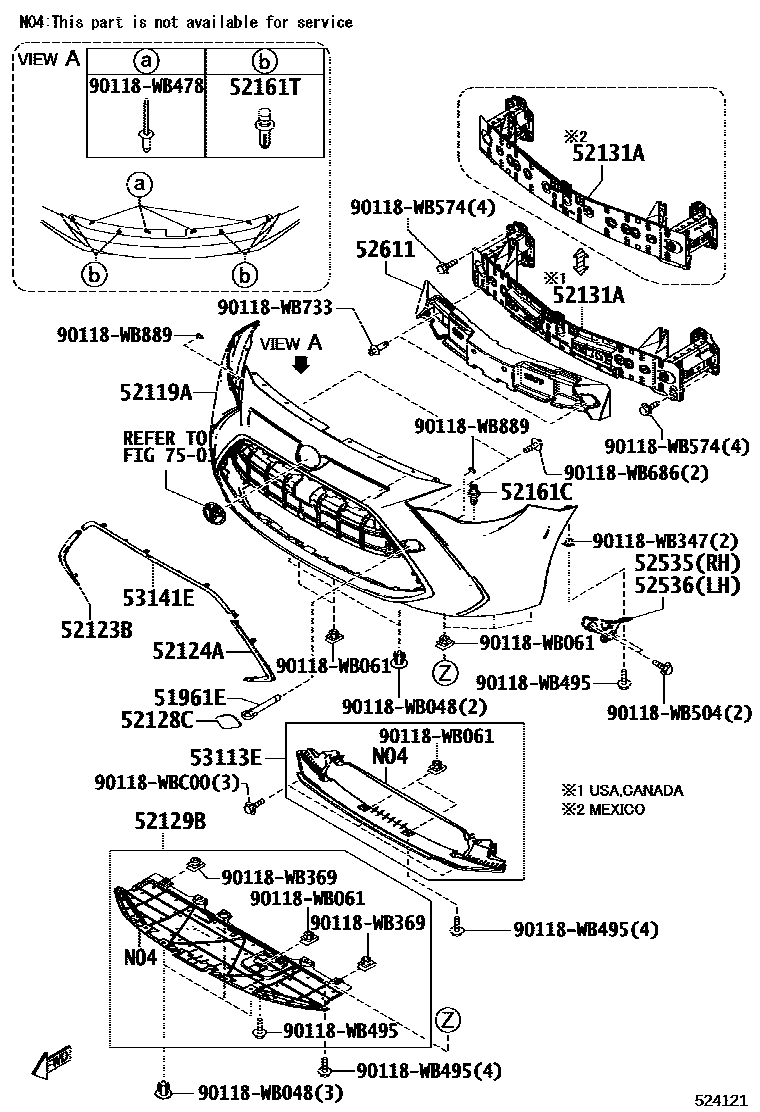

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51961E | front hook | 51961-WB001 |
| 52119A | front bumper cover | 52119-WB005 · 52119-WB006 |
| 52123B | Reinforcement panel on the right side of the front bumper | 53123-WB001 |
| 52124A | Front bumper reinforcement plate | 53124-WB001 |
| 52128C | Front bumper left hole cover | 52128-WB002 |
| 52129B | Front bumper lower cover | 52129-WB001 |
| 52131A | Front bumper reinforcement | 52131-WB001 · 52131-WB002 · 52131-WB003 · 52131-WB004 |
| 52161C | front bumper insert | 52161-WB001 |
| 52161T | front bumper insert | 90118-WB477 |
| 52535 | Front bumper right side fixing bracket | 52535-WB002 |
| 52536 | Front bumper left fixed bracket | 52536-WB002 |
| 52611 | front bumper energy absorber | 52611-WB001 · 52611-WB002 |
| 53112E | No. 1 radiator lower grille | 53112-WB005 · 53112-WB006 · 53112-WB007 · 53112-WB008 |
| 53113E | No. 2 radiator lower grille | 53113-WB001 |
| 53114C | inner radiator grille | 53114-WB003 · 53114-WB004 · 53114-WB006 |
| 53119E | Radiator grille protector | 53119-WB001 · 53119-WB003 |
| 53141C | Radiator grille trim | 53141-WB003 |
| 53141E | Radiator cap No. 1 | 53141-WB002 |
| 53149F | Radiator left grille guard | 53149-WB001 · 53149-WB003 |
