Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

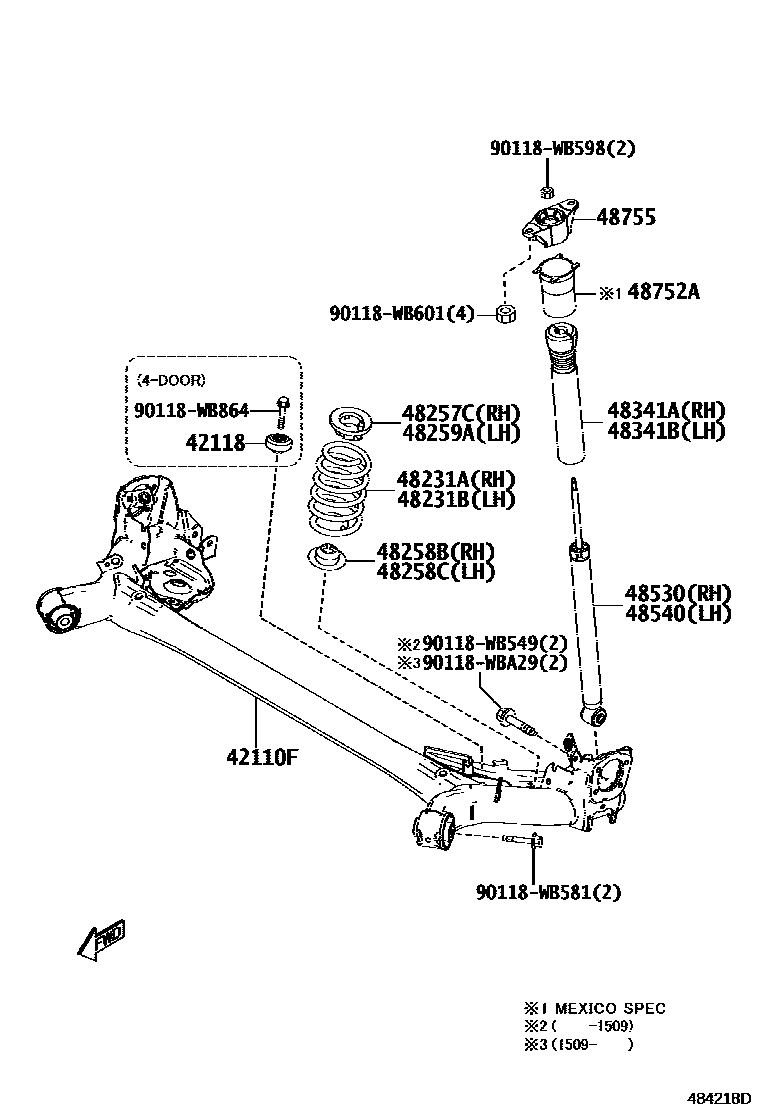

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-WB002 · 42110-WB003 · 42110-WB007 |
| 42118 | Rear axle damper | 33183-WB001 |
| 48231A | Right rear coil spring | 48231-WB001 · 48231-WB003 · 48231-WB004 · 48231-WB005 · 48231-WB006 |
| 48231B | Left rear coil spring | 48231-WB001 · 48231-WB003 · 48231-WB004 · 48231-WB005 · 48231-WB006 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-WB001 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-WB001 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-WB001 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-WB001 |
| 48341A | No. 1 right rear spring buffer block | 48750-WB002 |
| 48341B | No. 1 left rear spring buffer block | 48750-WB002 |
| 48530 | Right rear shock absorber assembly | 48530-WB004 · 48530-WB006 · 48530-WB007 · 48530-WB008 · 48530-WB009 · 48530-WB010 |
| 48540 | Left rear shock absorber assembly | 48530-WB004 · 48530-WB006 · 48530-WB007 · 48530-WB008 · 48530-WB009 · 48530-WB010 |
| 48752A | Rear suspension mount block | 48752-WB001 |
| 48755 | rear suspension mount | 48755-WB001 · 48755-WB002 |
