Toyota YARIS Front Spring & Shock Absorber — Figure 4803

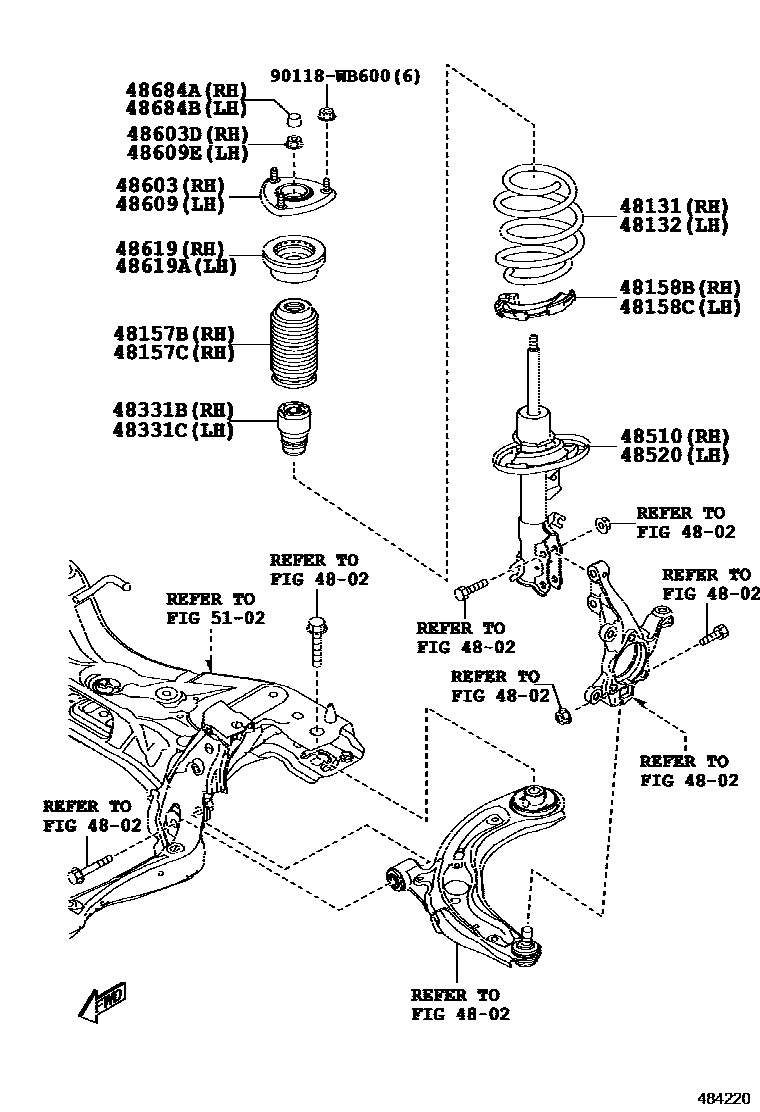

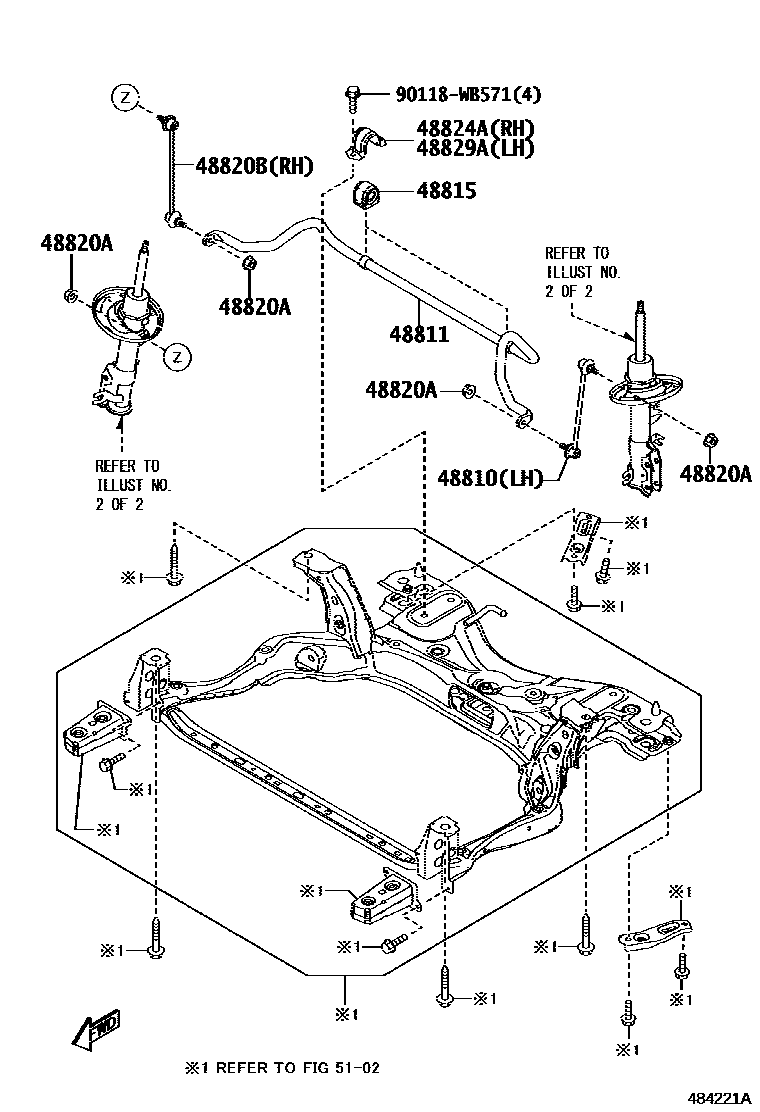

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-WB001 · 48131-WB002 · 48131-WB003 · 48131-WB004 |
| 48132 | Left front coil spring | 48131-WB001 · 48131-WB002 · 48131-WB003 · 48131-WB004 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-WB001 · 48157-WB002 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-WB001 · 48157-WB002 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-WB001 · 48158-WB002 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-WB001 · 48158-WB002 |
| 48331B | Right front spring buffer block | 48304-WB001 · 48304-WB002 |
| 48331C | Left front spring buffer block | 48304-WB001 · 48304-WB002 |
| 48510 | Right front shock absorber assembly | 48510-WB001 · 48510-WB002 · 48510-WB004 · 48510-WB005 |
| 48520 | Left front shock absorber assembly | 48520-WB001 · 48520-WB002 · 48520-WB004 · 48520-WB005 |
| 48603 | Right front suspension bearing sub-assembly | 48609-WB001 |
| 48603D | Nut (for front mount to right front shock absorber) | 90118-WB603 |
| 48609 | Left front suspension bearing sub-assembly | 48609-WB001 |
| 48609E | Nut (for front mount to left front shock absorber) | 90118-WB603 |
| 48619 | Bearing installed on the right sliding column | 48619-WB001 · 48619-WB002 |
| 48619A | Bearing installed on the left sliding column | 48619-WB001 · 48619-WB002 |
| 48684A | Right front suspension support dust cover | 48684-WB001 |
| 48684B | Left front suspension support dust cover | 48684-WB001 |
| 48810 | Left front stabilizer bar link assembly | 48820-WB001 · 48820-WB002 |
| 48811 | front stabilizer bar | 48811-WB001 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-WB001 · 48815-WB002 |
| 48820A | Nut (for front stabilizer bar link) | 90118-WB599 |
| 48820B | Right front stabilizer bar link assembly | 48820-WB001 · 48820-WB002 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-WB001 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-WB001 |
