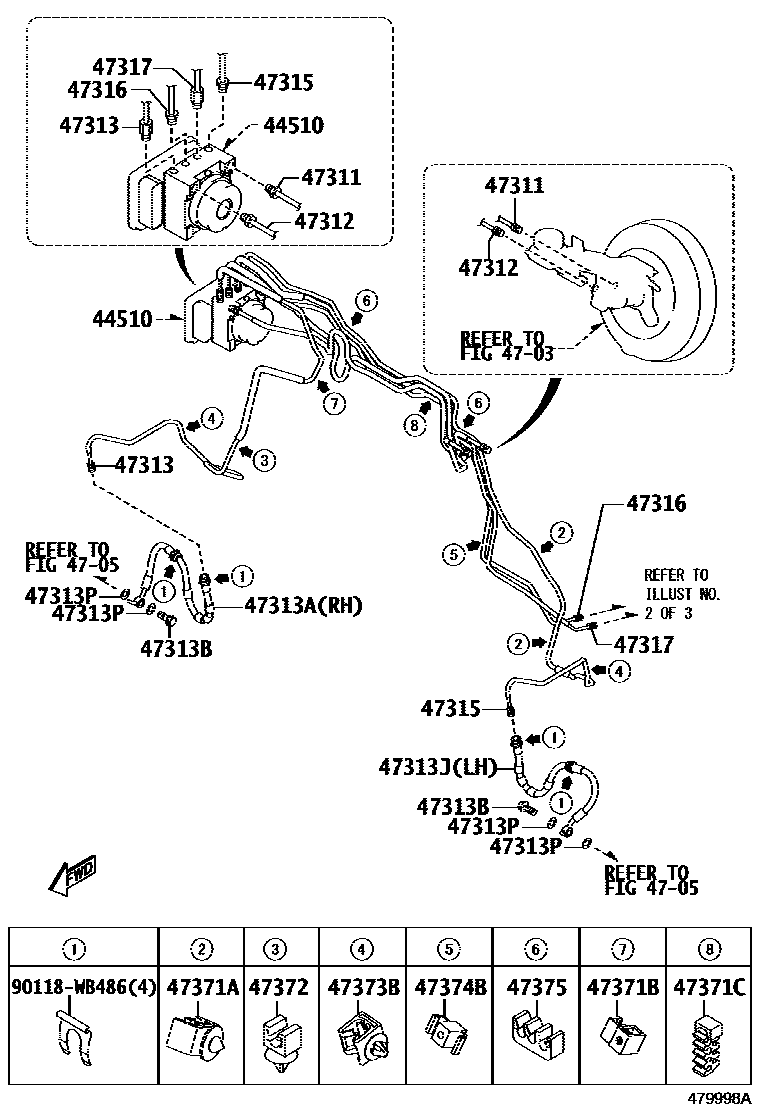

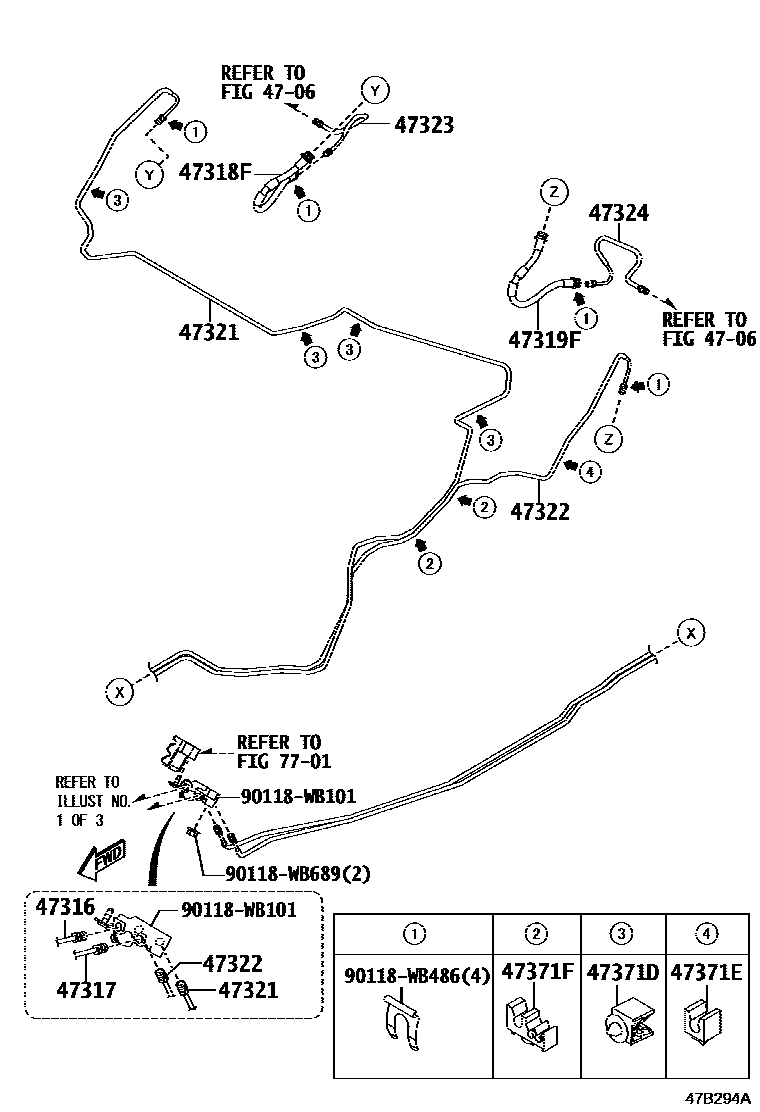

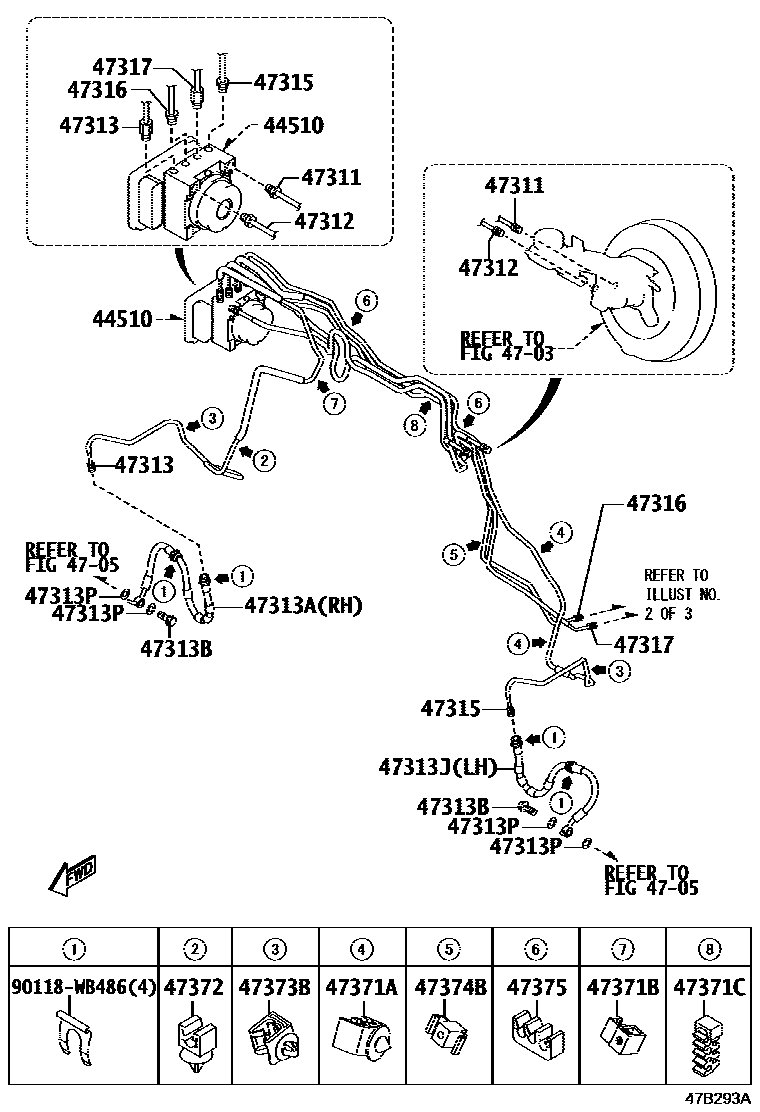

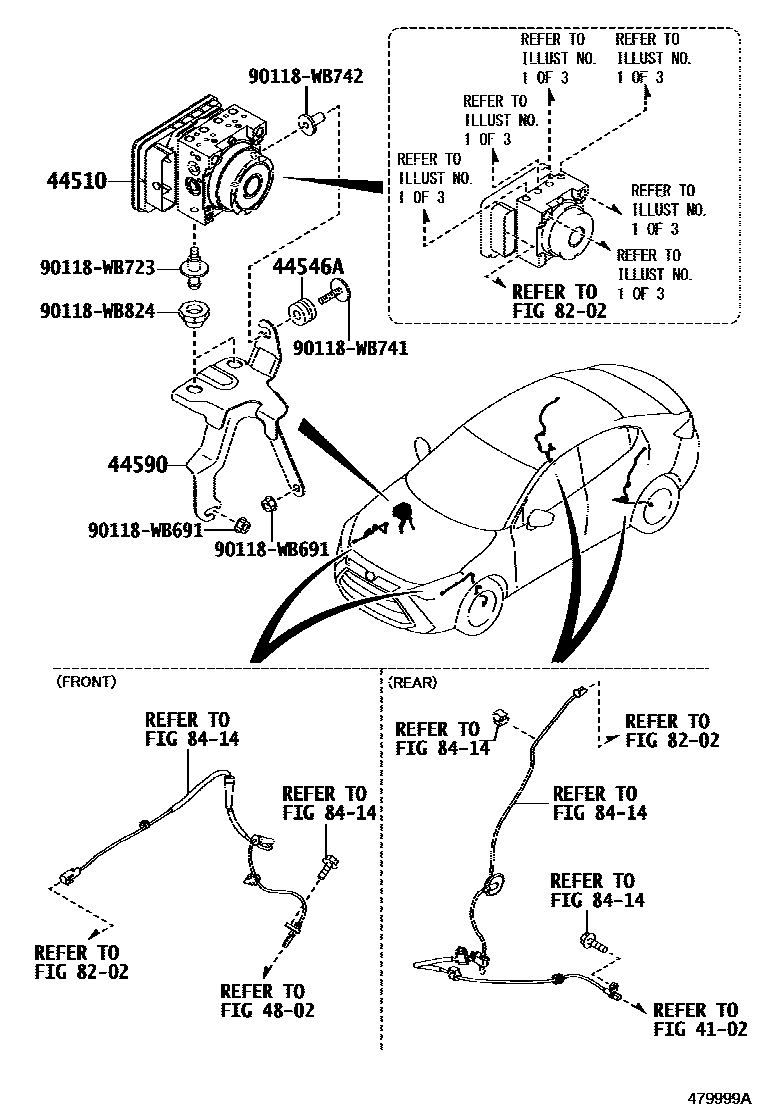

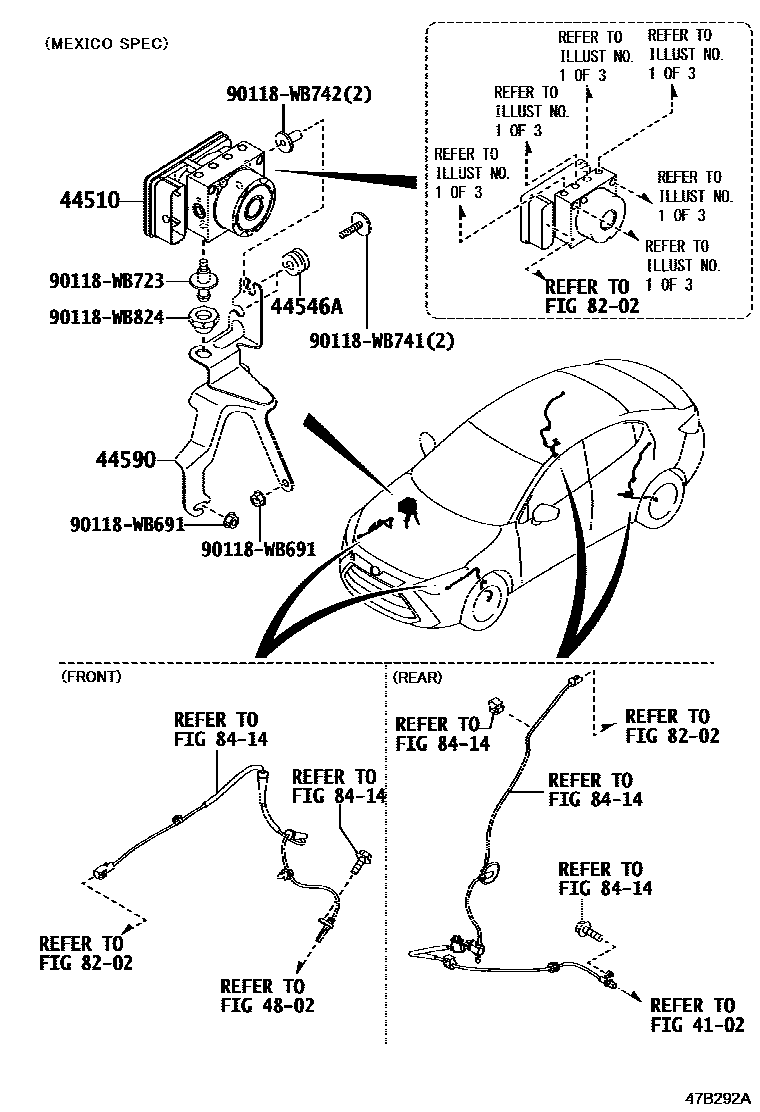

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 6 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-WB001 · 44050-WB002 · 44050-WB003 · 44050-WB005 · 44050-WB006 · 44050-WB007 |
| 44546A | Brake actuator bolt cushion | 90118-WB828 |
| 44590 | Brake actuator bracket assembly | 44590-WB001 · 44590-WB002 · 44590-WB003 · 44590-WB004 |
| 47311 | No. 1 front brake pipe | 47311-WB001 · 47311-WB002 · 47311-WB003 · 47311-WB004 |
| 47312 | No. 2 front brake pipe | 47312-WB001 · 47312-WB002 · 47312-WB003 · 47312-WB004 |
| 47313 | No. 3 front brake pipe | 47313-WB001 · 47313-WB002 |
| 47313A | No. 1 front flexible hose | 47330-WB001 |
| 47313B | Connector bolt (for front flex hose) | 90118-WB029 |
| 47313J | No. 2 front flexible hose | 47340-WB001 |
| 47313P | Gasket (for front flex hose) | 90118-WB665 |
| 47315 | No. 5 front brake pipe | 47315-WB001 · 47315-WB002 |
| 47316 | No. 6 front brake pipe | 47316-WB001 · 47316-WB002 |
| 47317 | No. 7 front brake pipe | 47317-WB001 · 47317-WB002 |
| 47318F | Right rear flexible hose | 90118-WB079 · 90118-WBB15 |
| 47319F | Left rear flexible hose | 90118-WB079 · 90118-WBB15 |
| 47321 | No. 1 rear brake pipe | 47321-WB001 |
| 47322 | No. 2 rear brake pipe | 47322-WB001 |
| 47323 | No. 3 rear brake pipe | 47323-WB001 |
| 47324 | No. 4 rear brake pipe | 47324-WB001 |
| 47371A | No. 1 brake pipe clamp | 90118-WB099 |
| 47371B | No. 6 brake pipe clamp | 90118-WB070 |
| 47371C | No. 7 brake pipe clamp | 90118-WB072 |
| 47371D | No. 8 brake pipe clamp | 90118-WB401 |
| 47371E | No. 9 brake pipe clamp | 90118-WB093 · 90118-WB771 |
| 47371F | No. 10 brake pipe clamp | 90118-WB345 · 90118-WB767 |
| 47372 | No. 2 brake pipe clamp | 90118-WB355 |
| 47373B | No. 3 brake pipe clamp | 90118-WB004 |
| 47374B | No. 4 brake pipe clamp | 90118-WB071 |
| 47375 | No. 5 brake pipe clamp | 90118-WB136 |
