Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706

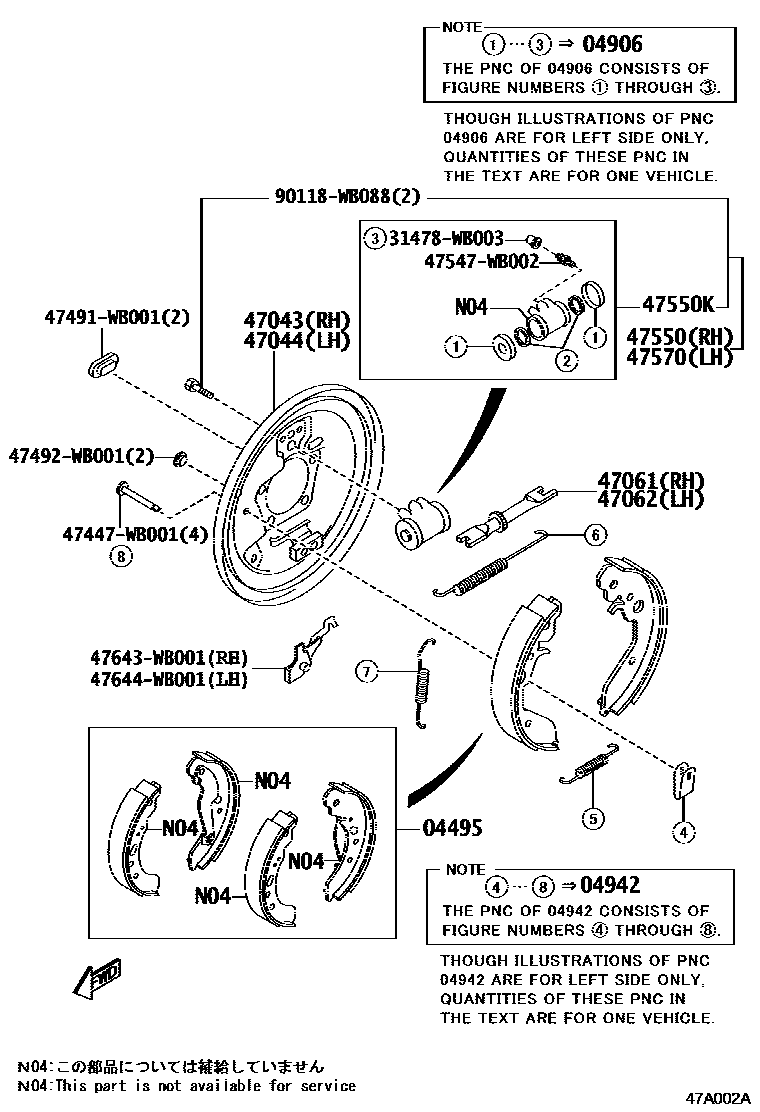

Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-WB001 |
| 04906 | Rear wheel pump cup assembly | 04474-WB001 |
| 04942 | Rear brake spring assembly | 04942-WB001 |
| 47043 | Right rear brake base plate sub-assembly | 47043-WB001 |
| 47044 | Left rear brake base plate sub-assembly | 47044-WB001 |
| 47061 | Right parking brake shoe push rod assembly | 47061-WB001 |
| 47062 | Left parking brake shoe push rod assembly | 47062-WB001 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-WB001 |
| 47550K | rear wheel pump assembly | 47550-WB002 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-WB001 |
