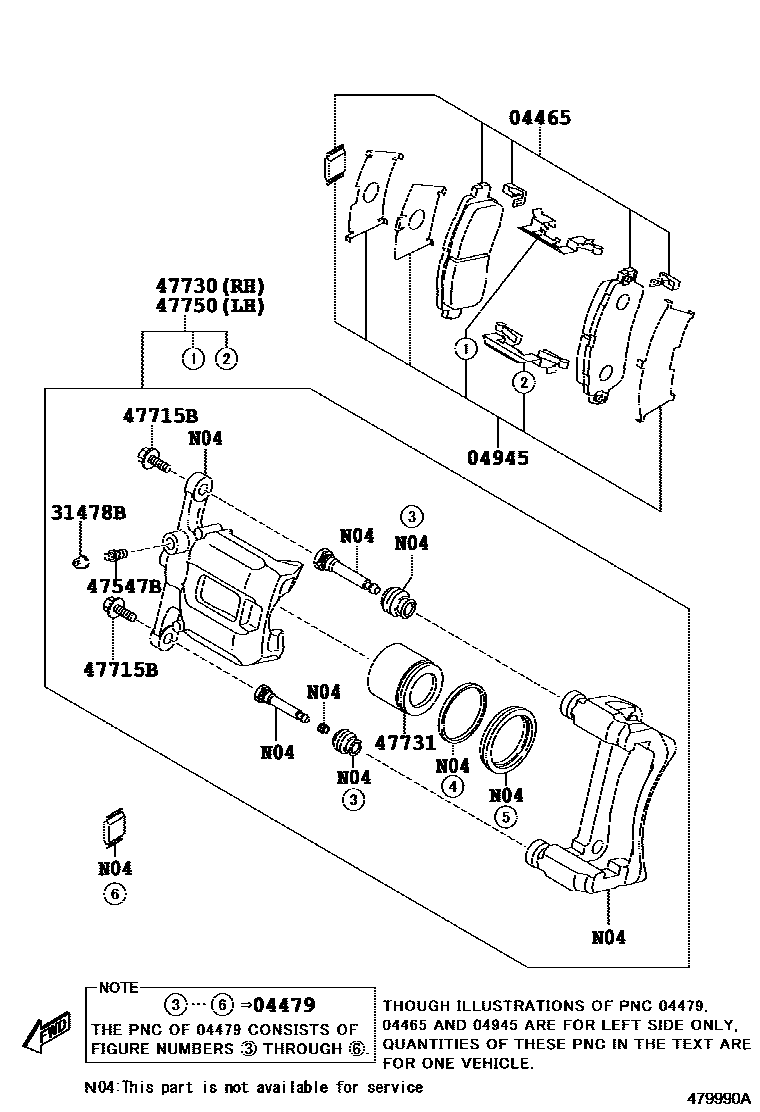

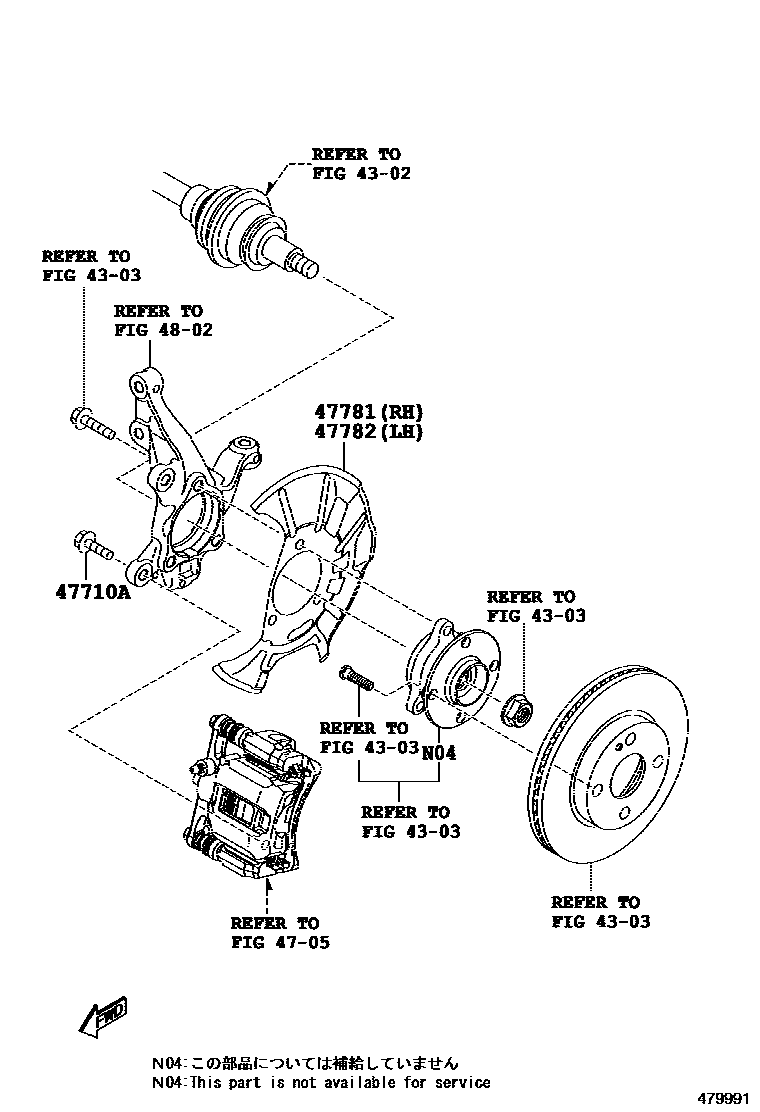

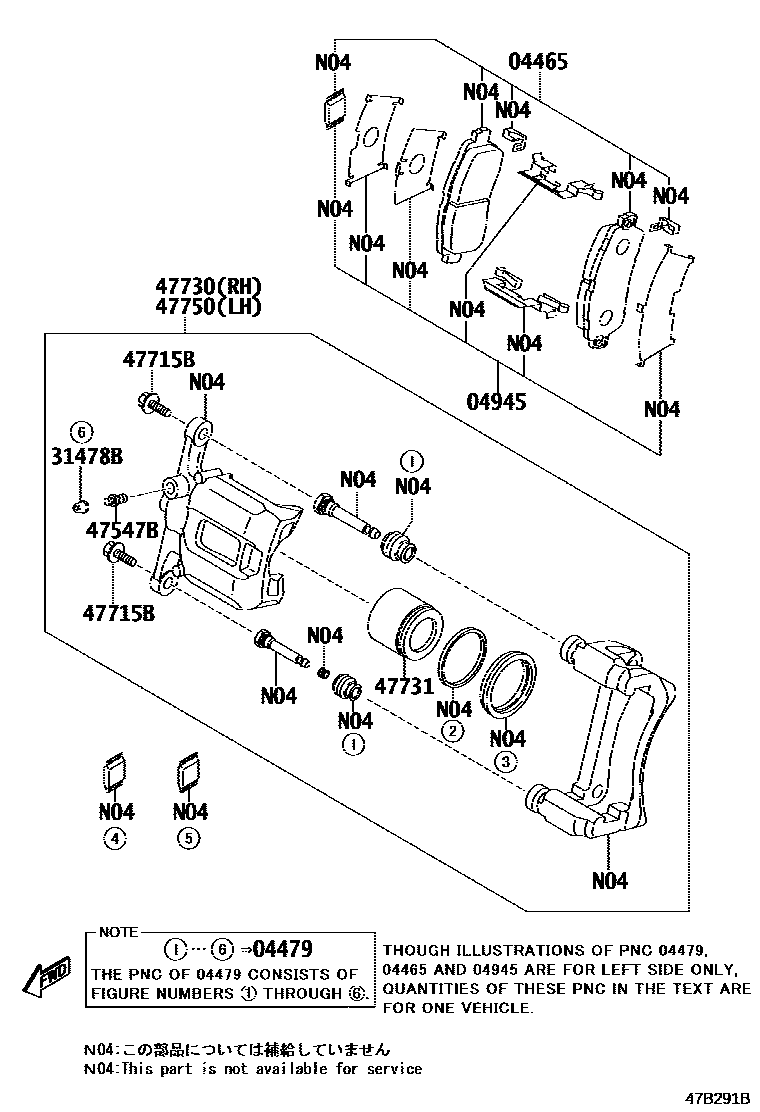

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-WB001 |
| 04479 | Front disc brake cylinder assembly | 04478-WB001 |
| 04945 | Front silencer gasket assembly | 04945-WB001 · 04945-WB002 · 04945-WB003 · 04945-WB004 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-WB002 |
| 47547B | Bleed plug (for front disc brake) | 47547-WB001 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90118-WB543 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90118-WB073 |
| 47730 | Right front disc brake cylinder assembly | 47730-WB001 · 47730-WB002 |
| 47731 | Front disc brake piston | 47731-WB001 |
| 47750 | Left disc brake cylinder assembly | 47750-WB001 · 47750-WB002 |
| 47781 | Right front disc brake dust cover | 47781-WB001 |
| 47782 | Left front disc brake dust cover | 47782-WB001 |
