Toyota YARIS 制动总泵 — Figure 4702

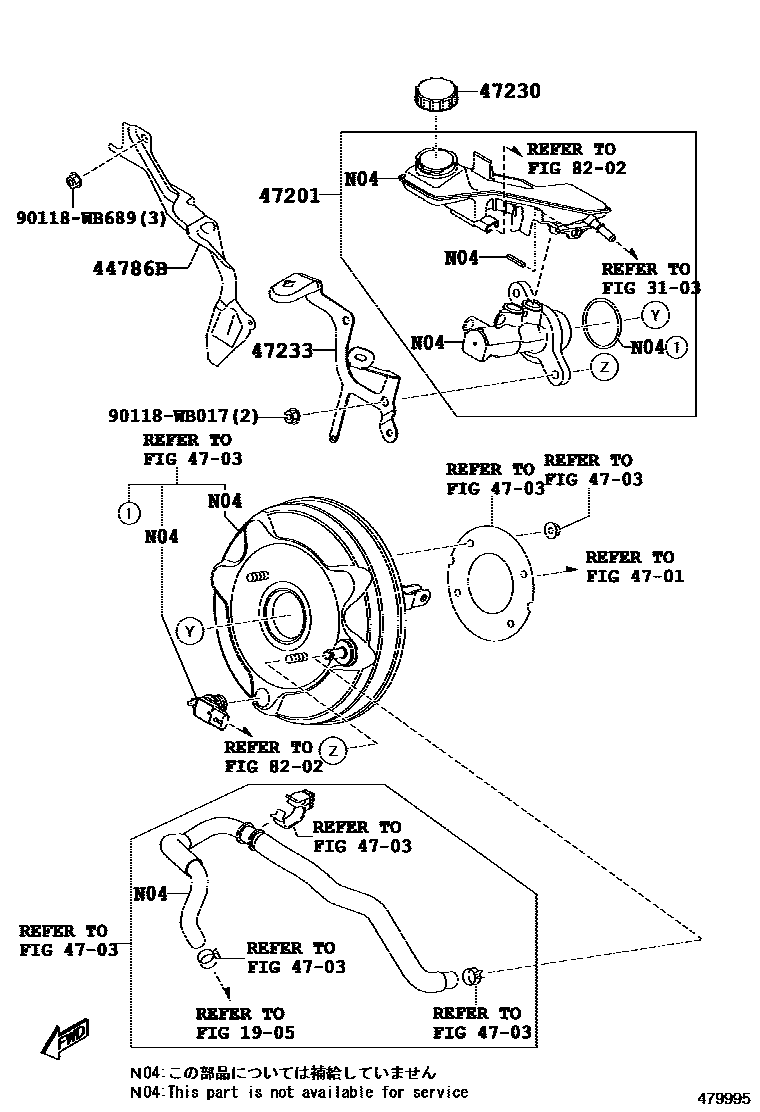

Toyota YARIS EPC diagram 4702, 制动总泵, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44786B | Brake master cylinder insulation pad | 44786-WB001 |
| 47201 | Brake master cylinder sub-assembly | 47201-WB001 · 47201-WB002 · 47201-WB003 · 47201-WB004 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-WB001 · 47230-WB002 |
| 47233 | Reservoir tank bracket | 47233-WB001 |
