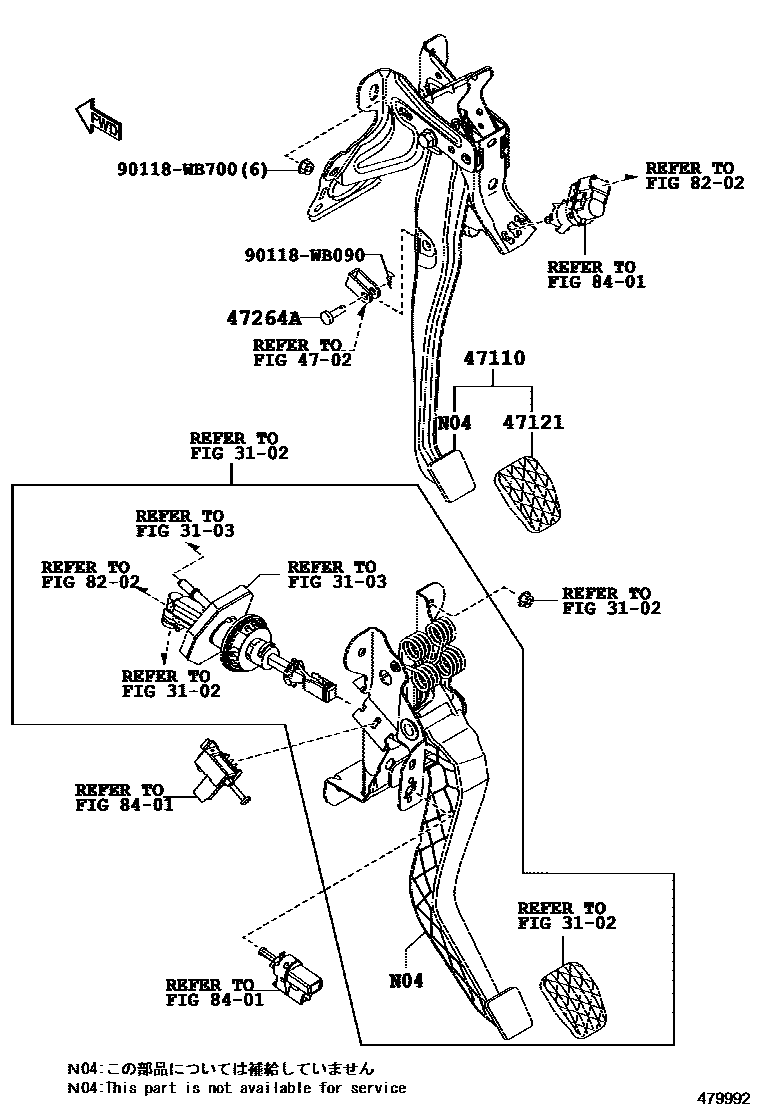

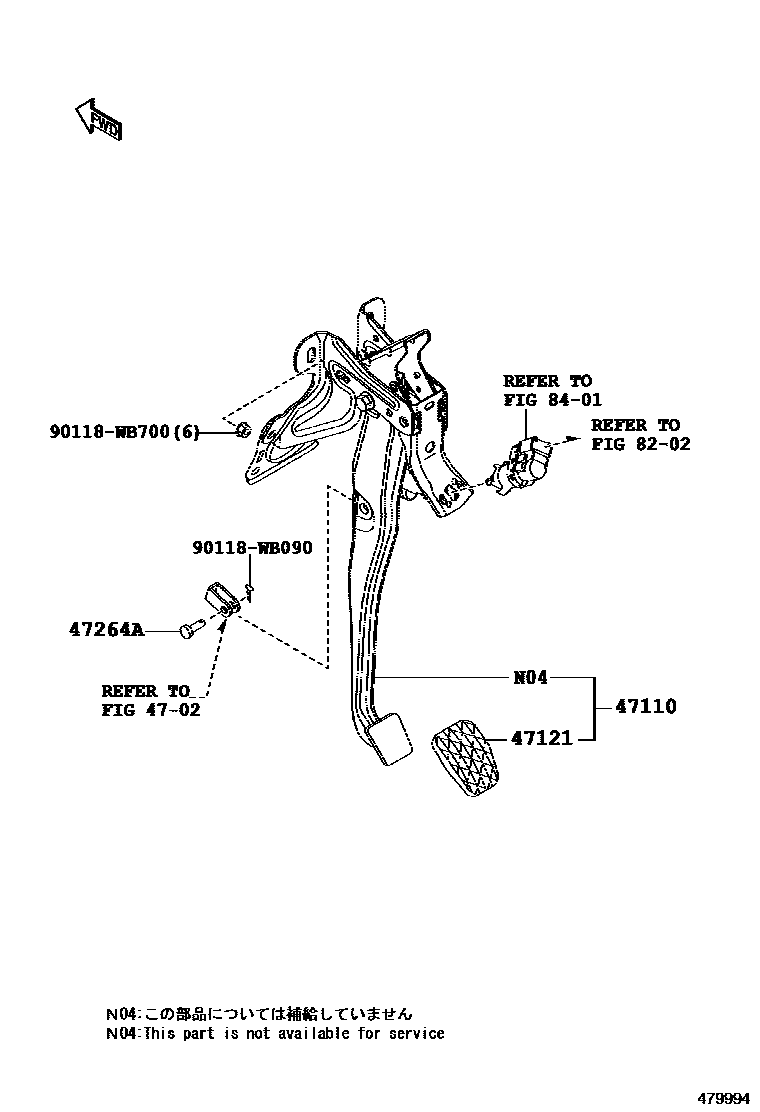

Toyota YARIS Brake Pedal & Bracket — Figure 4701
Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47110 | Brake pedal bracket assembly | 47110-WB001 · 47110-WB002 · 47110-WB003 |
| 47121 | brake pedal pad | 31321-WB001 · 31321-WB002 · 31321-WB003 |
| 47264A | Pin (for push rod) | 90118-WB617 |
