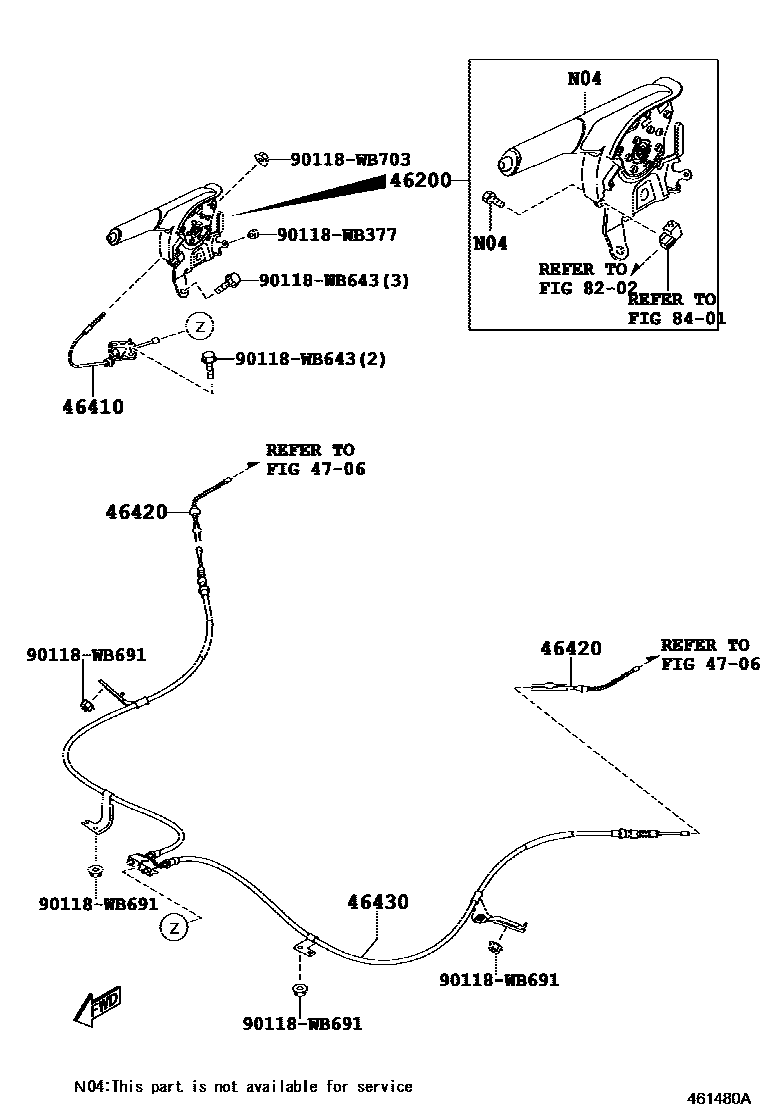

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46201-WB001 · 46201-WB002 · 46201-WB003 · 46201-WB004 |
| 46410 | Parking brake cable assembly No. 1 | 46410-WB001 |
| 46420 | Parking brake No. 2 cable assembly | 46440-WB001 |
| 46430 | Parking brake No. 3 cable assembly | 46420-WB001 |
