Toyota YARIS 前转向齿轮和连杆 — Figure 4505

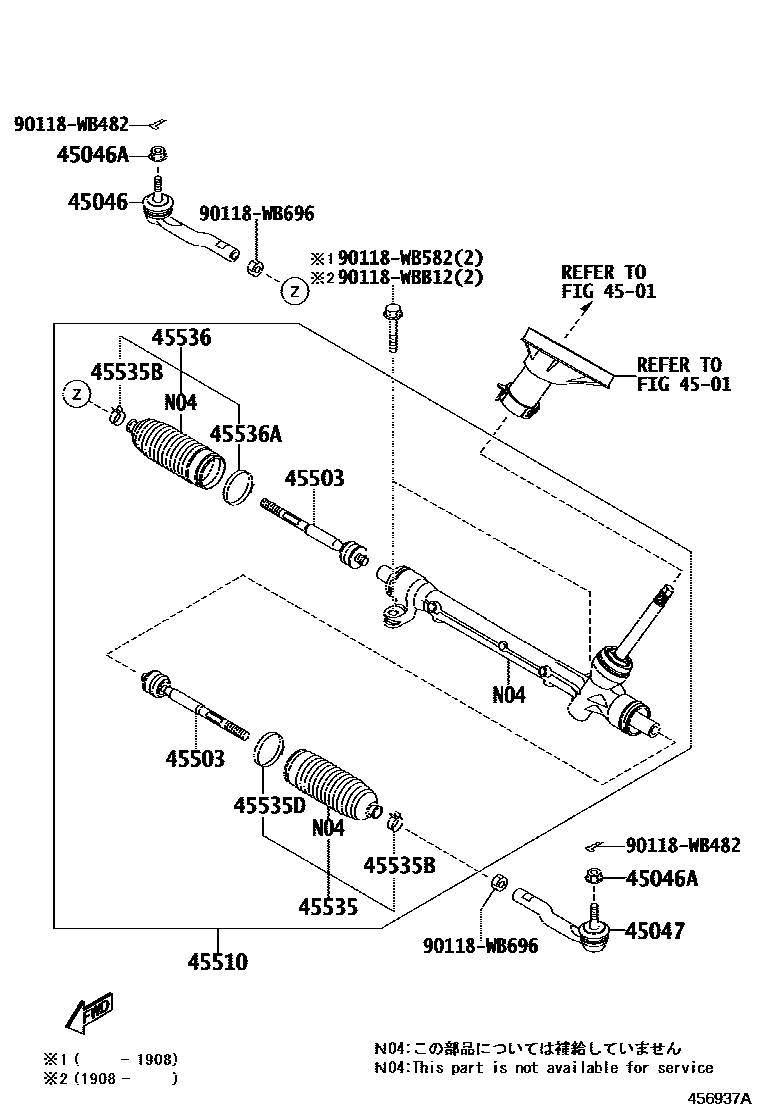

Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-WB001 · 45046-WB002 |
| 45046A | Castle nuts (for tie rod ends) | 90118-WB602 |
| 45047 | Left tie rod end sub-assembly | 45047-WB001 · 45047-WB002 |
| 45503 | Steering rack end sub-assembly | 45503-WB001 |
| 45510 | Steering gear assembly | 45510-WB001 · 45510-WB002 · 45510-WB005 · 45510-WB006 |
| 45535 | No. 1 steering rack dust cover | 45535-WB001 |
| 45535B | Clamp (for steering rack dust boot) | 90118-WB098 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90118-WB092 |
| 45536 | No. 2 steering rack dust cover | 45535-WB001 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90118-WB092 |
