Toyota YARIS Steering Wheel — Figure 4504

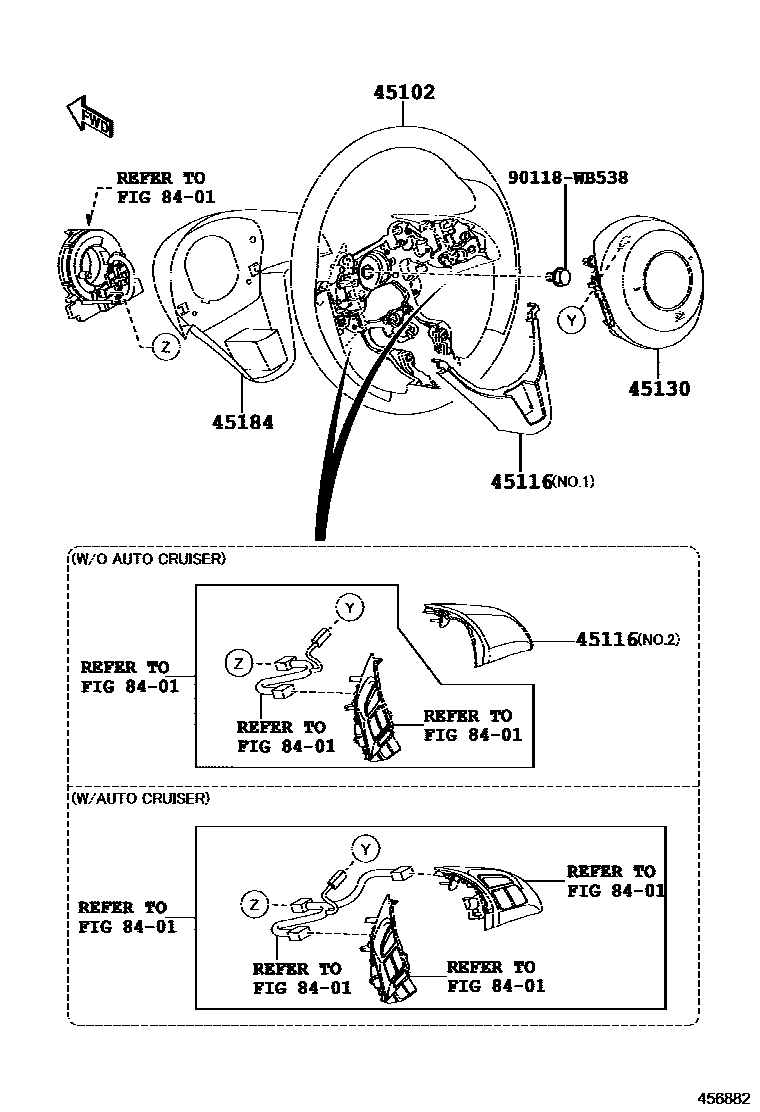

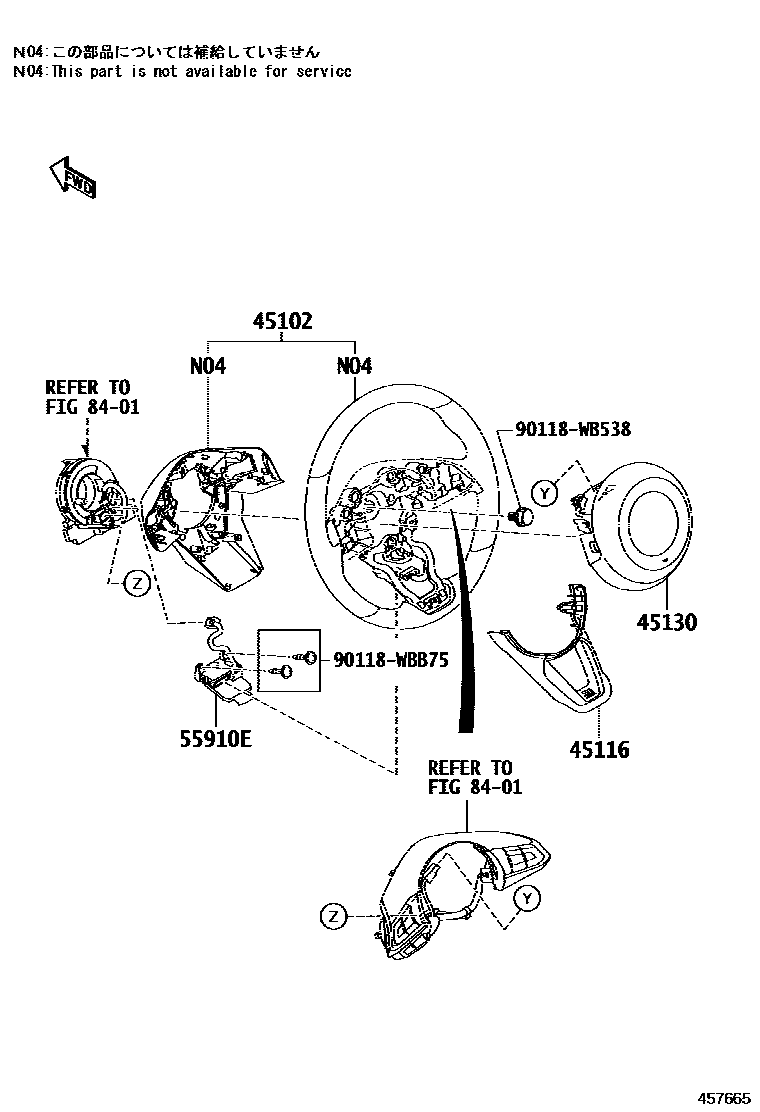

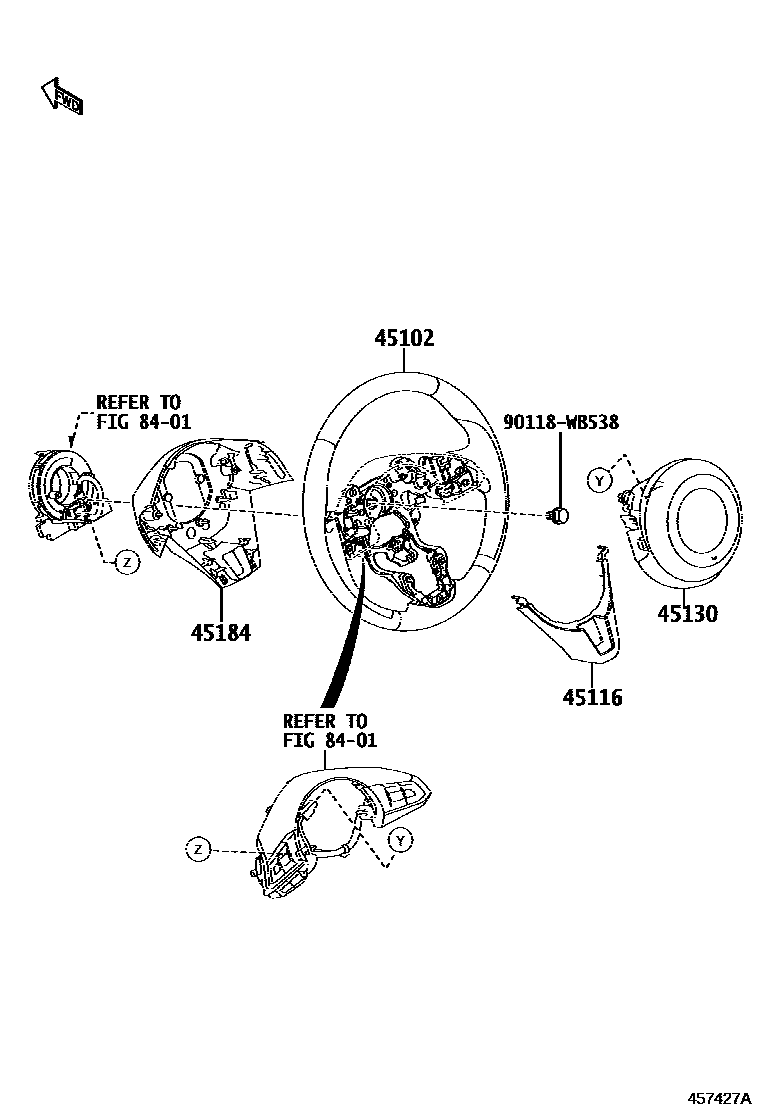

Toyota YARIS EPC diagram 4504, Steering Wheel, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45102 | Steering wheel sub-assembly | 45100-WB001 · 45102-WB001 · 45102-WB002 · 45102-WB003 · 45102-WB004 |
| 45116 | No. 1 steering wheel decorative parts | 45116-WB001 · 45116-WB003 · 45116-WB004 · 45116-WB005 · 45116-WB006 |
| 45130 | Speaker button assembly | 45130-WB001 · 45130-WB002 · 45130-WB004 · 45130-WB005 · 45130-WB006 |
| 45184 | Steering wheel boss lower cover | 45184-WB001 · 45184-WB002 |
| 55910E | Steering wheel heater control assembly | 55910-WB001 |
