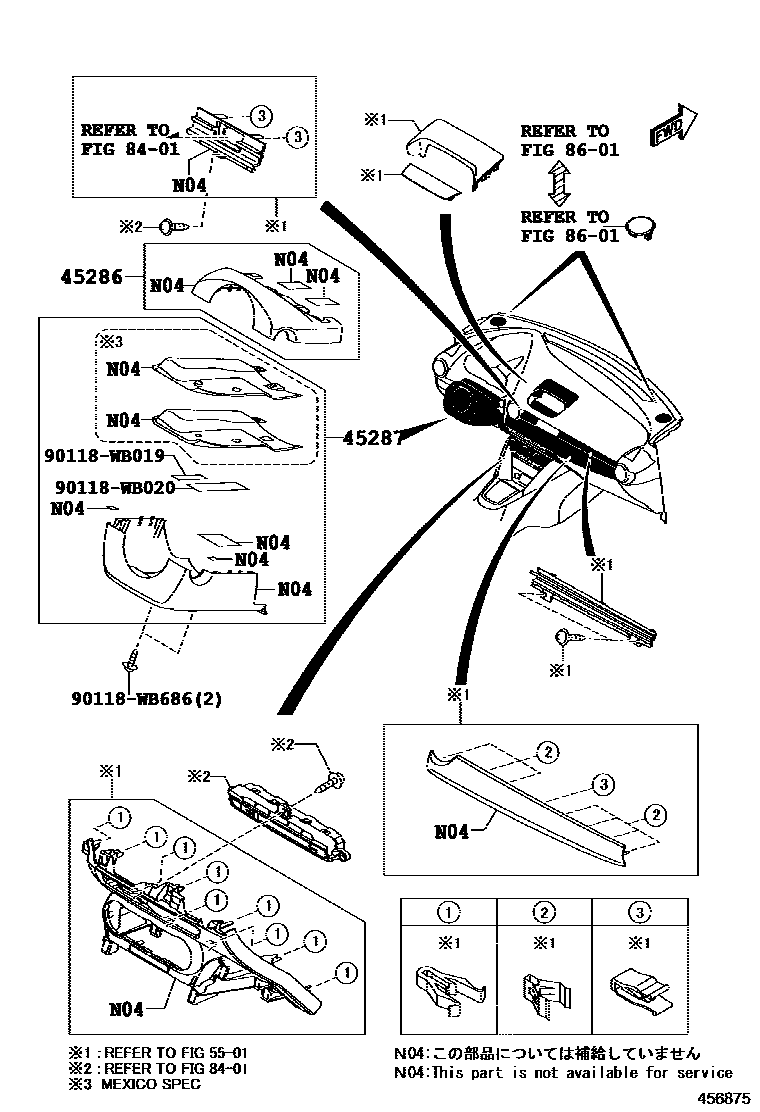

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 9 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

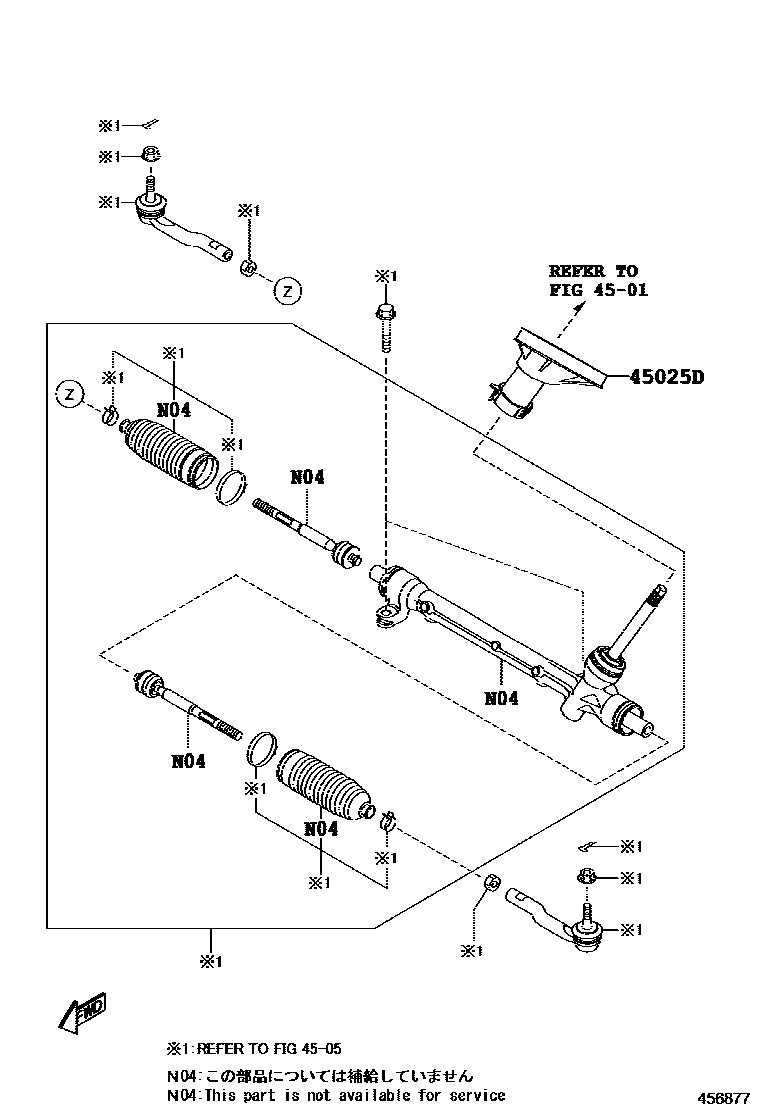

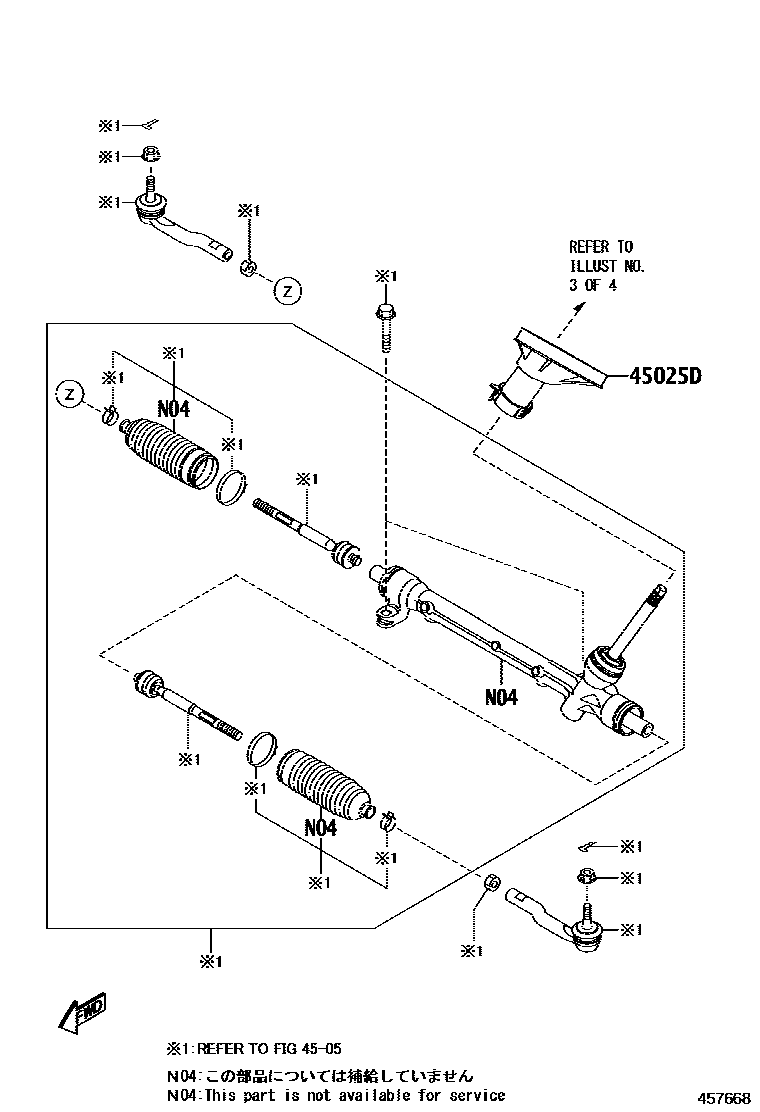

| 45025D | No. 1 steering column hole cover sub-assembly | 45025-WB001 · 45025-WB002 |

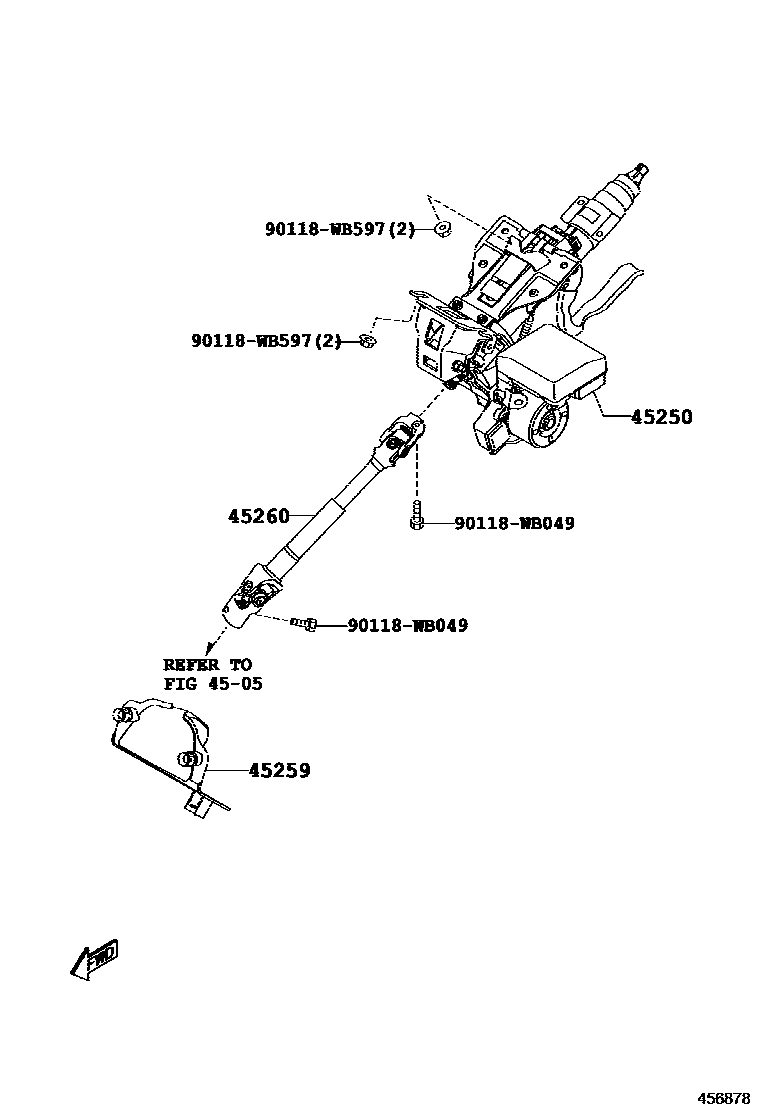

| 45250 | Steering column assembly | 45250-WB003 · 45250-WB004 · 45250-WB006 · 45250-WB007 · 45250-WB008 · 45250-WB010 · 45250-WB013 |
| 45259 | Steering column lower cover | 45259-WB001 |
| 45260 | No. 2 steering intermediate shaft assembly | 45220-WB001 · 45220-WB002 |

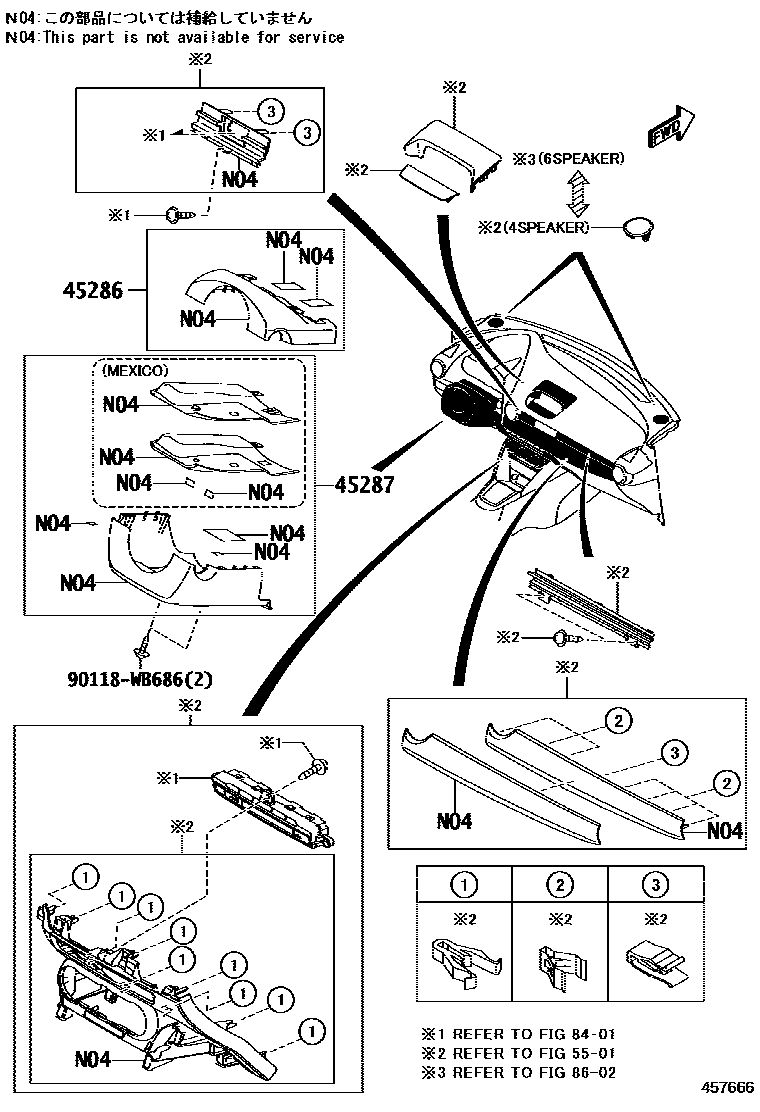

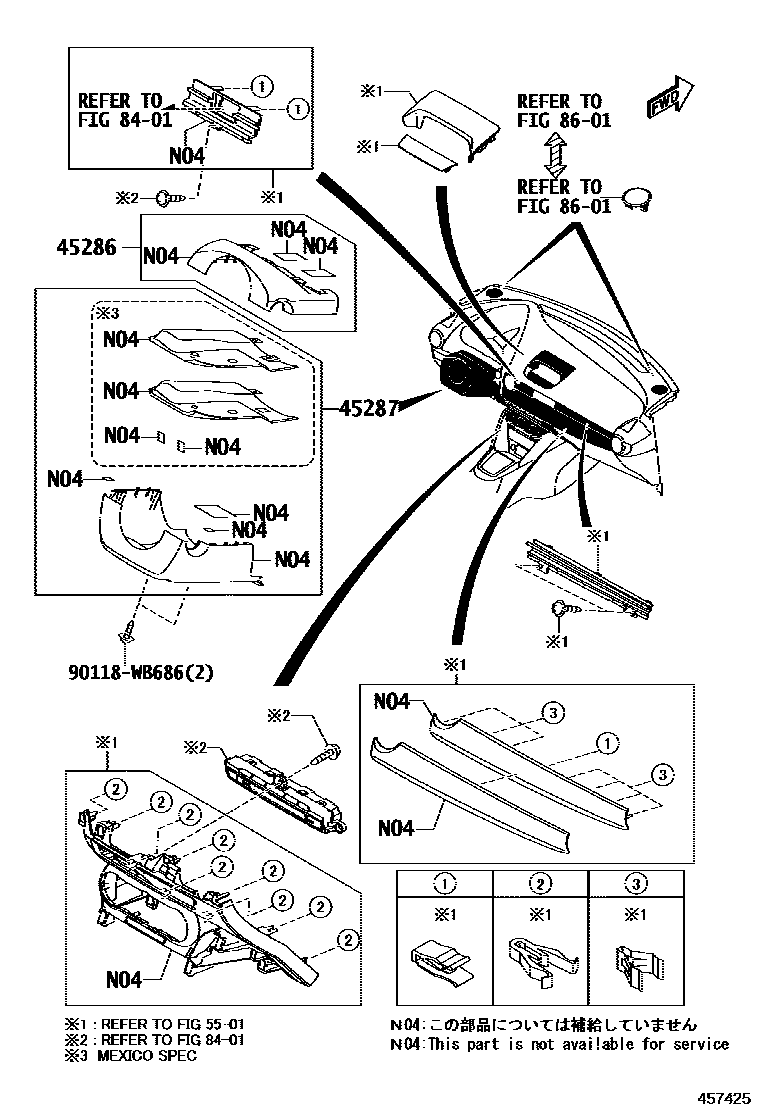

| 45286 | steering column cover | 45286-WB001 · 45286-WB002 |
| 45287 | Steering column lower cover | 45287-WB001 · 45287-WB002 · 45287-WB003 · 45287-WB004 · 45287-WB005 · 45287-WB006 |
