Toyota YARIS Front Drive Shaft — Figure 4302

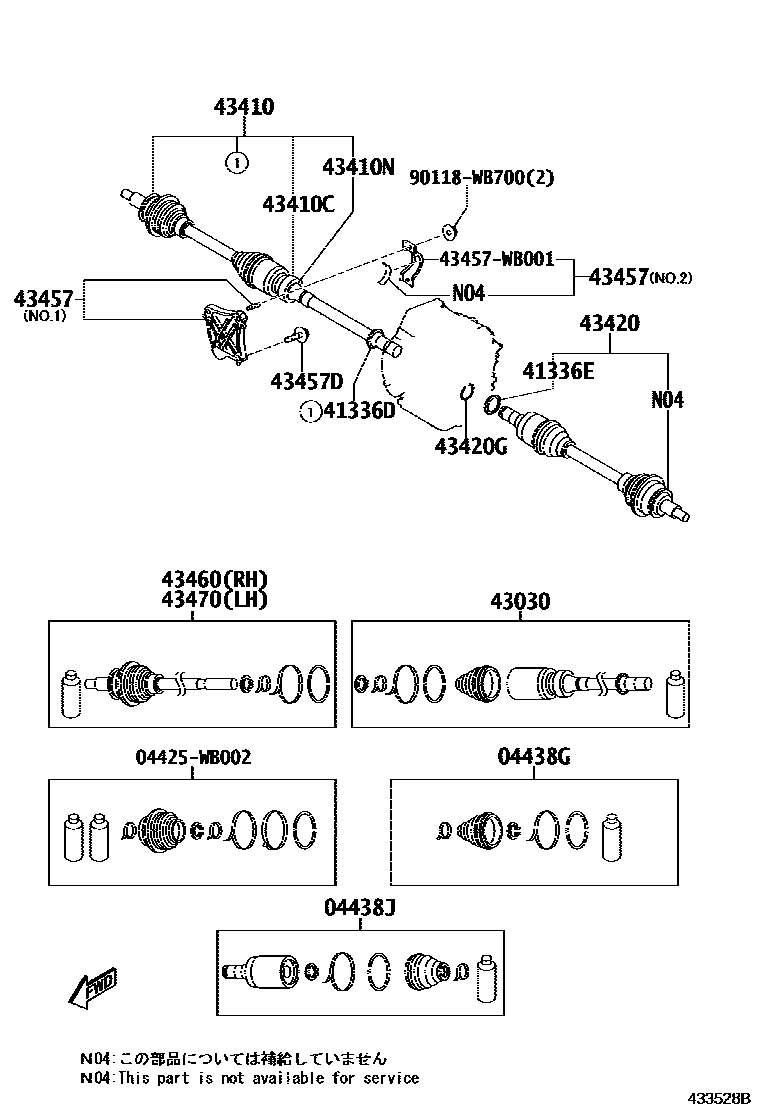

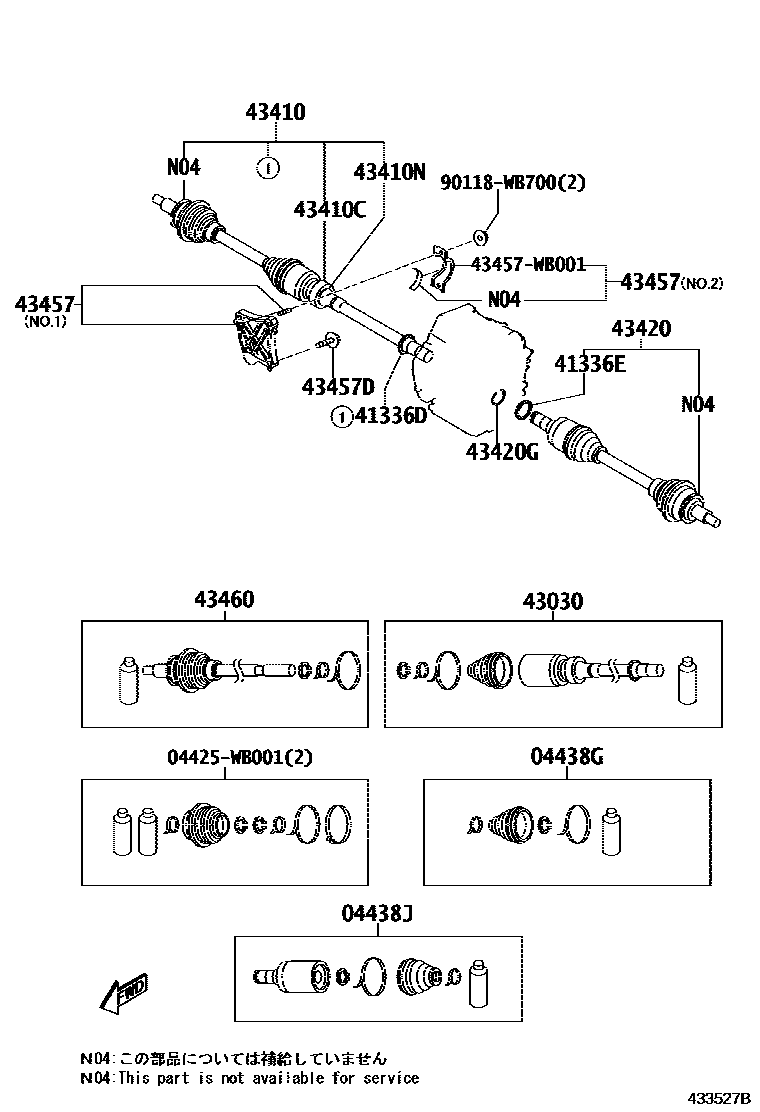

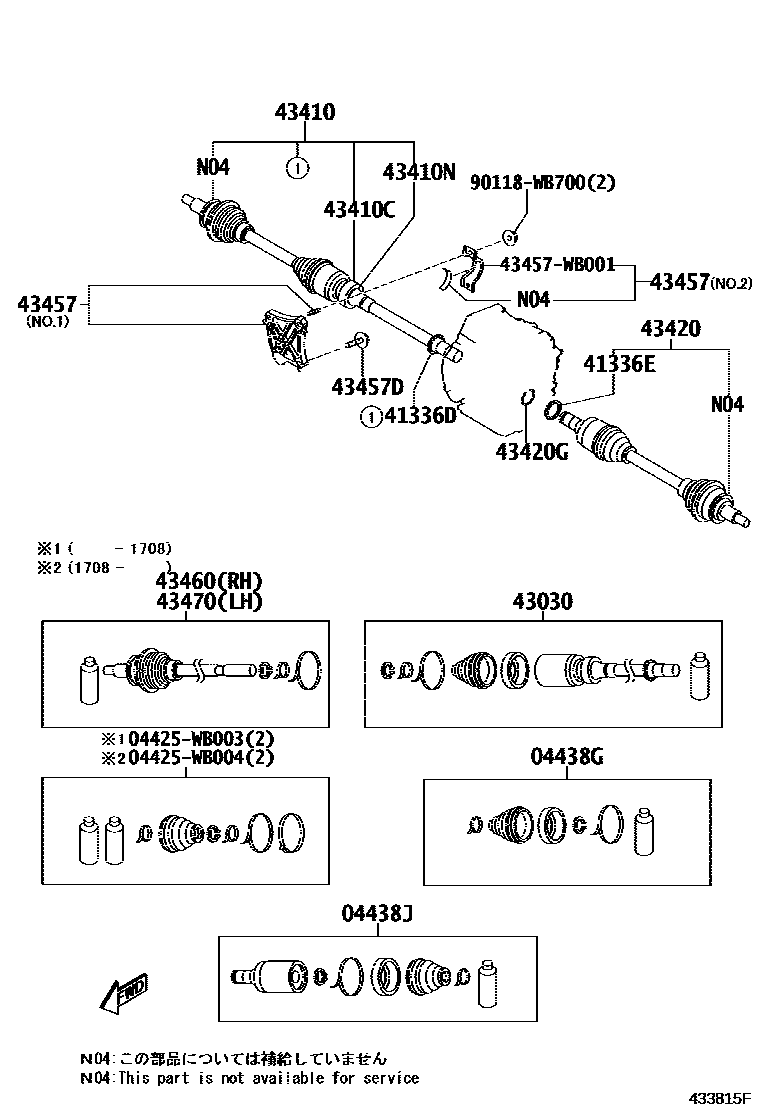

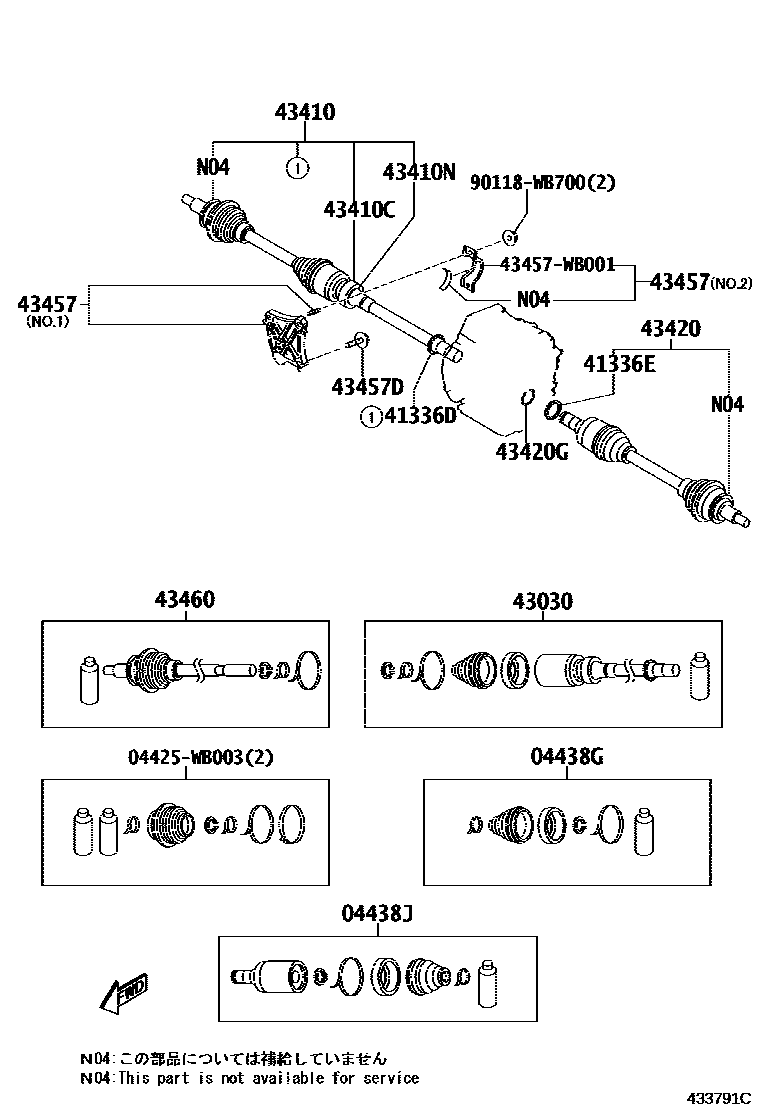

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-WB001 · 04437-WB002 · 04437-WB003 · 04437-WB004 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 43403-WB001 · 43403-WB002 · 43403-WB003 · 43403-WB004 |
| 41336D | Right front driveshaft dust cover | 41336-WB001 |
| 41336E | Left front driveshaft dust cover | 41336-WB001 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-WB001 · 43030-WB002 · 43030-WB003 · 43030-WB004 · 43030-WB005 |
| 43410 | Right front driveshaft assembly | 43410-WB001 · 43410-WB002 · 43410-WB003 · 43410-WB004 · 43410-WB005 · 43410-WB006 · 43410-WB007 |
| 43410C | Bearings (for front driveshaft) | 90118-WB297 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90118-WB294 |
| 43410N | Hole snap ring (for right front driveshaft) | 90118-WB671 |
| 43420 | Left front drive shaft assembly | 43420-WB001 · 43420-WB002 · 43420-WB003 · 43420-WB004 · 43420-WB005 · 43420-WB006 · 43420-WB007 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-WB001 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90118-WB294 |
| 43457 | drive shaft bearing bracket | 43044-WB001 · 43496-WB001 · 43496-WB002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90118-WB586 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-WB001 · 43460-WB002 · 43460-WB003 · 43460-WB004 · 43460-WB005 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-WB001 · 43470-WB002 |
