Toyota YARIS 前桥壳和差速器 — Figure 4301

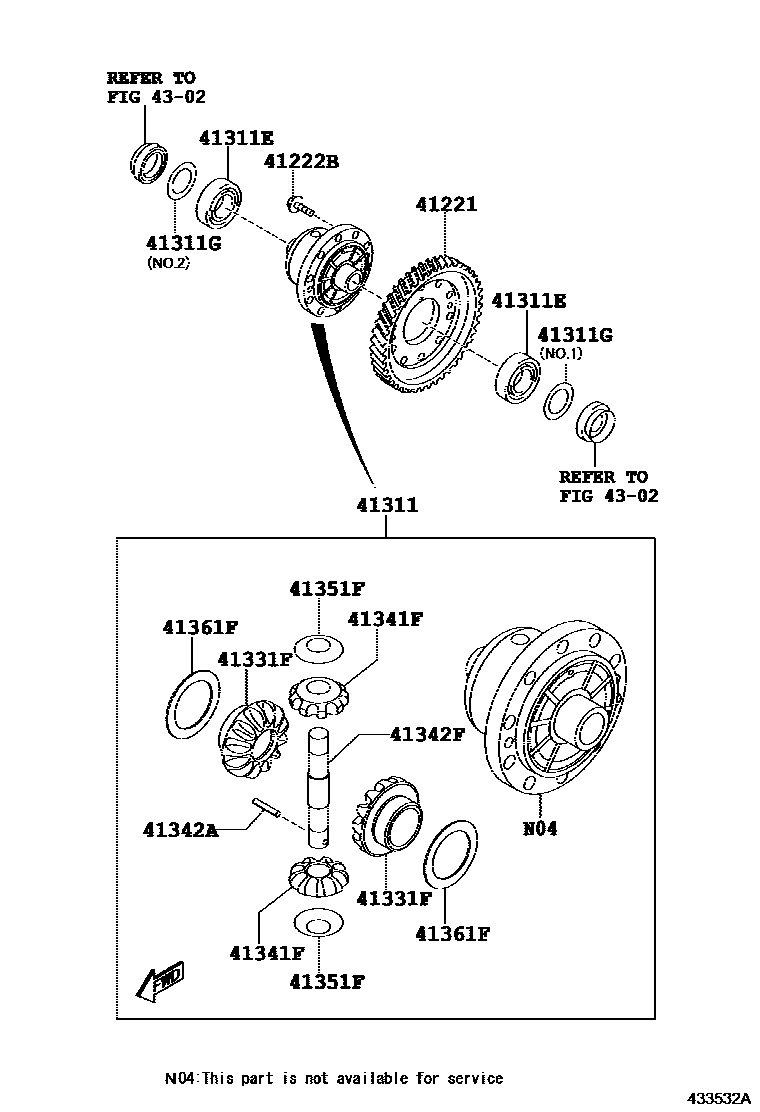

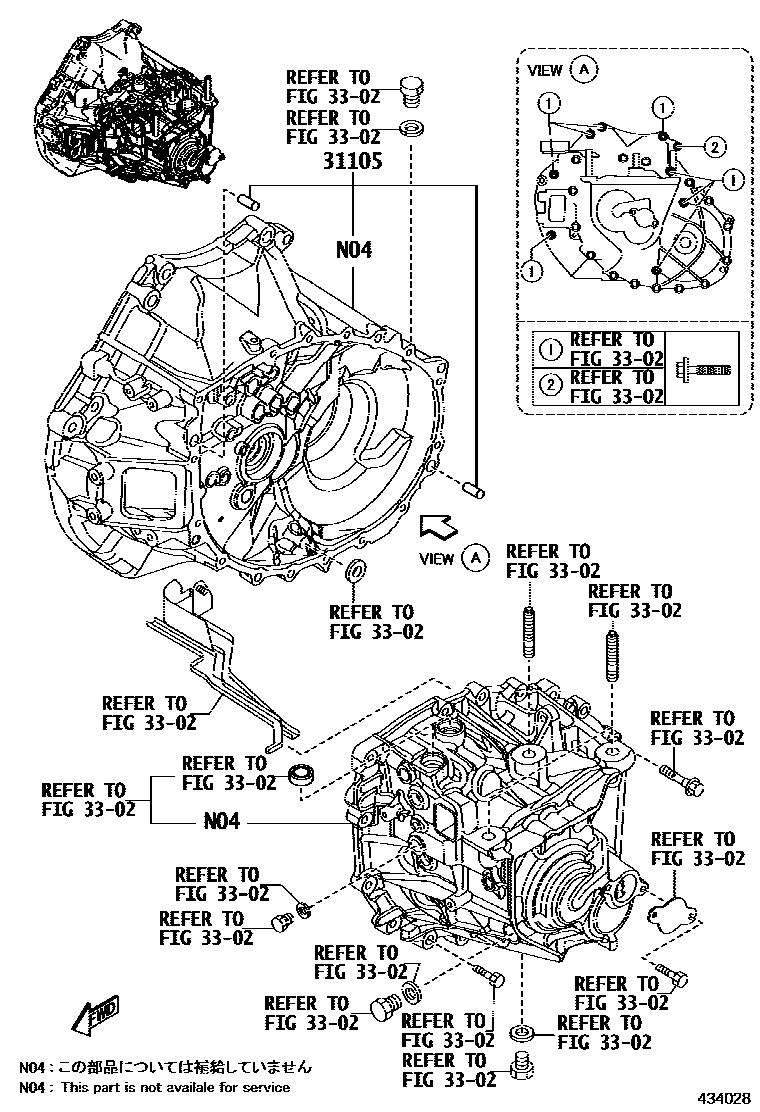

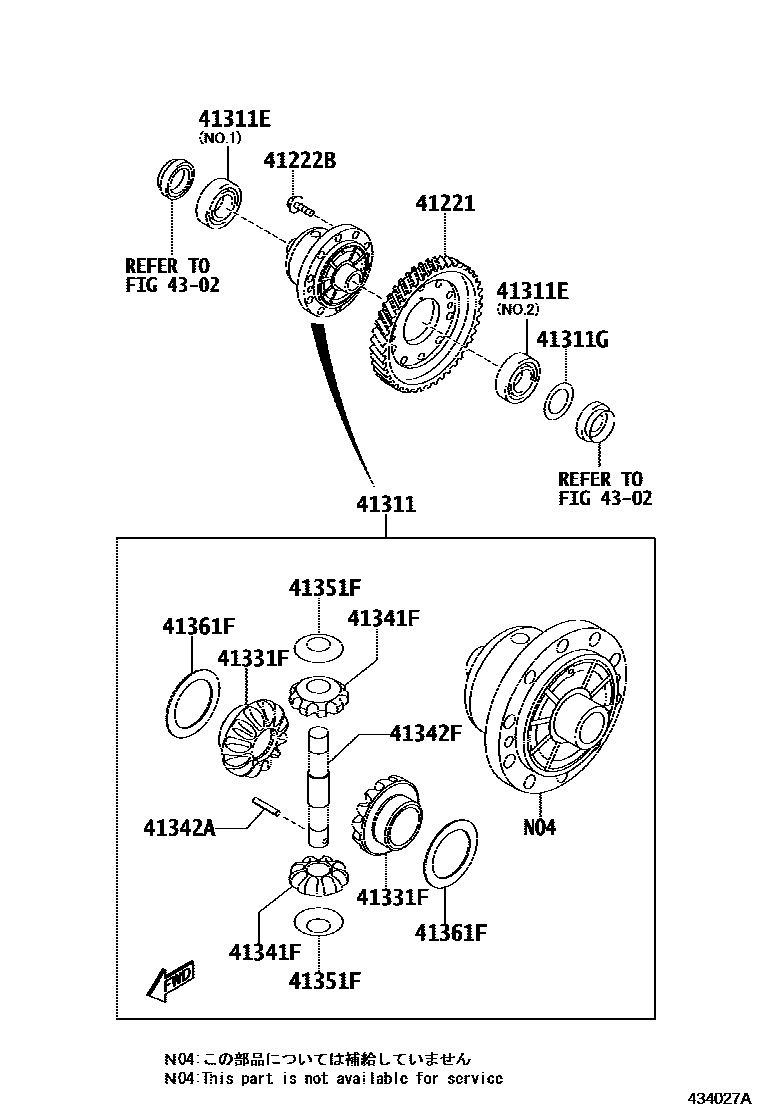

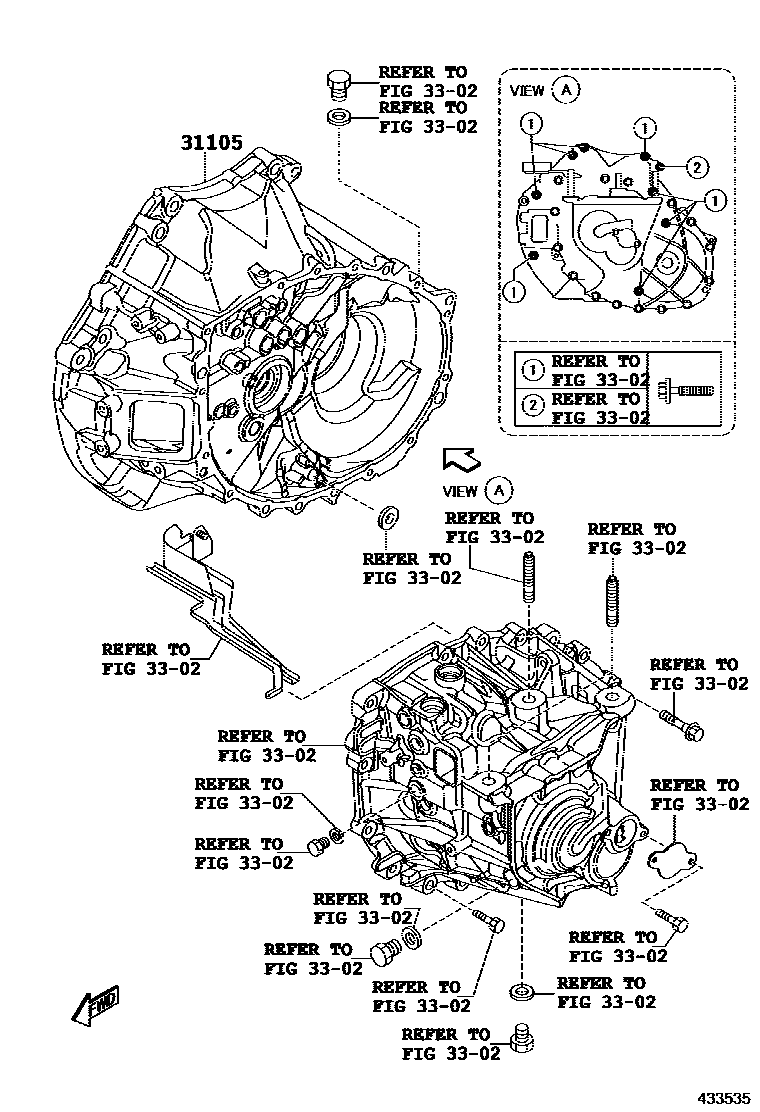

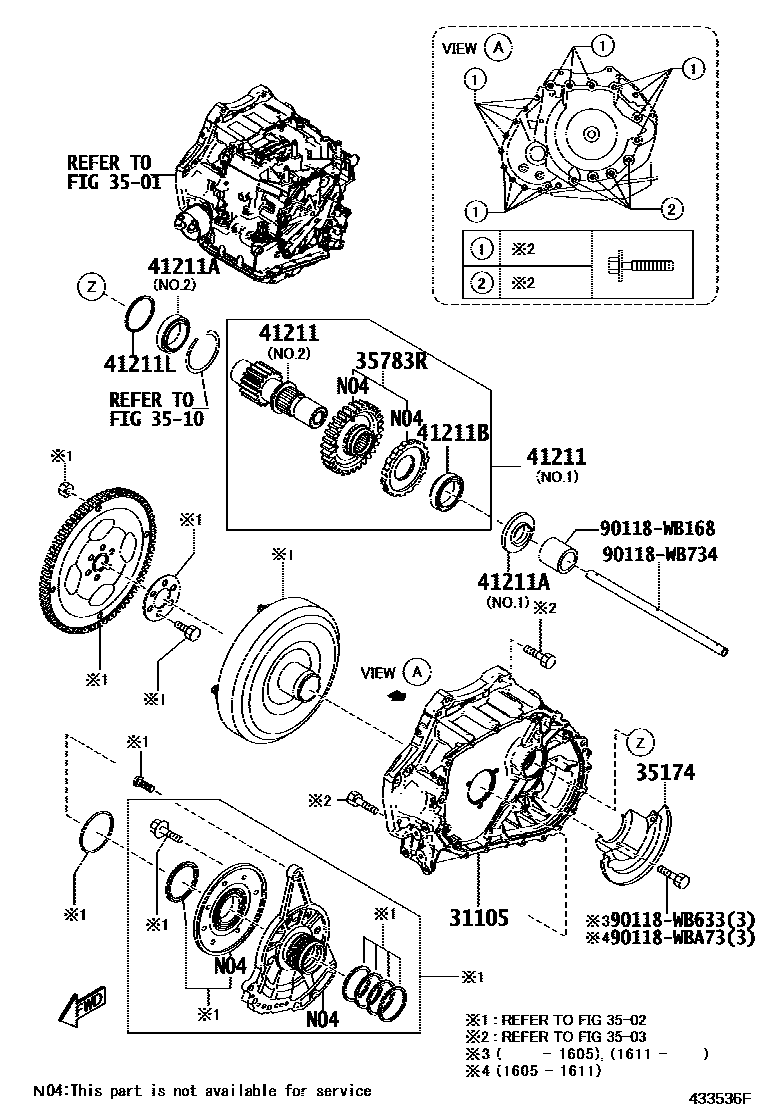

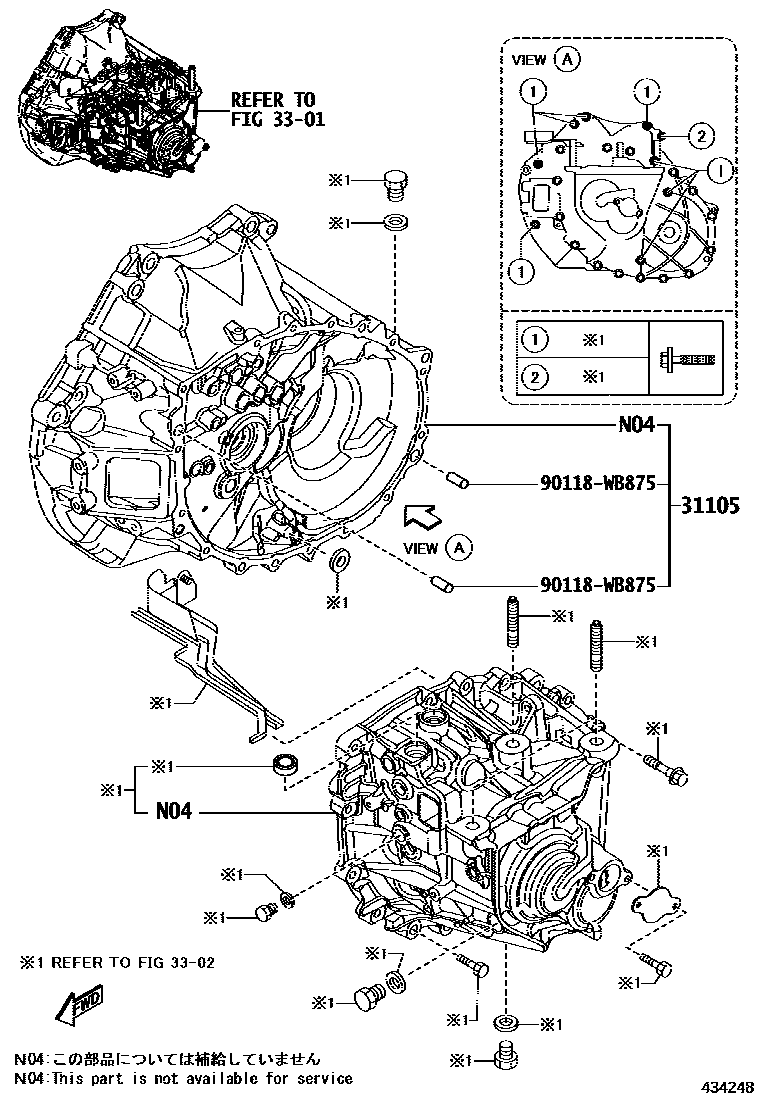

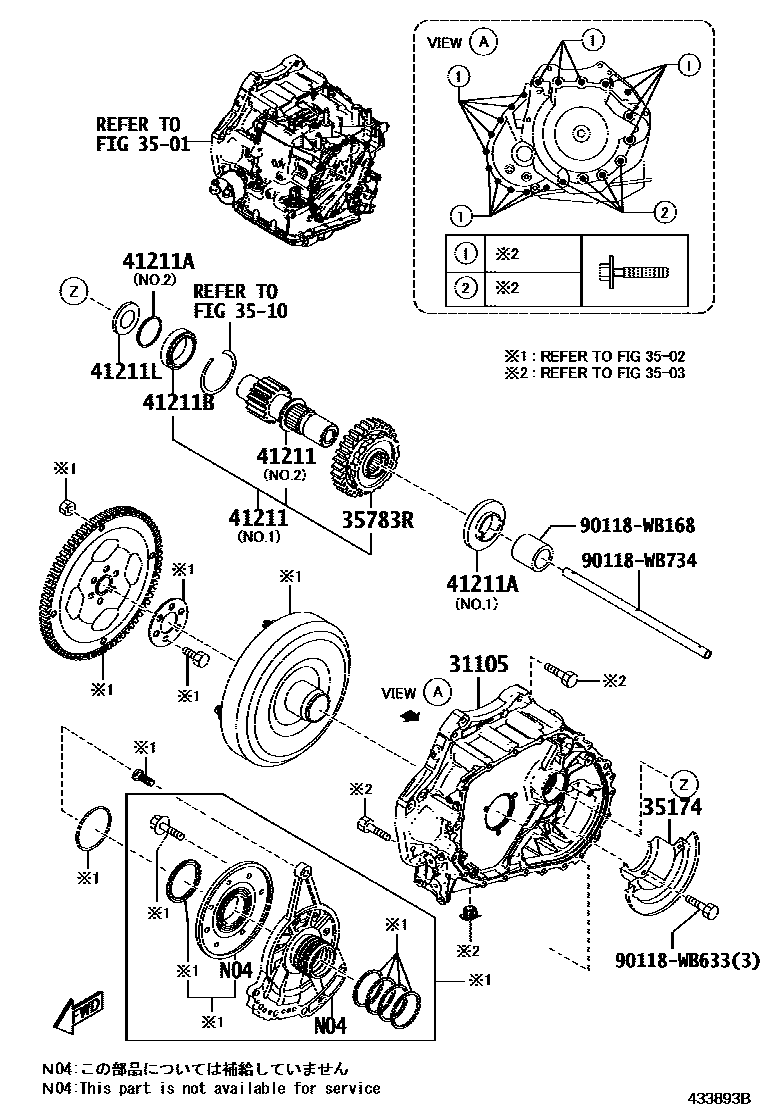

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-WB001 · 31105-WB002 · 31105-WB003 · 31105-WB004 · 31105-WB005 · 35105-WB001 · 35105-WB002 · 35105-WB003 |
| 35174 | Transmission axle housing oil separator | 35174-WB001 |
| 35783R | countershaft driven gear | 35783-WB001 · 35783-WB003 |
| 41211 | Differential drive pinion | 35705-WB001 · 35705-WB002 · 35705-WB003 · 41211-WB001 · 41211-WB002 · 41211-WB003 · 41211-WB004 · 41211-WB005 · 41211-WB006 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90118-WB172 · 90118-WB852 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90118-WB167 |
| 41211L | Spacer (for differential drive pinion) | 90118-WB230 · 90118-WB231 · 90118-WB232 · 90118-WB233 · 90118-WB234 · 90118-WB235 · 90118-WB236 · 90118-WB237 · 90118-WB238 · 90118-WB239 · 90118-WB240 · 90118-WB241 · 90118-WB242 · 90118-WB243 · 90118-WB244 · 90118-WB245 · 90118-WB246 · 90118-WB247 · 90118-WB248 · 90118-WB249 |
| 41221 | Front differential ring gear | 41221-WB001 · 41221-WB002 · 41221-WB003 · 41221-WB004 · 41221-WB005 |
| 41222B | Bolt (for front differential ring gear assembly) | 90118-WB579 · 90118-WBA44 |
| 41311 | front differential case | 41311-WB001 · 41311-WB002 · 41311-WB003 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90118-WB260 · 90118-WB312 · 90118-WB332 |
| 41311G | Front flat washer (for front differential case) | 90118-WB261 · 90118-WB262 · 90118-WB263 · 90118-WB264 · 90118-WB265 · 90118-WB266 · 90118-WB267 · 90118-WB268 · 90118-WB269 · 90118-WB270 · 90118-WB271 · 90118-WB272 · 90118-WB273 · 90118-WB274 · 90118-WB275 · 90118-WB276 · 90118-WB277 · 90118-WB278 · 90118-WB279 · 90118-WB280 · 90118-WB313 · 90118-WB314 · 90118-WB315 · 90118-WB316 · 90118-WB317 · 90118-WB318 · 90118-WB319 · 90118-WB320 · 90118-WB321 · 90118-WB322 · 90118-WB323 · 90118-WB324 · 90118-WB325 · 90118-WB326 · 90118-WB327 · 90118-WB328 · 90118-WB329 |
| 41331F | Front differential side gear | 41331-WB001 |
| 41341F | Front differential planetary gear | 41341-WB001 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90118-WB616 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-WB001 |
| 41351F | Front differential planetary gear thrust washer | 41351-WB001 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-WB001 · 41361-WB002 · 41361-WB003 · 41361-WB004 · 41361-WB005 |
