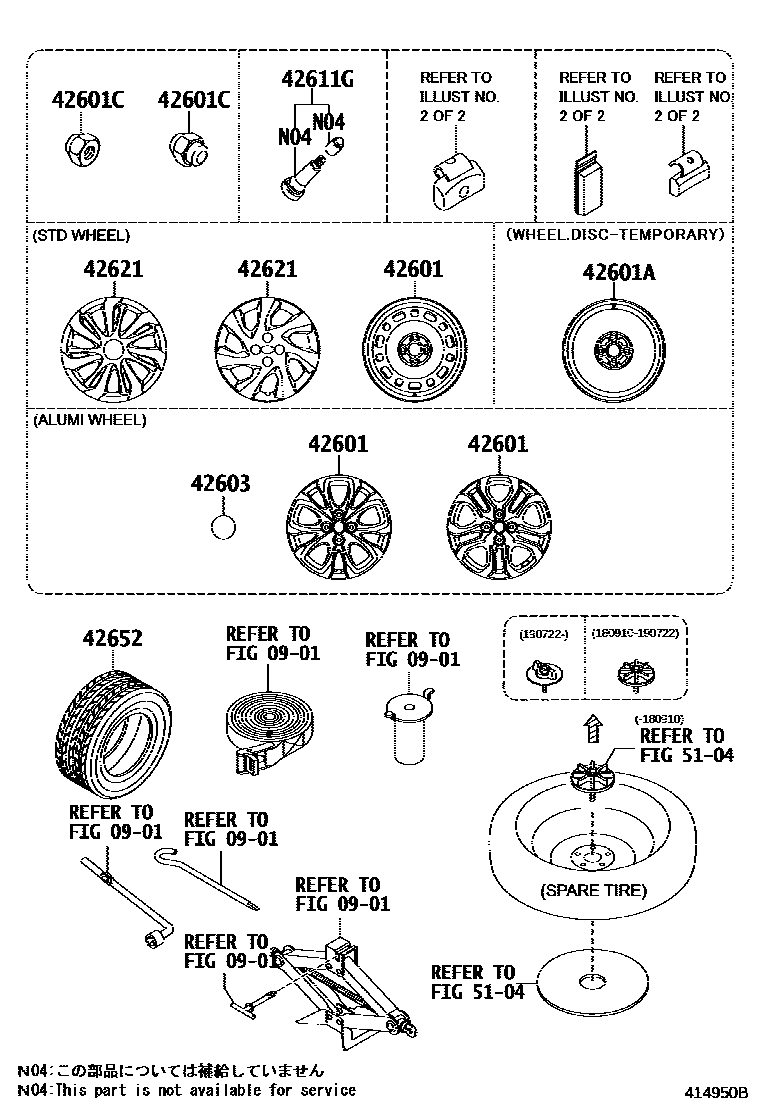

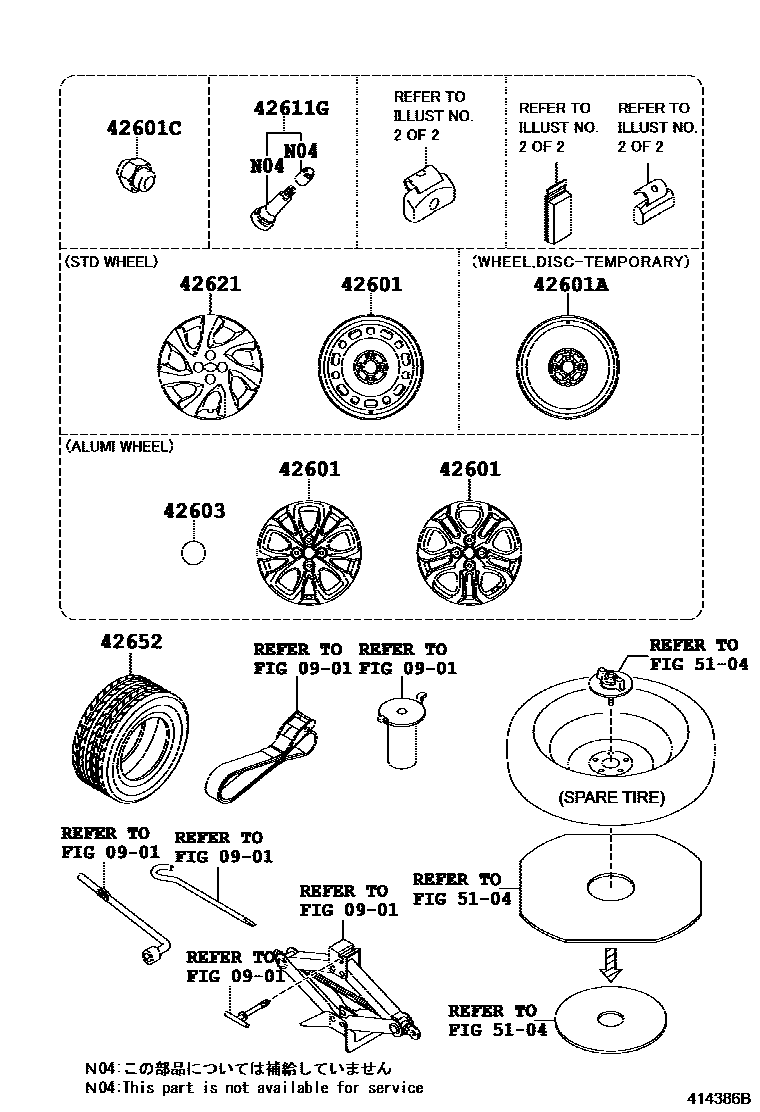

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-WB001 · 42611-WB002 · 42611-WB003 · 42611-WB007 · 42611-WB008 · 42611-WB009 |
| 42601A | Spoke wheel (for spare tire) | 42611-WB005 · 42611-WB006 |
| 42601C | Hub nut (for axle) | 90118-WB031 · 90118-WBB32 · 90118-WBB56 · 90118-WBB57 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-WB001 · 42603-WB002 |
| 42611G | Valve (for tubeless tires) | 90118-WB779 |
| 42621 | wheel cover | 42602-WB001 · 42602-WB002 |
| 42652 | tires | 42652-WB001 · 42652-WB002 · 42652-WB003 · 42652-WB004 · 42652-WB005 · 42652-WB006 |
