Toyota YARIS 变速器油冷却器和配管(ATM) — Figure 3514

Toyota YARIS EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 4 PNC and OE references.

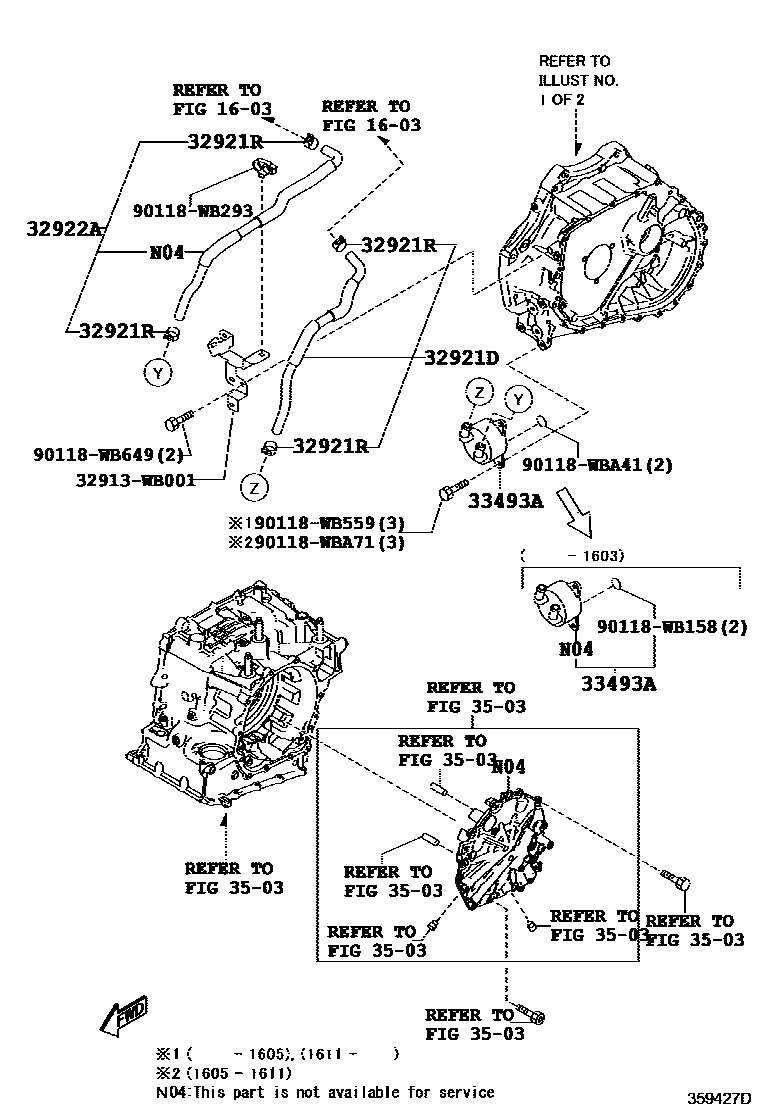

Toyota YARIS 变速器油冷却器和配管(ATM) EPC diagram — 359427D
变速器油冷却器和配管(ATM) — 359427D (201506 – 201908)

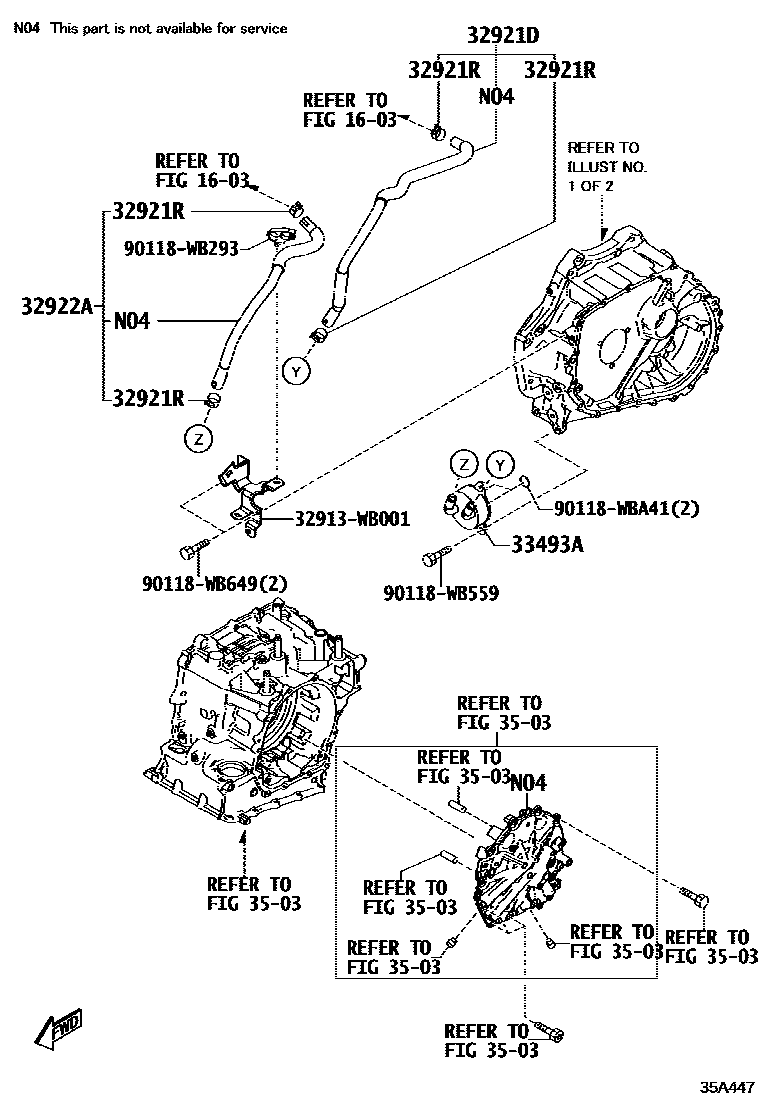

Toyota YARIS 变速器油冷却器和配管(ATM) EPC diagram — 35A447
变速器油冷却器和配管(ATM) — 35A447 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
32921DHose (for transmission oil cooler oil inlet)16264-WB001 · 16264-WB002
32921RClamp No. 2 (for transmission oil cooler hose)90118-WB409 · 90118-WB492
32922AHoses (for transmission oil cooler oil outlet)16261-WB002 · 16261-WB003
33493ATransmission oil cooler33493-WB001 · 33493-WB002 · 33493-WB003
