Toyota YARIS 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

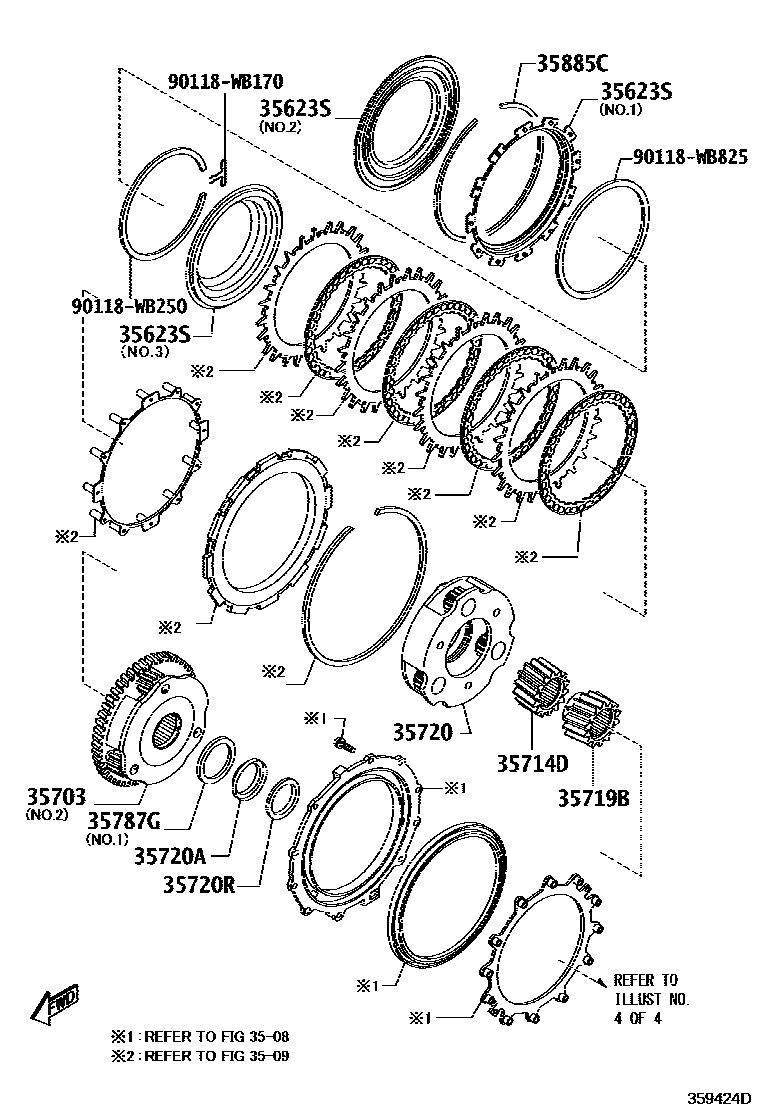

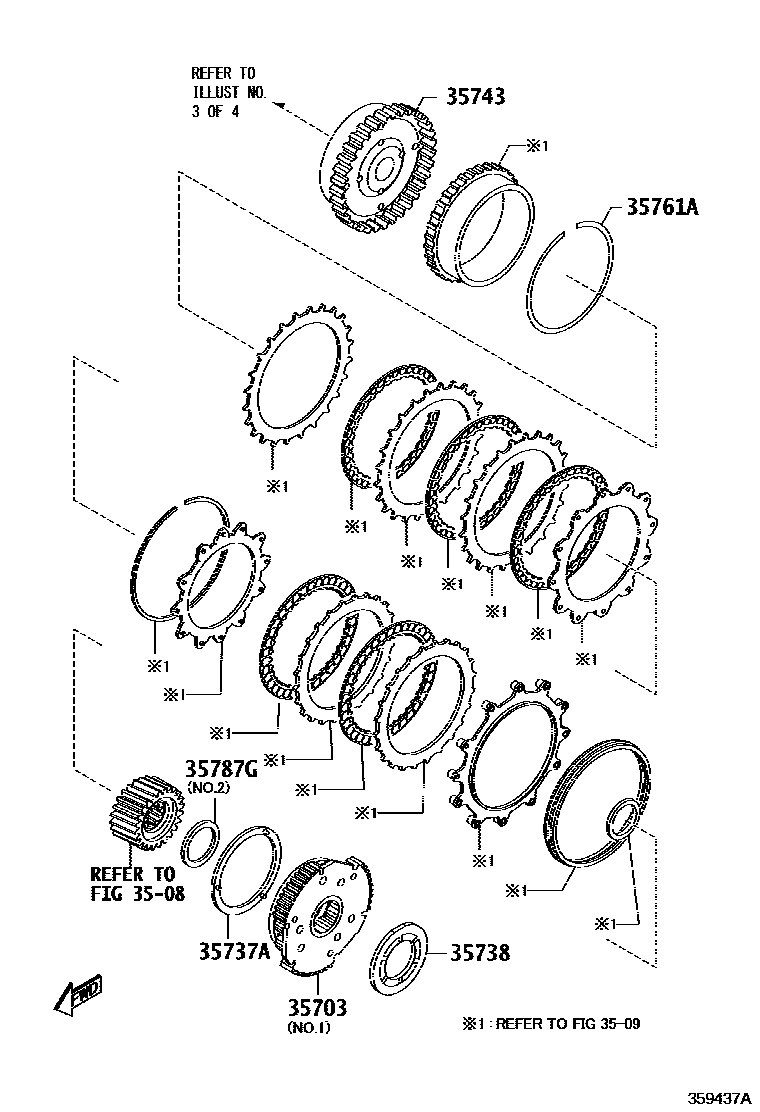

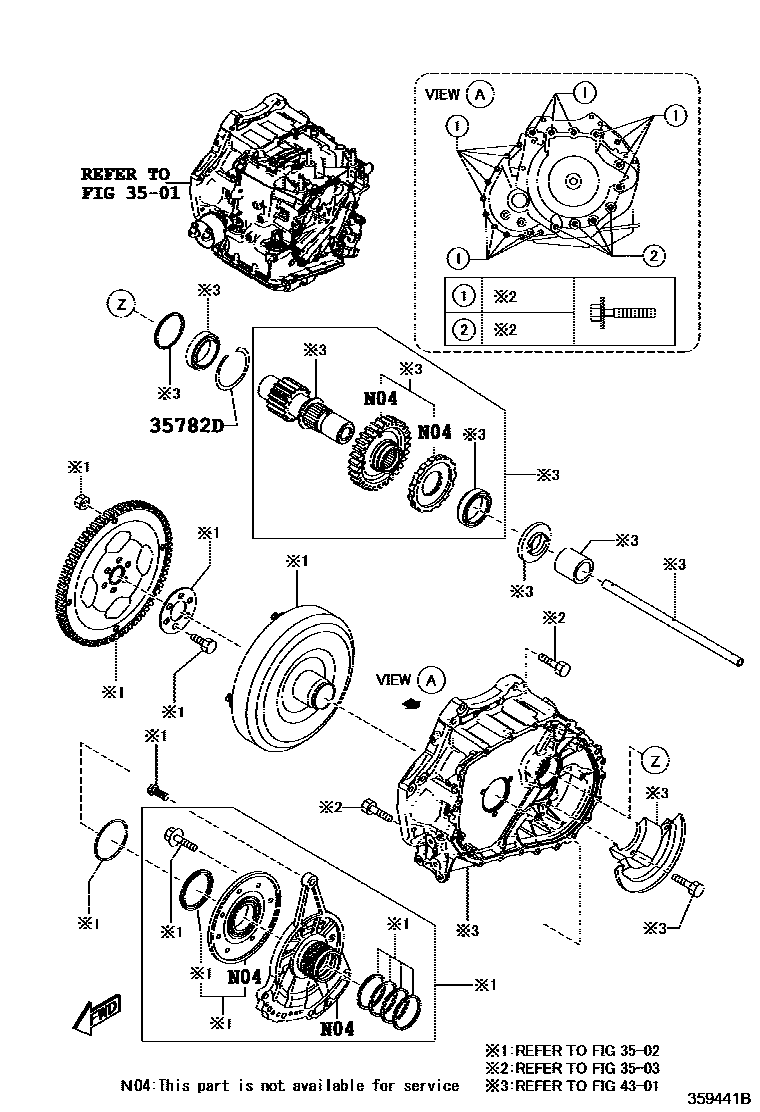

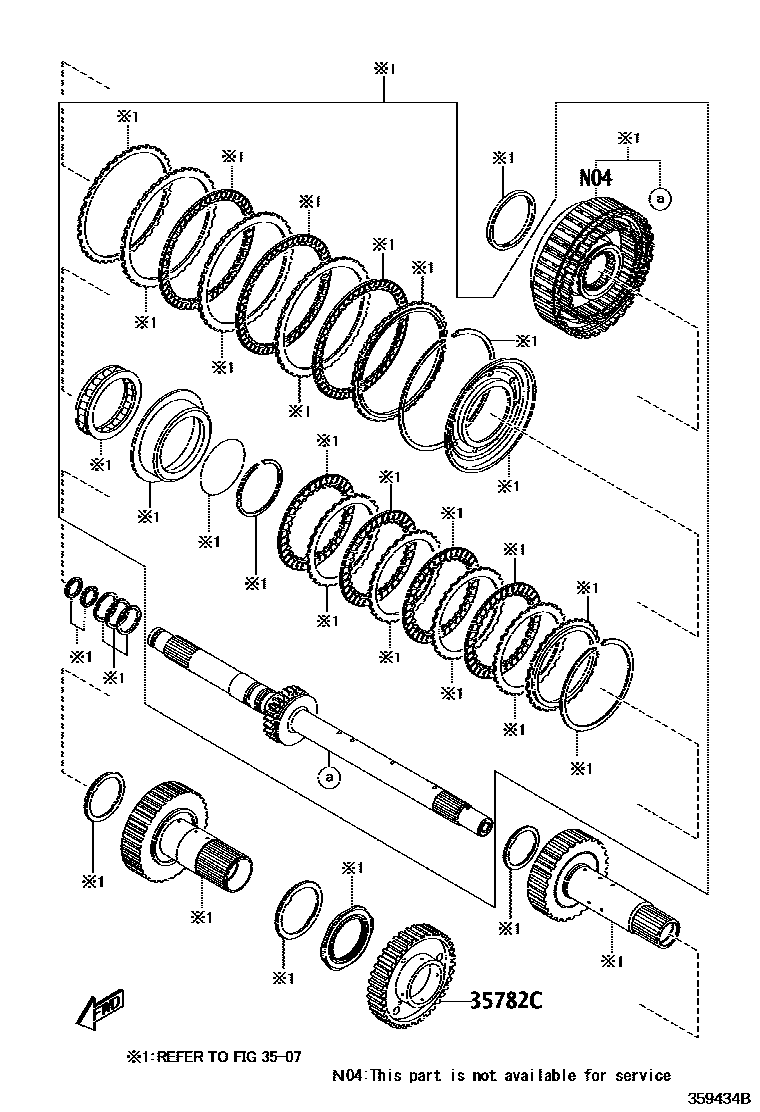

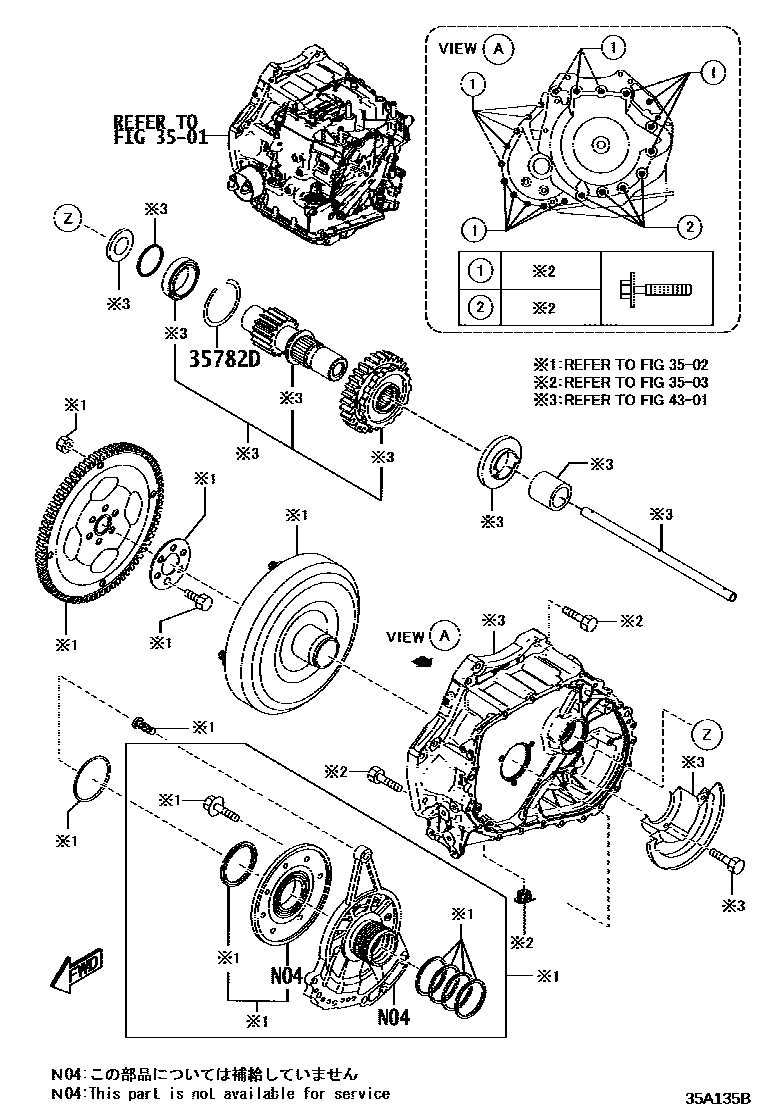

Toyota YARIS EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35623S | First and reverse brake piston | 35623-WB001 · 35623-WB002 · 35623-WB003 |
| 35703 | Planetary gear carrier sub-assembly | 35703-WB001 · 35703-WB002 · 35703-WB003 · 35703-WB004 · 35703-WB005 |
| 35714D | Front planetary gear train sun gear | 35714-WB001 |
| 35719B | planetary gear system sun gear | 35719-WB001 |
| 35720 | Front planetary gear assembly | 35720-WB001 · 35720-WB002 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90118-WB251 |
| 35720R | CALE(POUR PIGNON PLANETAIRE AVANT) | 90118-WB173 · 90118-WB174 · 90118-WB175 · 90118-WB176 · 90118-WB177 · 90118-WB178 · 90118-WB179 · 90118-WB180 · 90118-WB181 · 90118-WB182 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-WB001 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-WB001 |
| 35743 | Front planetary ring gear | 35743-WB001 · 35743-WB002 |
| 35761A | Hole snap ring (for rear planetary ring gear) | 90118-WB169 |
| 35782C | countershaft driving gear | 35782-WB001 · 35782-WB002 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90118-WB217 |
| 35787G | BAGUE, PALIER DE BUTEE, NO.2 | 35787-WB001 · 90118-WB171 |
| 35885C | Hole snap ring (for clutch plate) | 90118-WB198 · 90118-WB199 · 90118-WB200 · 90118-WB201 · 90118-WB202 · 90118-WB203 · 90118-WB204 · 90118-WB205 · 90118-WB206 · 90118-WB207 · 90118-WB208 |
