Toyota YARIS 3号制动器、一档和倒档制动器(ATM) — Figure 3509

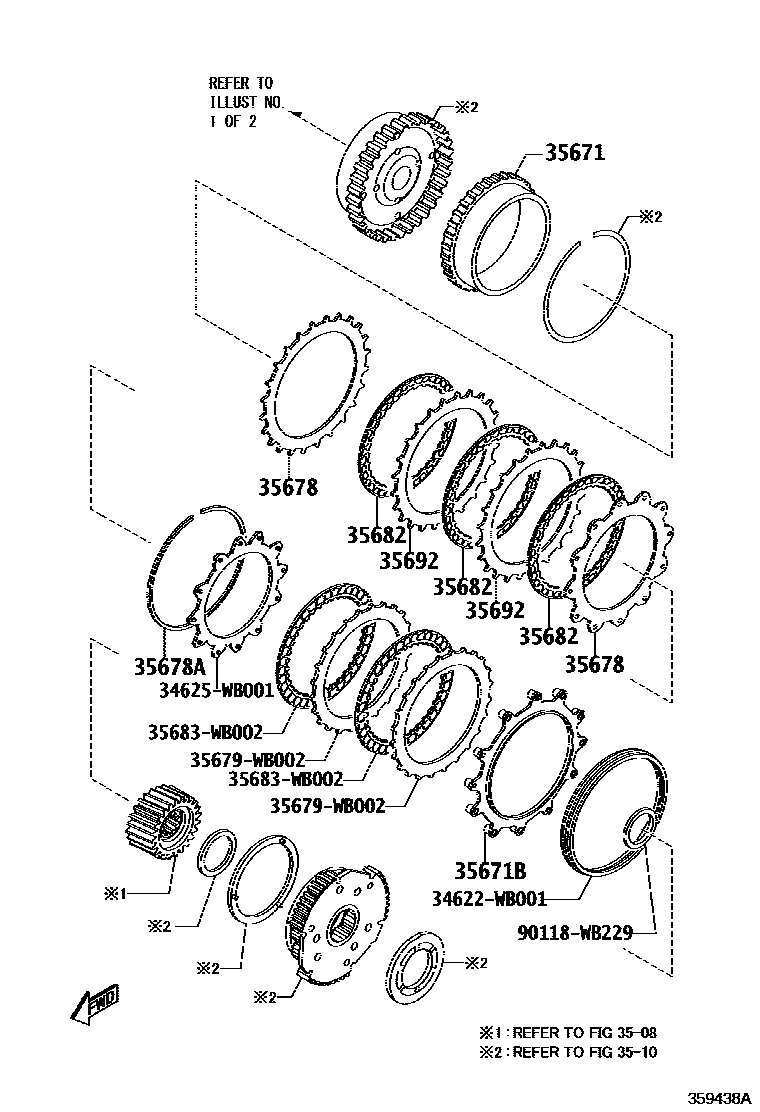

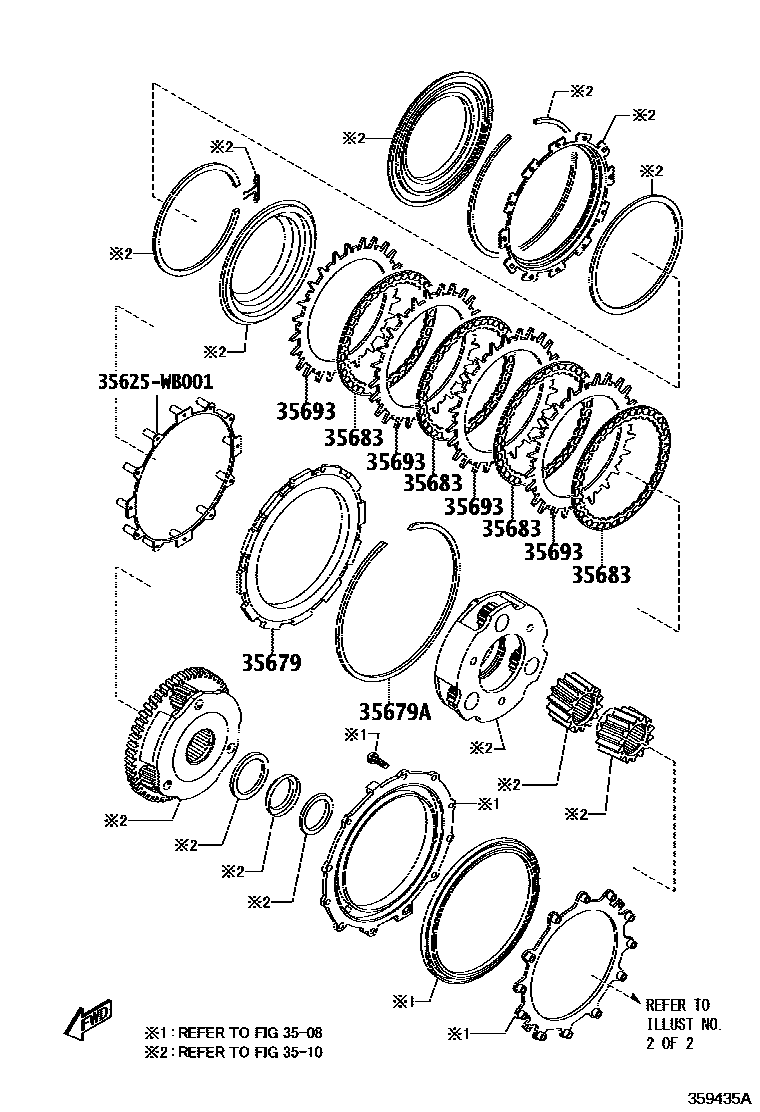

Toyota YARIS EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35671 | brake cushion | 35761-WB001 · 35761-WB002 |
| 35671B | brake piston return spring | 35671-WB001 |
| 35678 | Brake flange (for second gear brake) | 35678-WB001 · 35678-WB002 · 35678-WB003 · 35678-WB004 · 35678-WB005 · 35678-WB006 · 35678-WB007 · 35678-WB008 |
| 35678A | No. 1 brake flange (for second gear brake) | 90118-WB209 · 90118-WB210 · 90118-WB211 · 90118-WB212 · 90118-WB213 · 90118-WB214 · 90118-WB215 · 90118-WB216 |
| 35679 | Brake flange (for first and reverse gears) | 35679-WB001 · 35679-WB003 |
| 35679A | Hole snap ring (for brake flange) | 90118-WB281 · 90118-WB282 · 90118-WB283 · 90118-WB284 · 90118-WB285 · 90118-WB286 · 90118-WB287 · 90118-WB288 · 90118-WB289 · 90118-WB290 |
| 35682 | Brake disc (for second gear brake) | 35682-WB001 |
| 35683 | Brake disc (for first and reverse gears) | 35683-WB001 |
| 35692 | Brake pads (for second gear brake) | 35692-WB001 |
| 35693 | Brake pads (for first and reverse gears) | 35693-WB001 |
