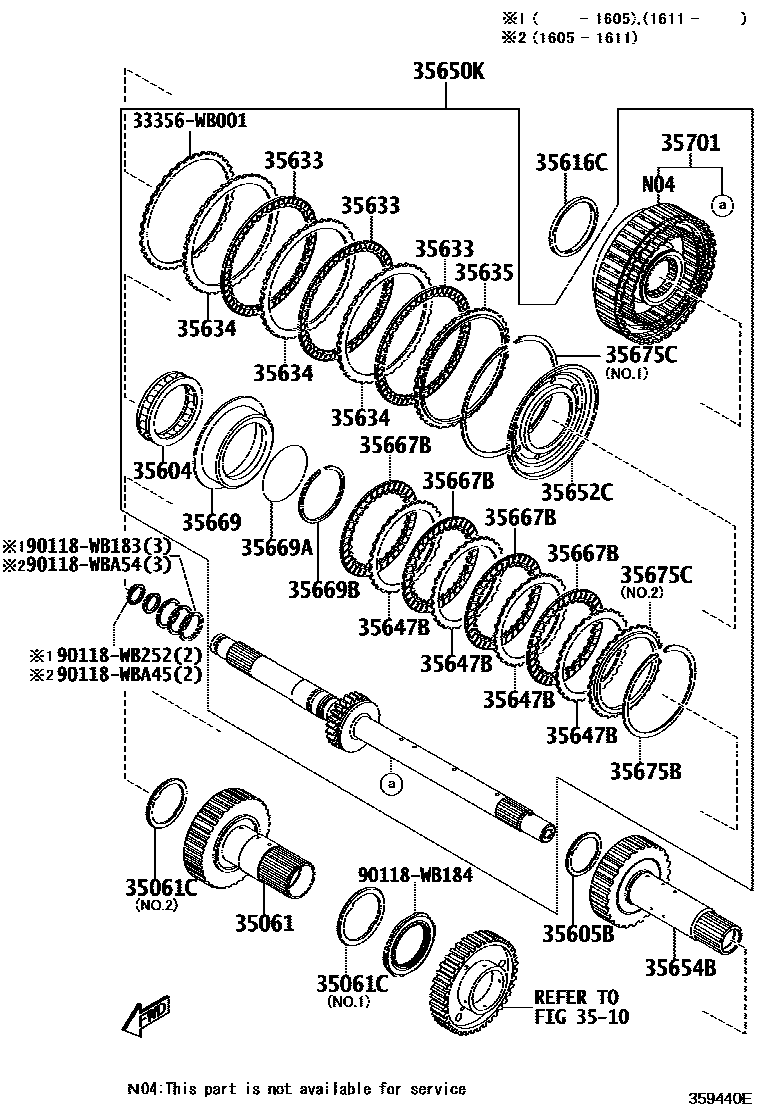

Toyota YARIS 制动带和多片式离合器(ATM) — Figure 3507
Toyota YARIS EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35061 | Forward gear clutch hub sub-assembly | 35061-WB001 · 35061-WB002 |
| 35061C | Thrust needle roller bearing (for forward clutch hub) | 90118-WB195 · 90118-WB196 |
| 35604 | Direct clutch return spring sub-assembly | 35604-WB001 |
| 35605B | Thrust needle roller bearing | 90118-WB197 |
| 35616C | Clutch drum thrust washer (for direct gear clutch drum) | 35616-WB001 |
| 35633 | Clutch disc (for front clutch) | 35633-WB001 |
| 35634 | front clutch plate | 35634-WB001 |
| 35635 | forward clutch flange | 35635-WB001 · 35635-WB002 |
| 35647B | Clutch plate No. 2 | 35647-WB001 |
| 35650K | ENS. EMBRAYAGE, DISQUE MULTIPLE DIRECT | 35650-WB001 · 35650-WB002 · 35650-WB003 · 35650-WB004 |
| 35652C | direct clutch piston | 35652-WB001 |
| 35654B | Direct clutch hub | 35062-WB001 · 35062-WB002 |
| 35667B | No. 2 clutch disc | 35667-WB001 |
| 35669 | No. 2 clutch balancer | 35669-WB001 |
| 35669A | O-ring (for No. 2 clutch balancer) | 90118-WB228 |
| 35669B | Snap ring (for clutch balancer) | 90118-WB291 |
| 35675B | Hole snap ring (for forward clutch flange) | 90118-WB185 · 90118-WB186 · 90118-WB187 · 90118-WB188 · 90118-WB189 · 90118-WB190 · 90118-WB191 · 90118-WB192 · 90118-WB193 · 90118-WB194 |
| 35675C | Direct clutch flange | 35675-WB001 · 35675-WB002 · 90118-WB218 · 90118-WB219 · 90118-WB220 · 90118-WB221 · 90118-WB222 · 90118-WB223 · 90118-WB224 · 90118-WB225 · 90118-WB226 · 90118-WB227 |
| 35701 | Input shaft sub-assembly | 35701-WB001 · 35701-WB002 · 35701-WB003 · 35701-WB004 |
