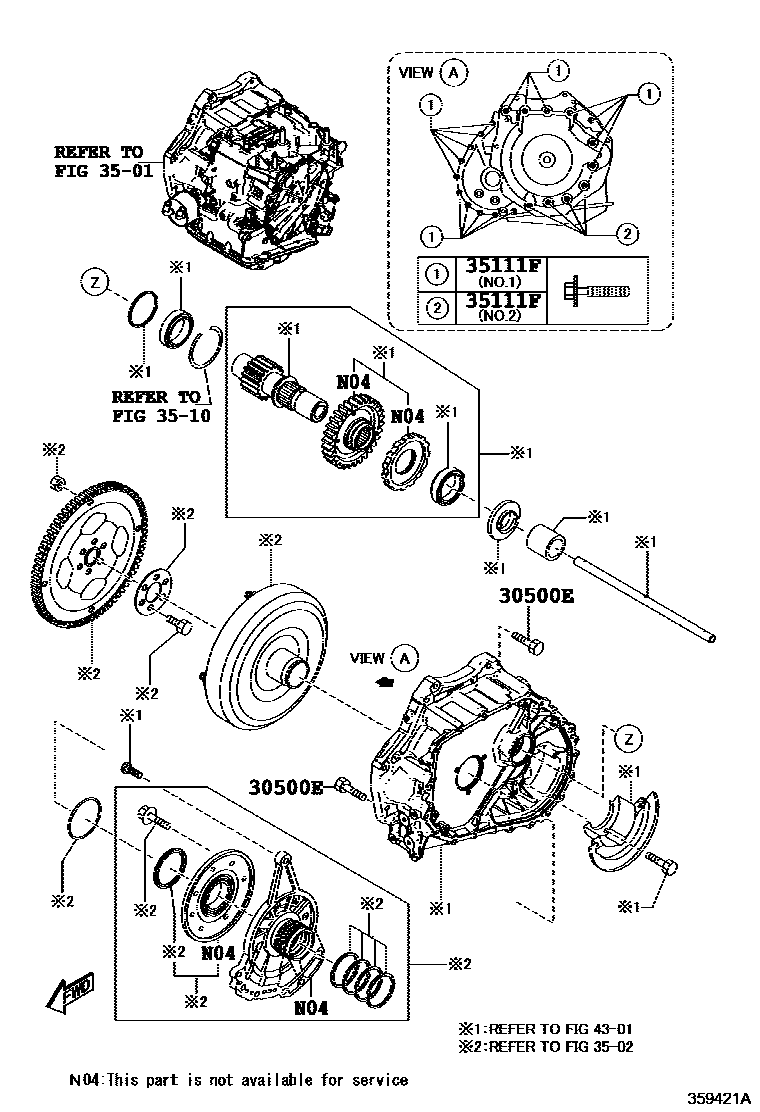

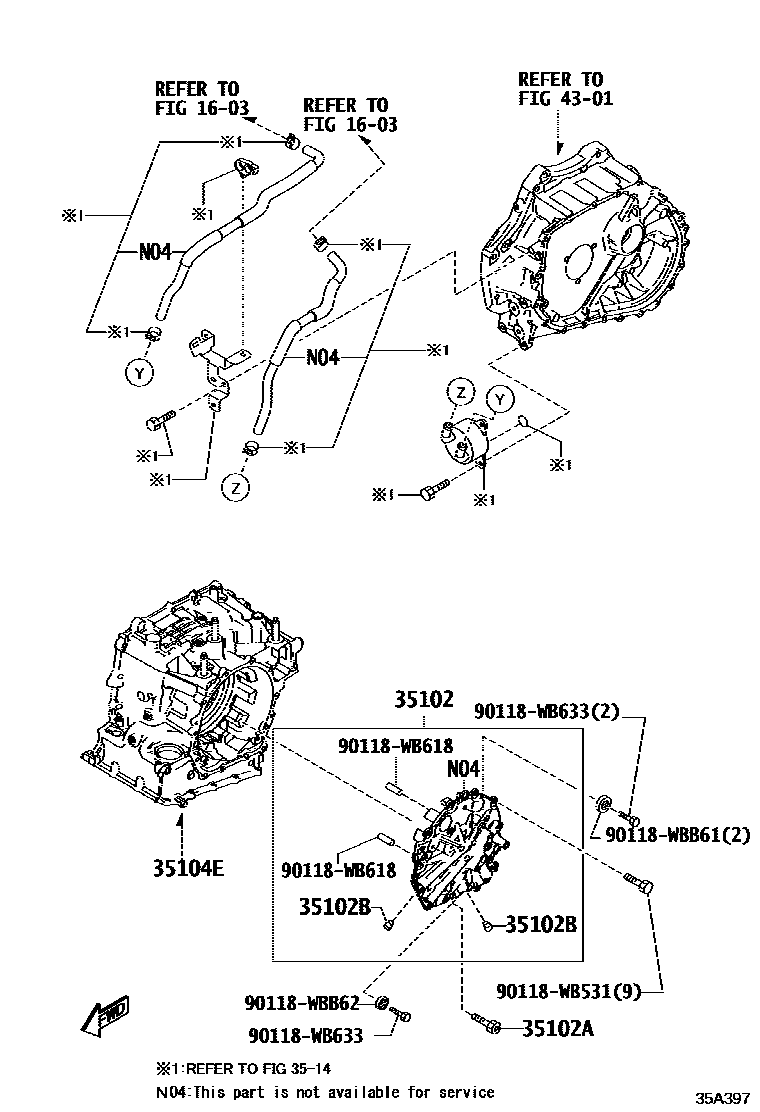

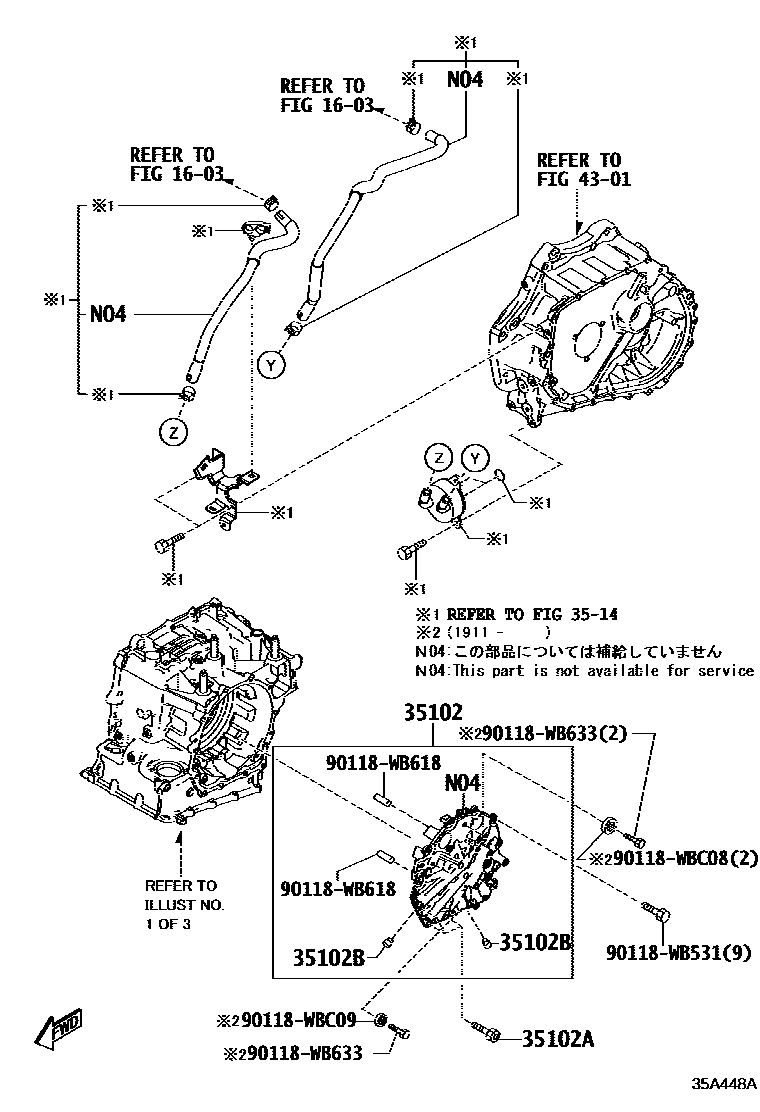

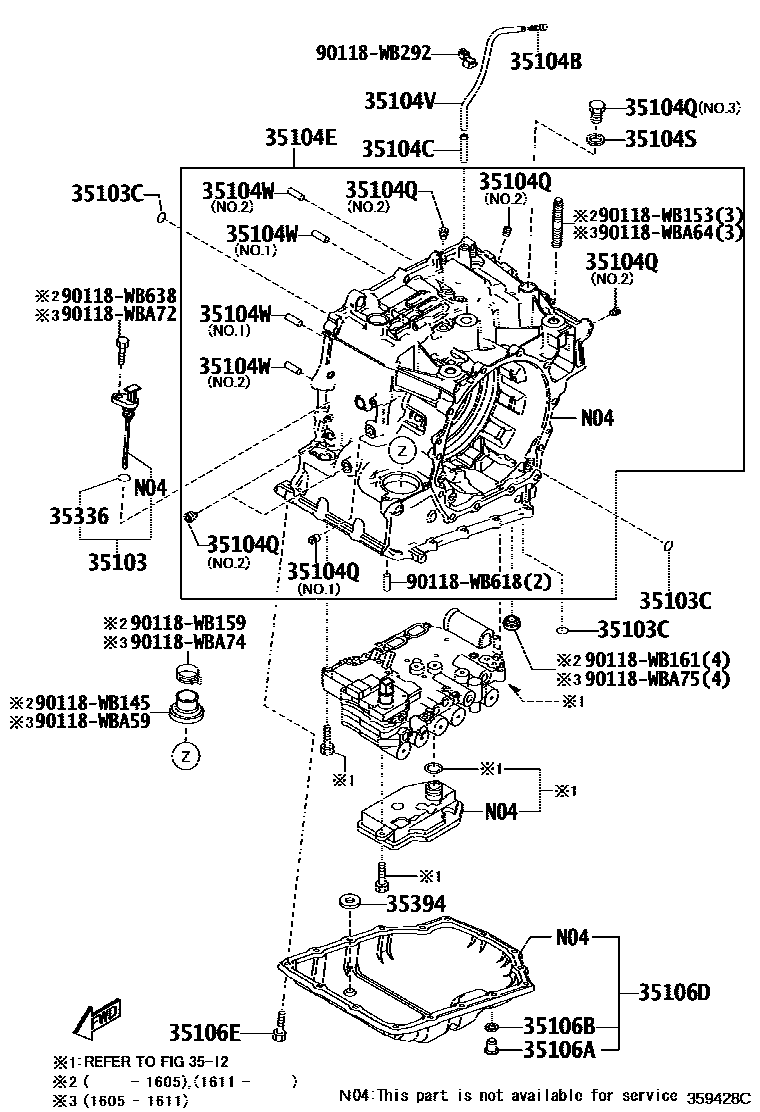

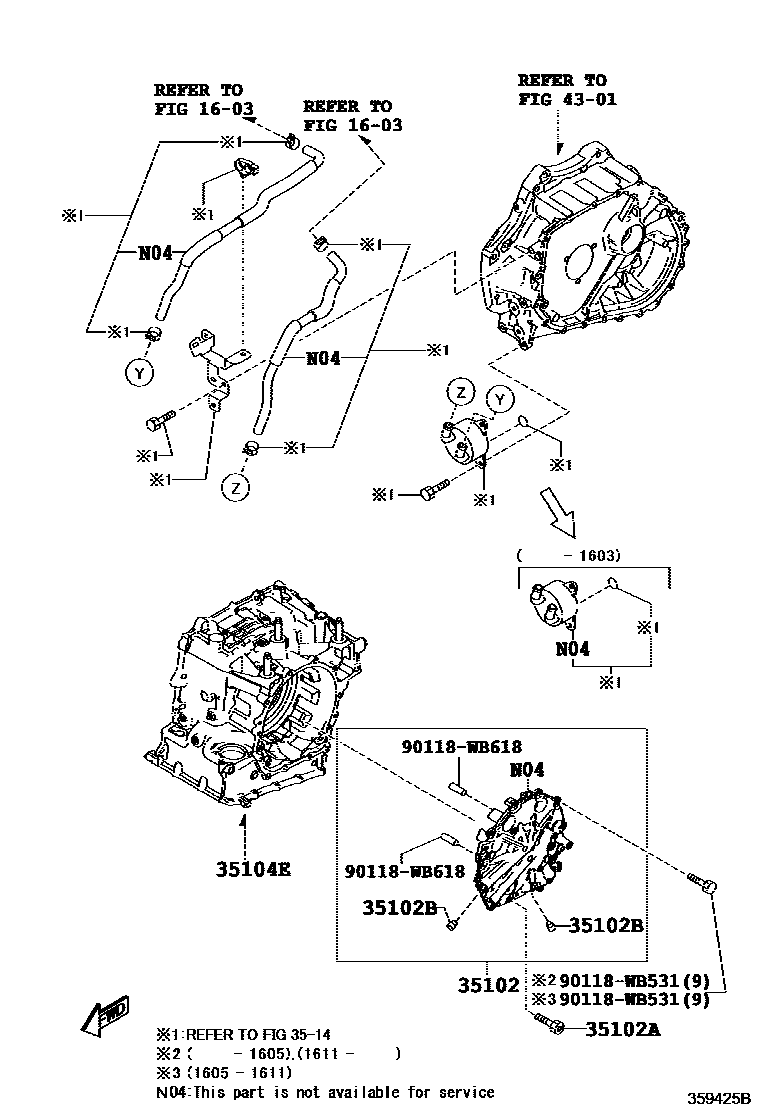

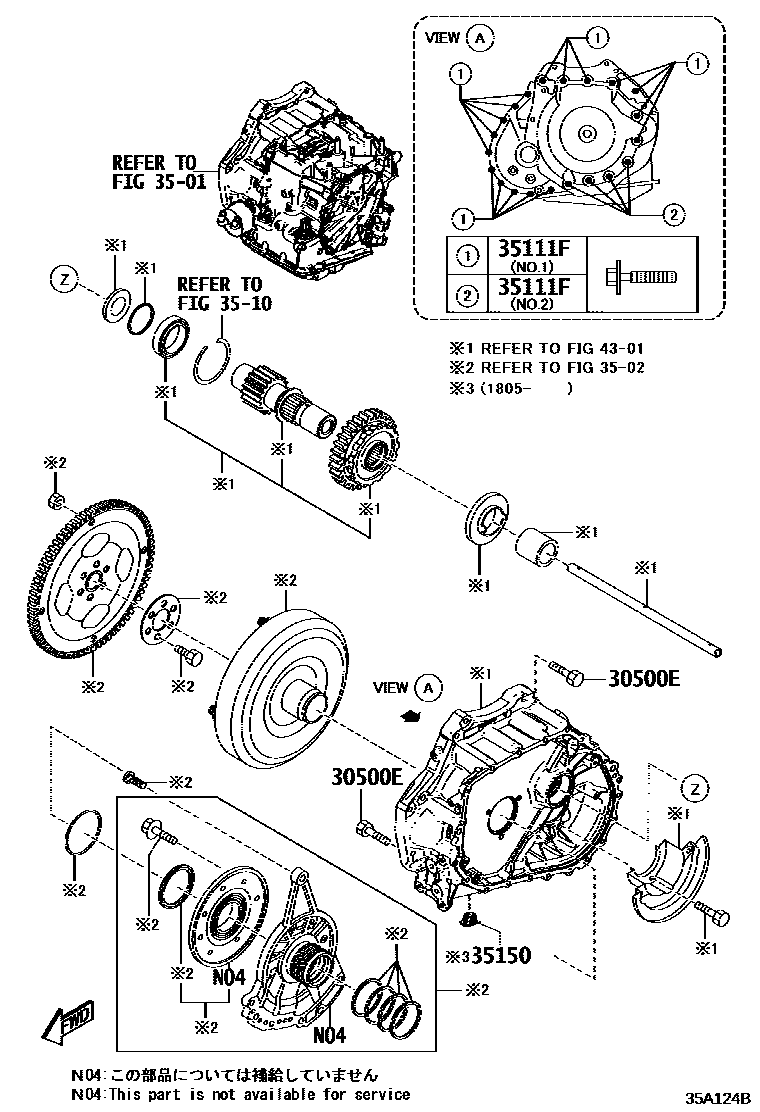

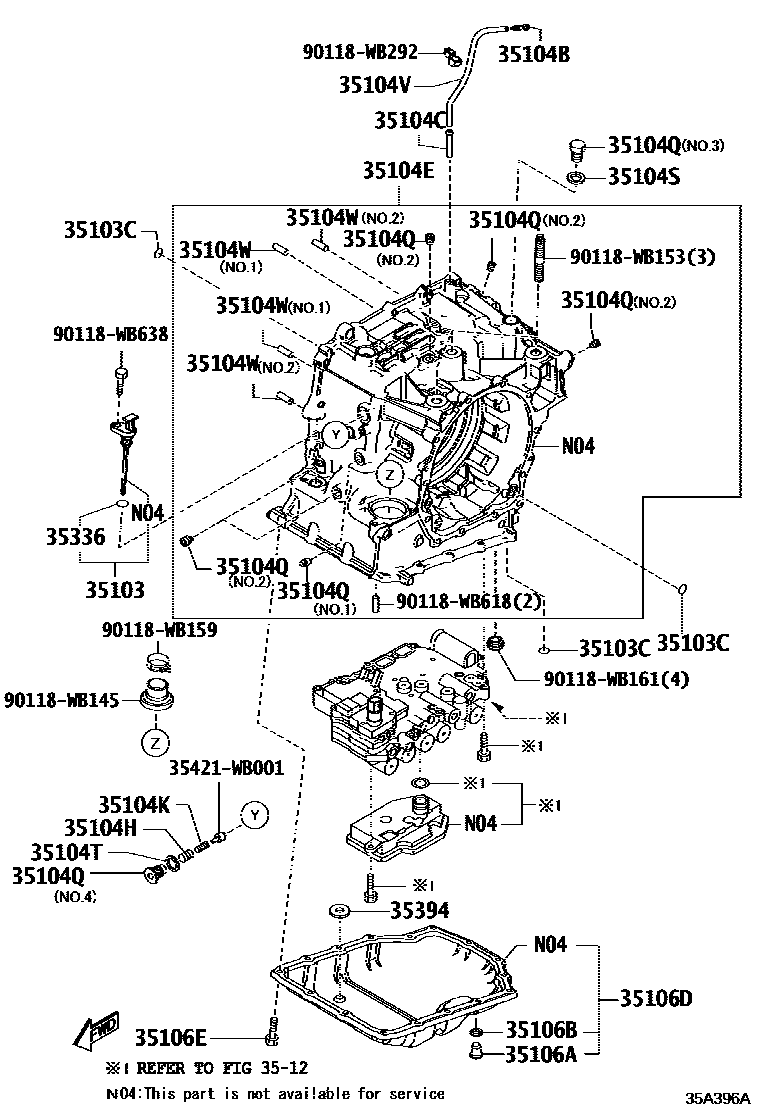

Toyota YARIS 变速器壳和油底壳(ATM) — Figure 3503
Toyota YARIS EPC diagram 3503, 变速器壳和油底壳(ATM), with 7 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90118-WB577 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-WB001 · 35102-WB002 · 35102-WB003 · 35102-WB004 · 35102-WB005 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90118-WB155 · 90118-WBA66 |
| 35102B | Screw plug (for transmission axle rear cover) | 90118-WB143 |
| 35103 | Transmission oil level scoring assembly | 35103-WB001 · 35103-WB002 |
| 35103C | O-ring | 90118-WB154 · 90118-WBA65 |
| 35104B | Ventilation plug No. 1 (ATM) | 90118-WB144 |
| 35104C | Ventilation plug No. 2 (ATM) | 90118-WB259 |
| 35104E | Automatic transmission axle housing sub-assembly | 35141-WB001 · 35141-WB002 · 35141-WB003 |
| 35104H | Torsion spring (for automatic transmission axle housing) | 90118-WBB63 |
| 35104K | Transmission axle housing compression spring | 90118-WBB64 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90118-WB141 · 90118-WB143 · 90118-WB151 · 90118-WBB60 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90118-WB670 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90118-WB667 |
| 35104V | Hoses (for breather plug) | 35121-WB001 |
| 35104W | Direct sales (for transmission axle housing) | 90118-WB621 · 90118-WB623 |
| 35106A | Drain plug sub-assembly (ATM) | 90118-WB139 |
| 35106B | Drain plug gasket (ATM) | 90118-WB669 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-WB001 · 35106-WB002 · 35106-WB003 |
| 35106E | Bolts (for transaxle oil pan) | 90118-WB537 · 90118-WBA70 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90118-WB147 · 90118-WB150 · 90118-WBA60 · 90118-WBA62 |
| 35150 | gearbox plug assembly | 35150-WB001 |
| 35336 | O-ring (for transmission filler pipe) | 90118-WB140 |
| 35394 | Oil filter magnet (for transmission) | 35394-WB002 |
