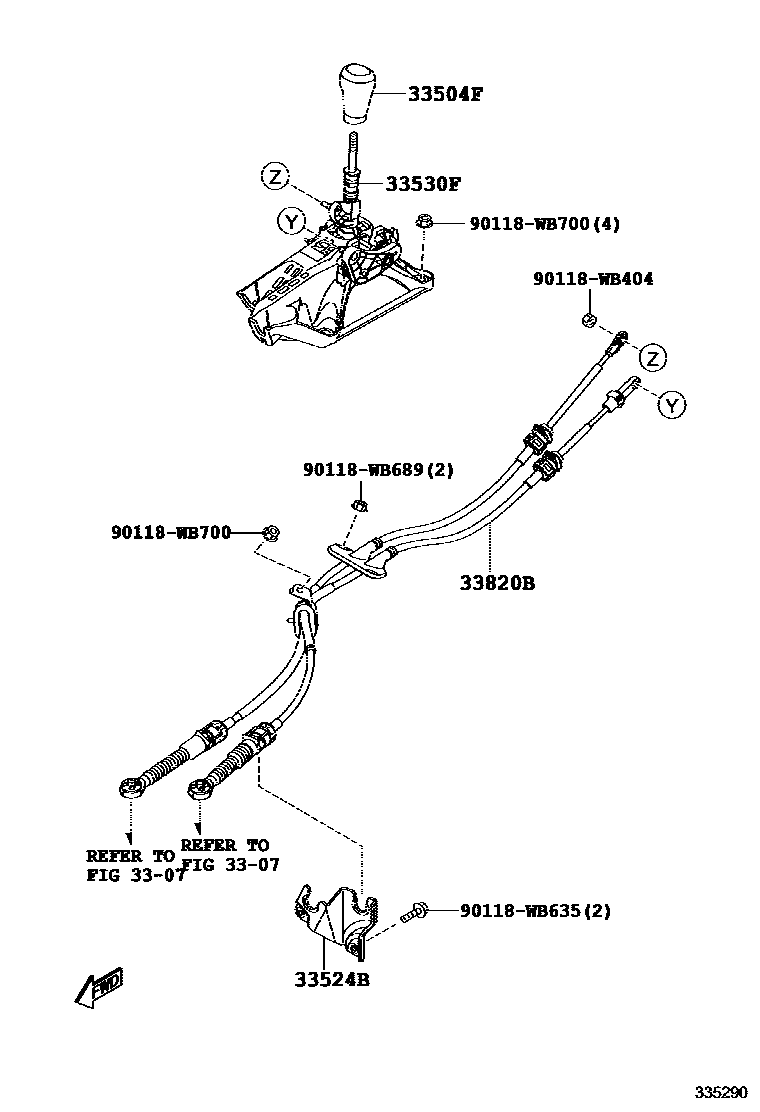

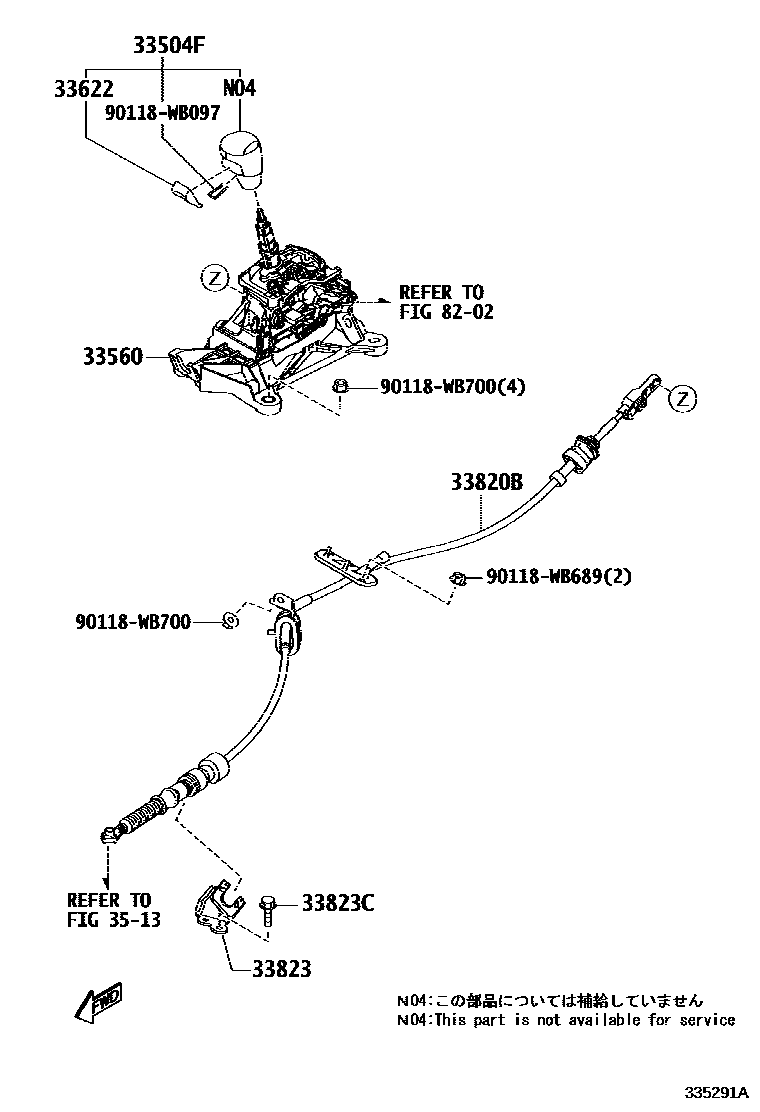

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33504-WB001 · 33504-WB003 · 33504-WB004 · 33504-WB005 · 33504-WB006 |
| 33524B | Control cable bracket | 335A0-WB001 |
| 33530F | Shift lever assembly (for floor shift) | 33530-WB001 · 33530-WB003 |
| 33560 | Shift lock control unit assembly | 33530-WB002 · 33530-WB004 |
| 33622 | No. 1 shift lever handle cover | 33622-WB001 · 33622-WB002 |
| 33820B | Transmission control cable assembly | 33820-WB001 · 33820-WB002 |
| 33823 | No. 1 transmission control cable bracket | 33823-WB001 |
| 33823C | Bolt (for transmission control cable bracket) | 90118-WB634 |
