Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307

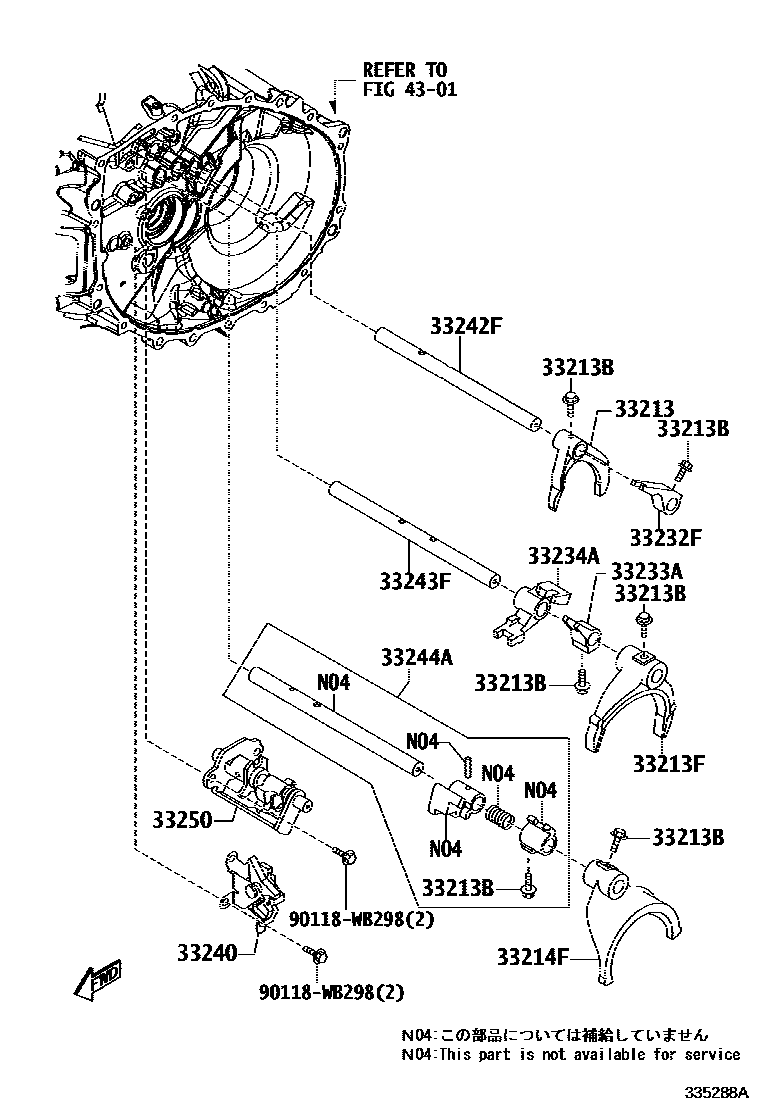

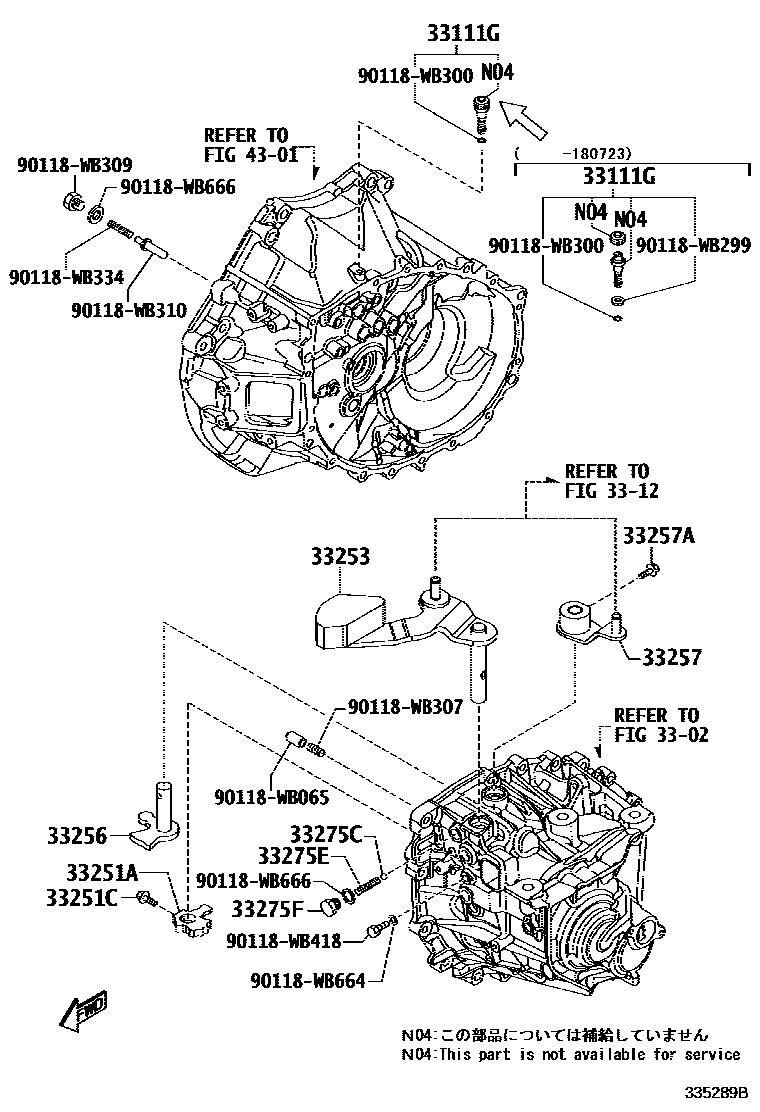

Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90118-WB301 · 90118-WBB55 |
| 33213 | First and second gear shift forks | 33212-WB001 |
| 33213B | Bolt (for securing shift fork) | 90118-WB298 |
| 33213F | Third and fourth gear shift forks | 33213-WB001 |
| 33214F | Five-speed shift fork | 33214-WB001 |
| 33232F | No. 1 transmission guide block | 33232-WB001 |
| 33233A | No. 2 speed change guide block | 33233-WB001 |
| 33234A | No. 3 speed change guide block | 33238-WB001 |
| 33240 | Reverse shift arm bracket assembly | 33240-WB001 |
| 33242F | First and second gear shift fork shaft | 33242-WB001 |
| 33243F | Third and fourth gear shift fork shaft | 33243-WB001 |
| 33244A | Fifth gear shift fork shaft | 33244-WB001 |
| 33250 | Shift lever shaft assembly | 33250-WB001 |
| 33251A | Internal shift lever No. 1 | 33251-WB001 |
| 33251C | Fixing bolt (for shift lever) | 90118-WB311 |
| 33253 | No. 1 outer shift lever | 33253-WB001 · 33253-WB002 |
| 33256 | Internal gear selector | 33256-WB001 |
| 33257 | External gear selector | 33257-WB001 |
| 33257A | External gear lever locking bolt | 90118-WB311 |
| 33275C | Steel ball (for shift lock) | 90118-WB672 |
| 33275E | Compression spring (for shift lock steel ball) | 90118-WB330 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90118-WB309 |
