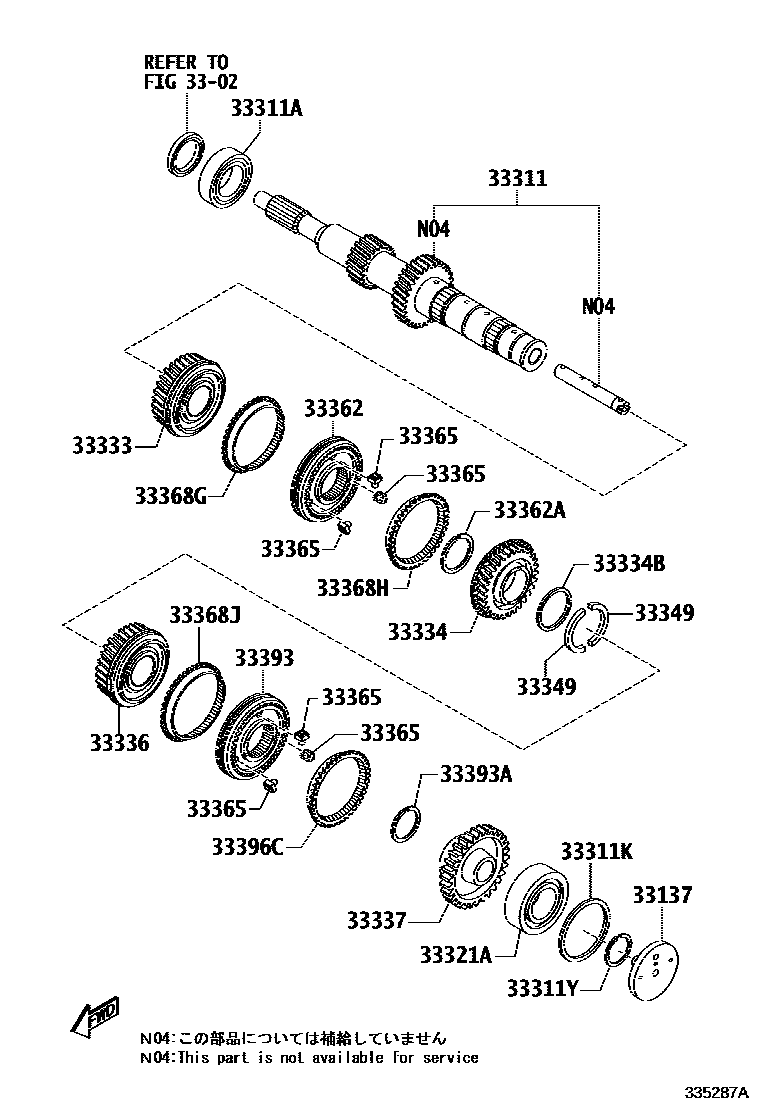

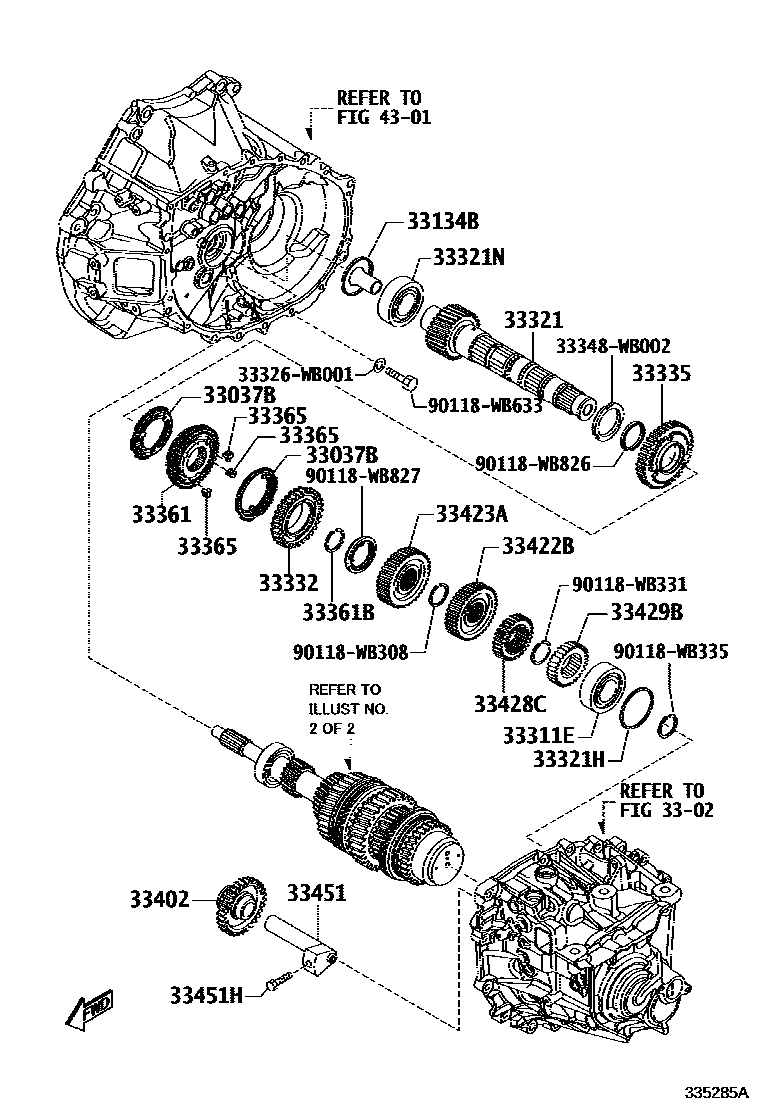

Toyota YARIS 变速器齿轮(MTM) — Figure 3305
Toyota YARIS EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33367-WB001 · 33367-WB002 |
| 33134B | Output shaft cover (MTM) | 33134-WB002 |
| 33137 | Input shaft cover (MTM) | 33134-WB001 |
| 33311 | input shaft | 33311-WB001 · 33311-WB002 |
| 33311A | Bearing (for front input shaft) | 90118-WB304 |
| 33311E | Radial ball bearing (for rear input shaft) | 90118-WB064 |
| 33311K | Spacer (for input shaft rear bearing) | 90118-WB111 · 90118-WB112 · 90118-WB114 · 90118-WB115 · 90118-WB116 · 90118-WB117 · 90118-WB119 · 90118-WB120 · 90118-WB121 · 90118-WB122 · 90118-WB123 · 90118-WB124 · 90118-WB125 · 90118-WB126 · 90118-WB127 · 90118-WB128 · 90118-WB129 · 90118-WB130 · 90118-WB131 · 90118-WB132 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90118-WB063 |
| 33321 | output shaft | 33321-WB001 |
| 33321A | Bearings (for rear output shaft) | 90118-WB333 |
| 33321H | Spacer (for output shaft rear bearing) | 90118-WB303 |
| 33321N | Bearing (for front output shaft) | 90118-WB305 |
| 33332 | Second gear | 33332-WB001 |
| 33333 | Third gear | 33034-WB001 · 33034-WB002 |
| 33334 | fourth gear | 33035-WB001 |
| 33334B | Spacer (for fourth gear bearing) | 90118-WB062 |
| 33335 | first gear | 33335-WB001 |
| 33336 | fifth gear | 33036-WB001 |
| 33337 | Sixth speed gear sub-assembly | 33037-WB001 |
| 33349 | Fifth gear thrust washer | 33348-WB001 |
| 33361 | No. 1 transmission clutch hub | 33361-WB001 · 33361-WB002 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90118-WB118 |
| 33362 | No. 2 transmission clutch hub | 33362-WB001 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90118-WB066 |
| 33365 | No. 1 synchromesh shift key | 33365-WB001 |
| 33368G | Synchronizer locking ring (for third gear) | 33368-WB001 · 33368-WB003 |
| 33368H | Synchronizer ring (for fourth gear) | 33368-WB001 · 33368-WB003 |
| 33368J | Synchronizer ring (for fifth gear) | 33368-WB002 · 33368-WB004 |
| 33393 | No. 3 transmission clutch hub | 33393-WB001 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90118-WB113 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33368-WB002 · 33368-WB004 |
| 33402 | Reverse idler gear sub-assembly | 33402-WB001 · 33402-WB002 |
| 33422B | Fourth gear driven gear | 33422-WB001 |
| 33423A | Third gear driven gear | 33423-WB001 |
| 33428C | fifth speed driven gear | 33428-WB001 |
| 33429B | Sixth speed driven gear | 33429-WB001 |
| 33451 | Reverse gear idler shaft | 33451-WB001 |
| 33451H | Bolt (for reverse idler shaft) | 90118-WB499 |
