Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 9 PNC and OE references.

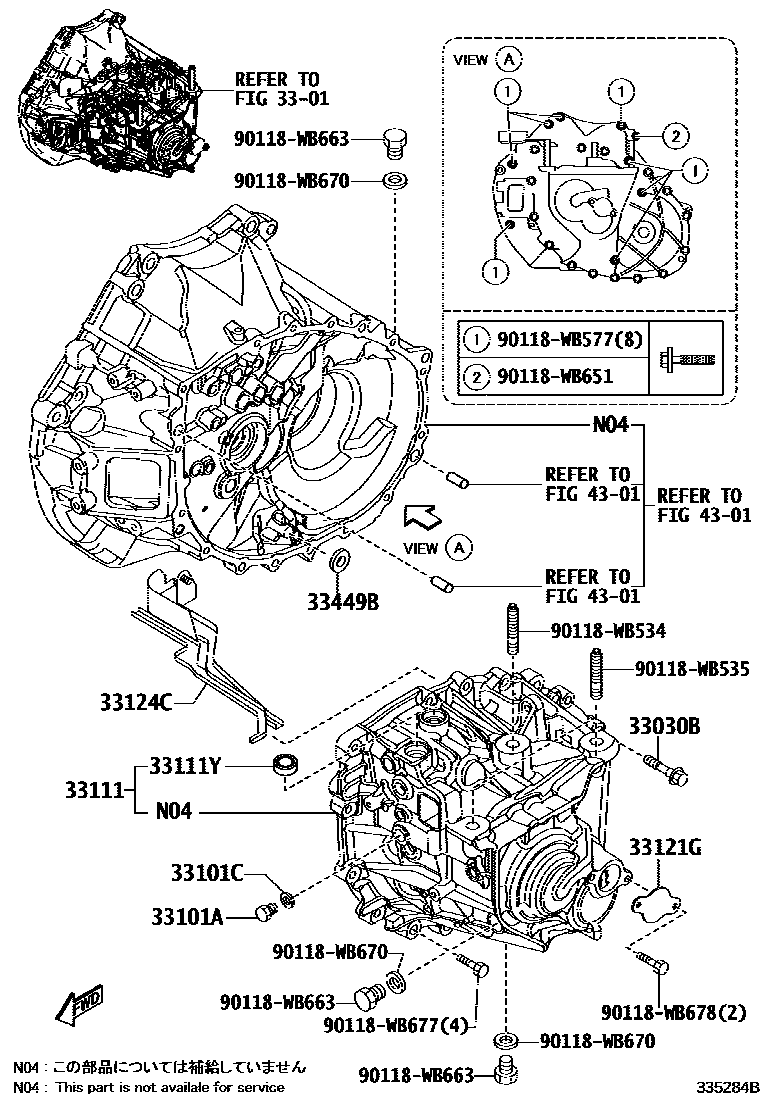

Toyota YARIS 离合器壳和变速器壳(MTM) EPC diagram — 335284B
离合器壳和变速器壳(MTM) — 335284B (201506 – 999999)

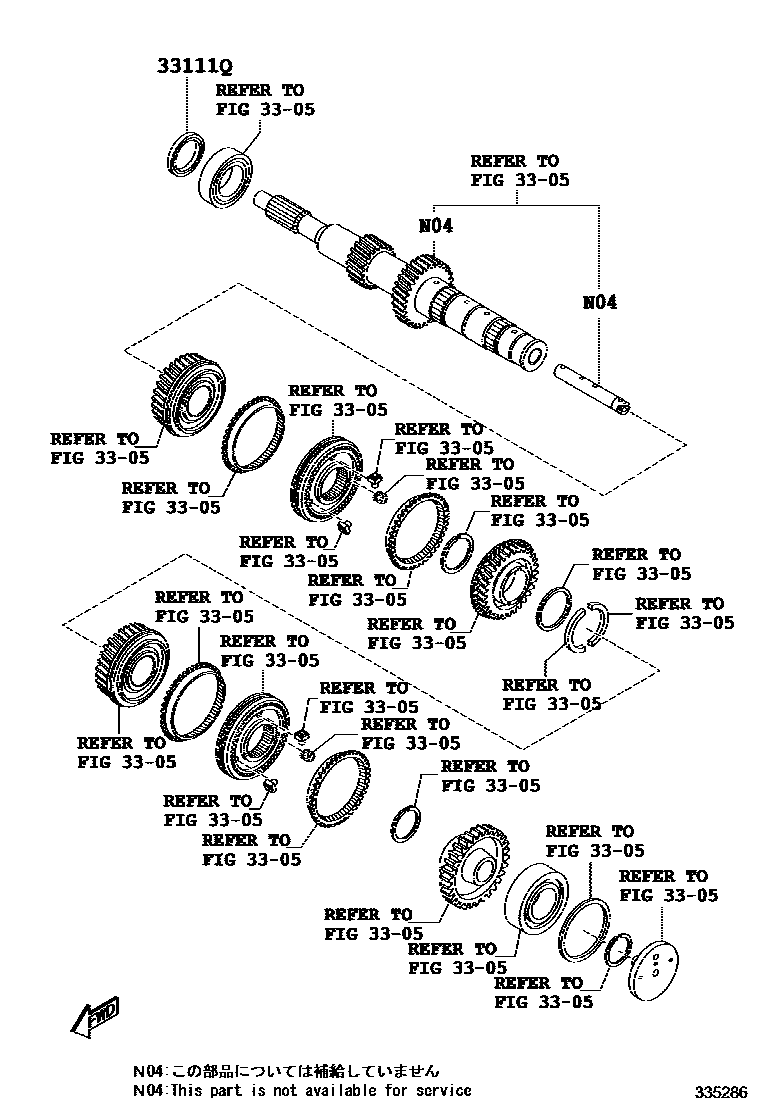

Toyota YARIS 离合器壳和变速器壳(MTM) EPC diagram — 335286
离合器壳和变速器壳(MTM) — 335286 (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
33030BBolts (for securing transaxle housing and gearbox)90118-WB302
33101AScrew plug (for manual transmission oil filler port)90118-WB376
33101CGasket (for manual transmission filler plug)90118-WB666
33111Manual transmission housing33111-WB001
33111QOil seal (for gearbox)90118-WB306
33111YOil seal (for gearbox)90118-WBB58
33121Gmanual gearbox cover31116-WB001
33124CNo. 1 oil collecting pipe (MTM)33124-WB001
33449Bderailleur magnet35394-WB001
