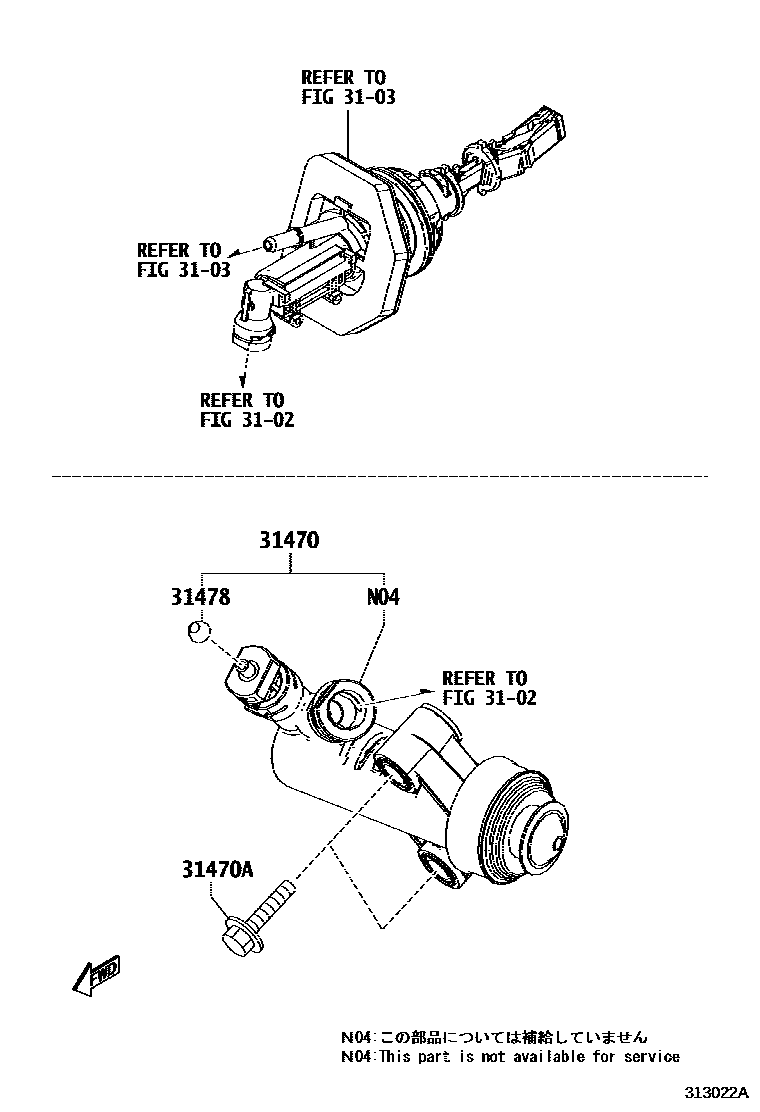

Toyota YARIS 离合器分离缸 — Figure 3105
Toyota YARIS EPC diagram 3105, 离合器分离缸, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31470 | Clutch release cylinder assembly | 31470-WB001 · 31470-WB002 |
| 31470A | Bolt (for securing clutch release cylinder) | 90118-WB679 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-WB001 · 31478-WB004 |
