Toyota YARIS 离合器总泵 — Figure 3103

Toyota YARIS EPC diagram 3103, 离合器总泵, with 3 images and 2 PNC and OE references.

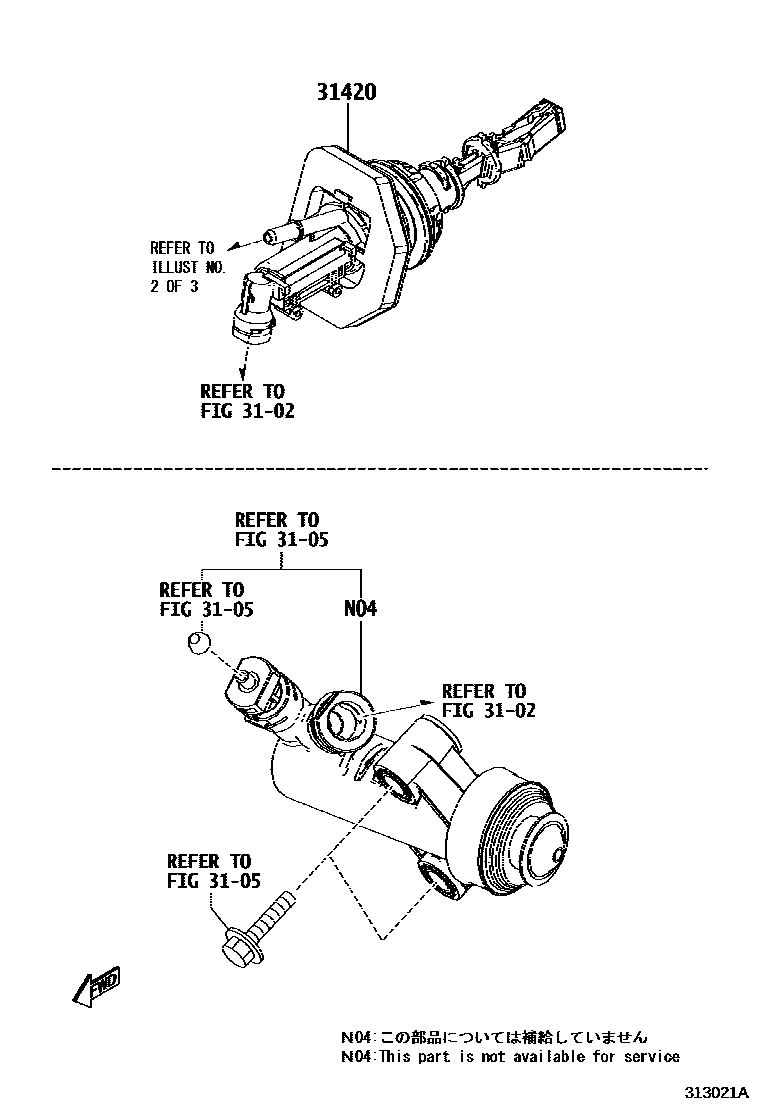

Toyota YARIS 离合器总泵 EPC diagram — 313021A
离合器总泵 — 313021A (201506 – 999999)

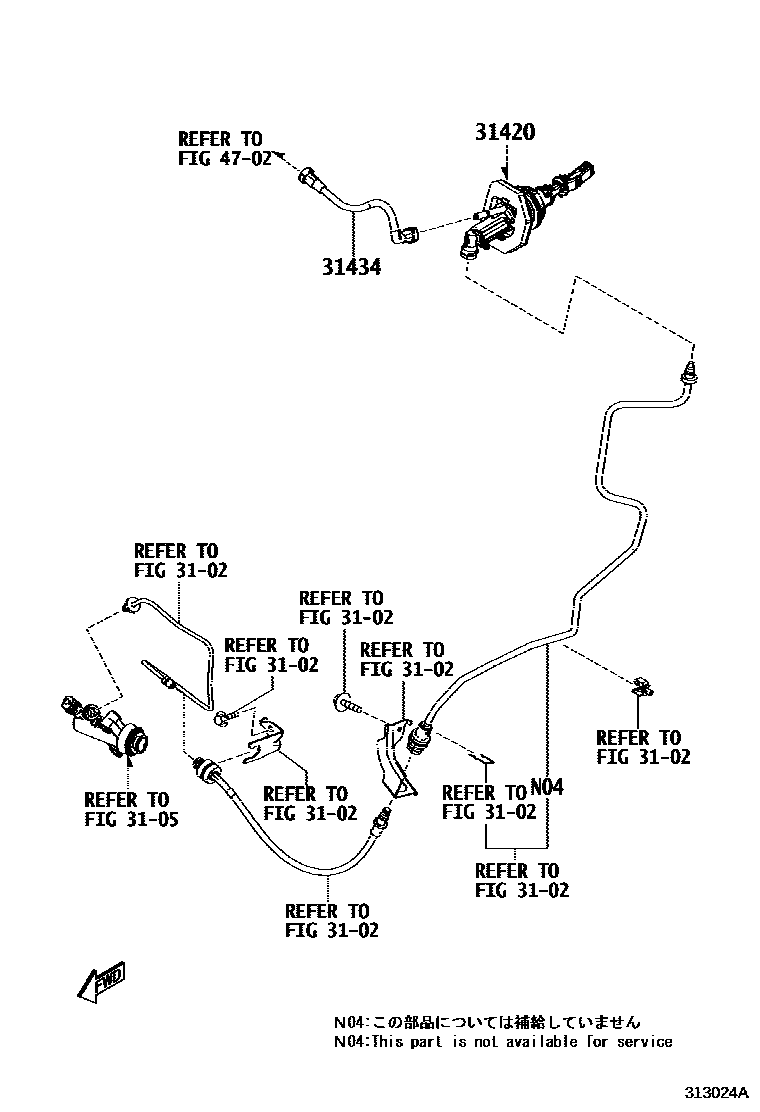

Toyota YARIS 离合器总泵 EPC diagram — 313024A
离合器总泵 — 313024A (201506 – 999999)

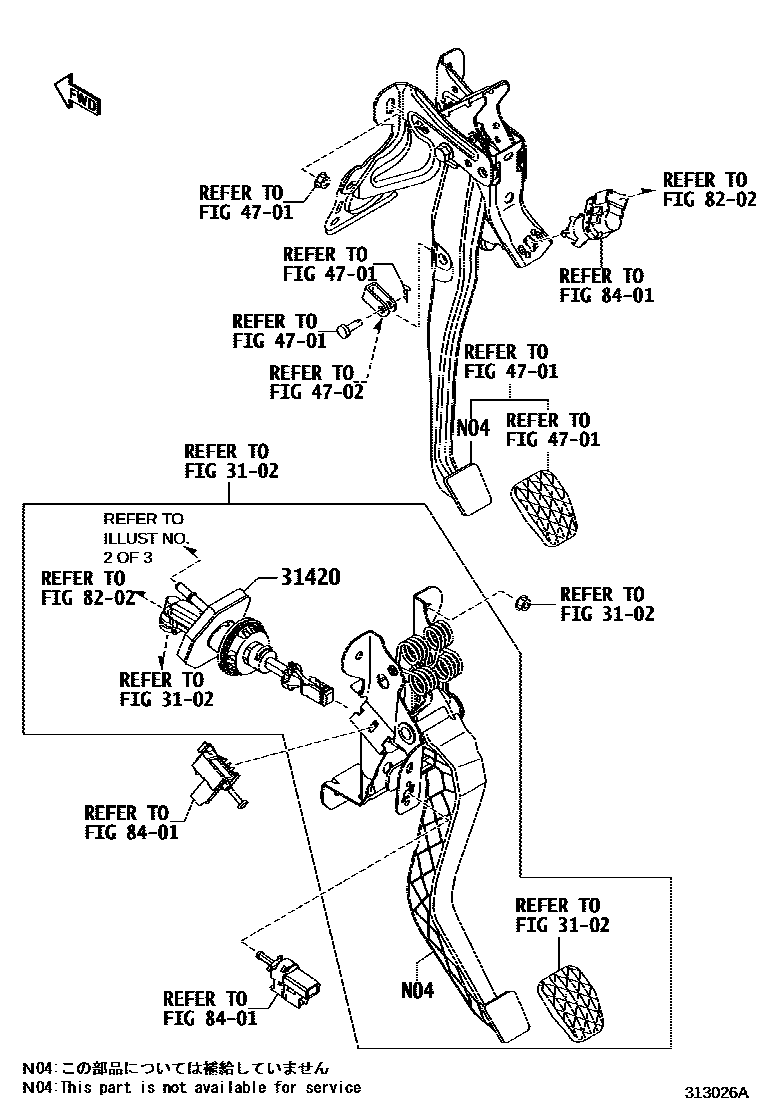

Toyota YARIS 离合器总泵 EPC diagram — 313026A
离合器总泵 — 313026A (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
31420Master pump assembly without reservoir31420-WB001 · 31420-WB002
31434Clutch reservoir connecting pipe31434-WB001
