Toyota YARIS 离合器踏板和挠性软管 — Figure 3102
Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 7 PNC and OE references.
PNC and OE references

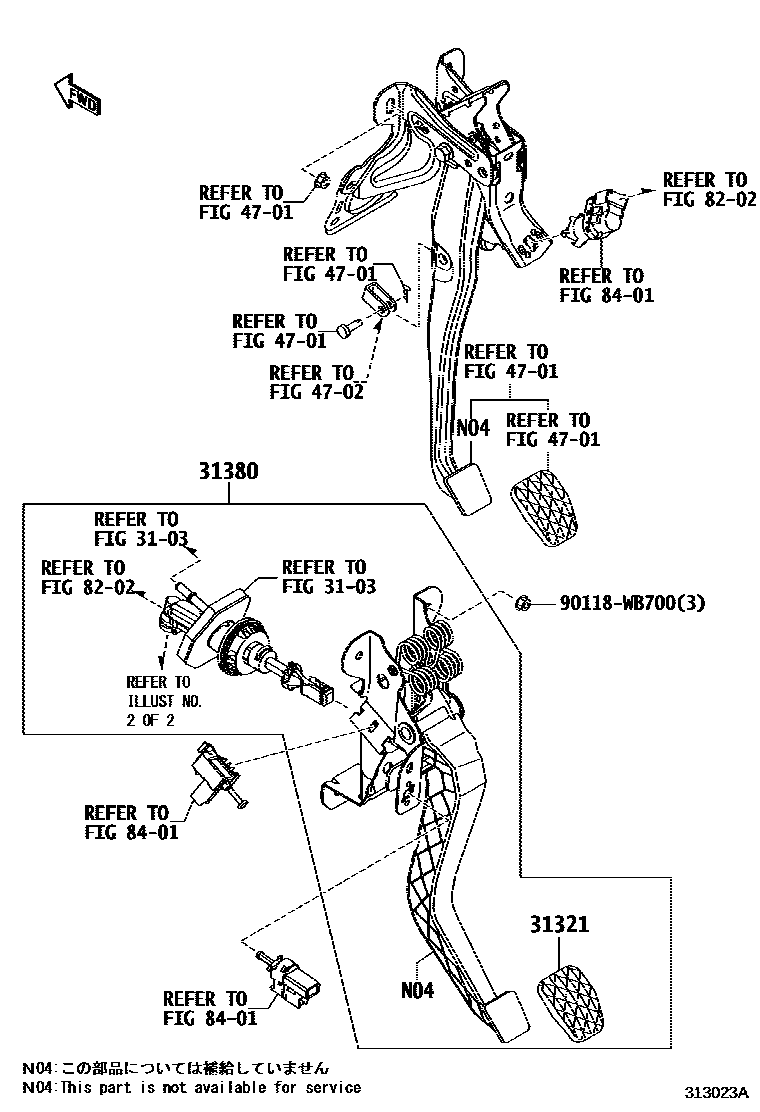

| PNC | Part name | OE numbers |
|---|---|---|
| 31321 | clutch pedal pad | 31321-WB001 |
| 31380 | Pedal bracket assembly | 31380-WB001 · 31380-WB002 |

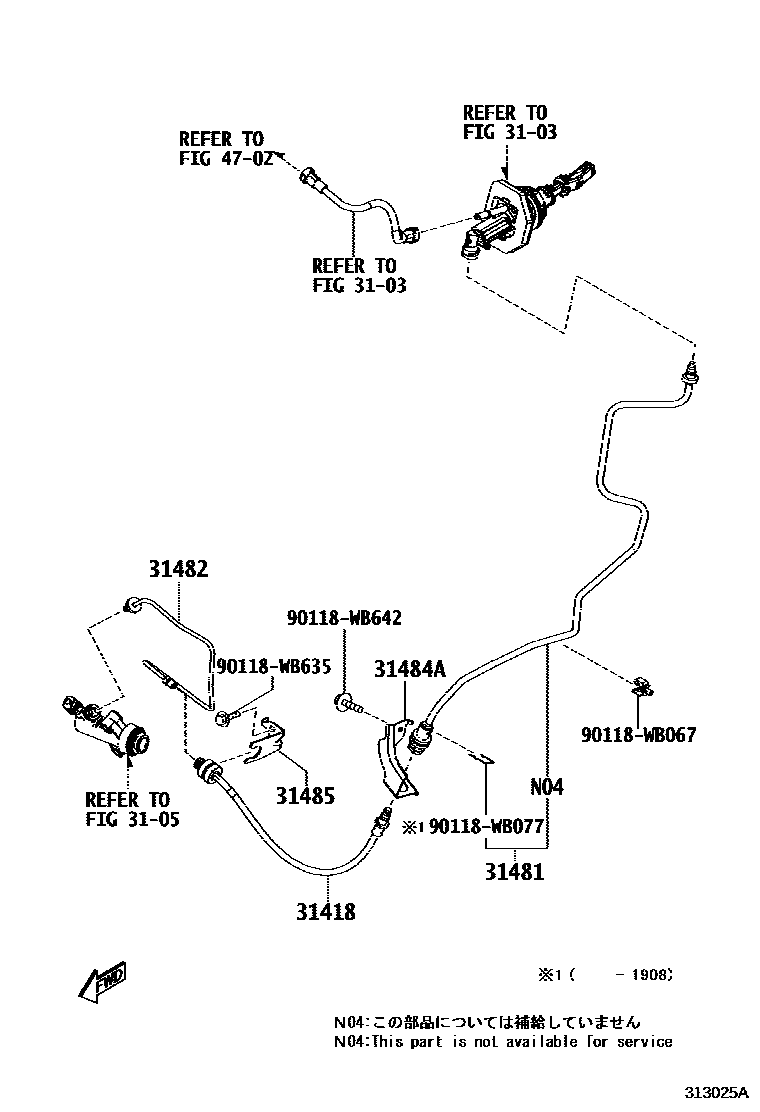

| 31418 | clutch hose | 90118-WB078 · 90118-WBA38 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-WB001 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-WB001 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-WB002 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-WB001 |
