Toyota YARIS 燃油喷射系统 — Figure 2211

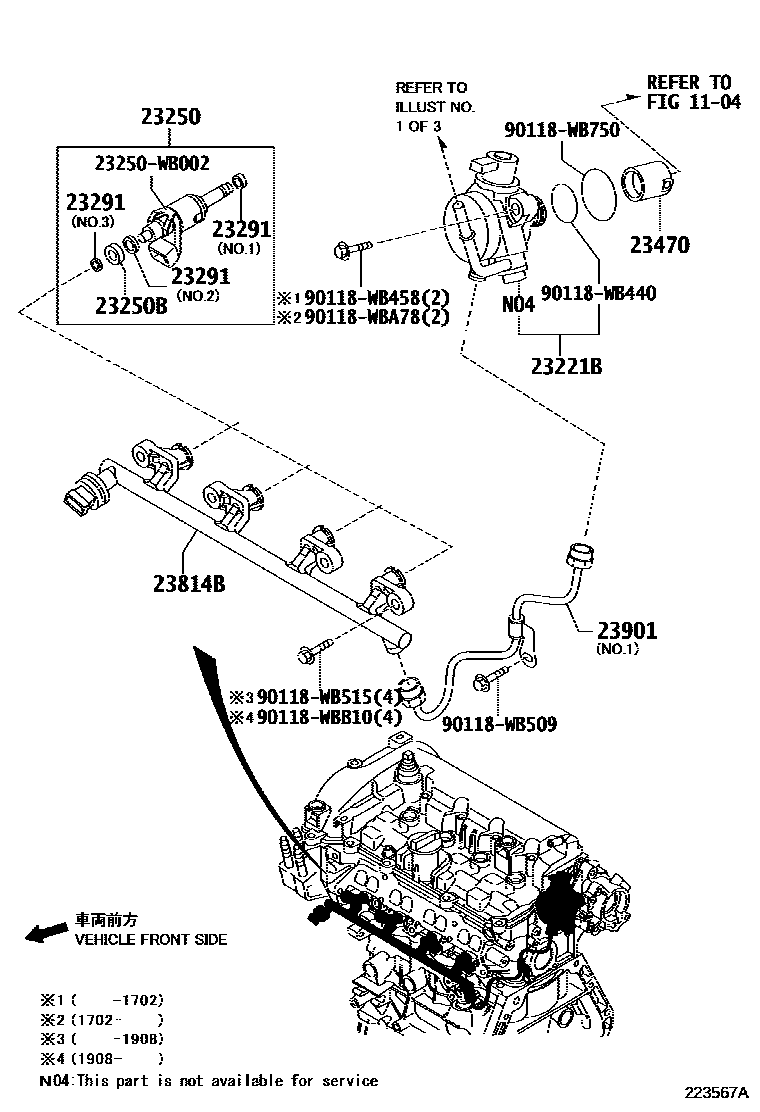

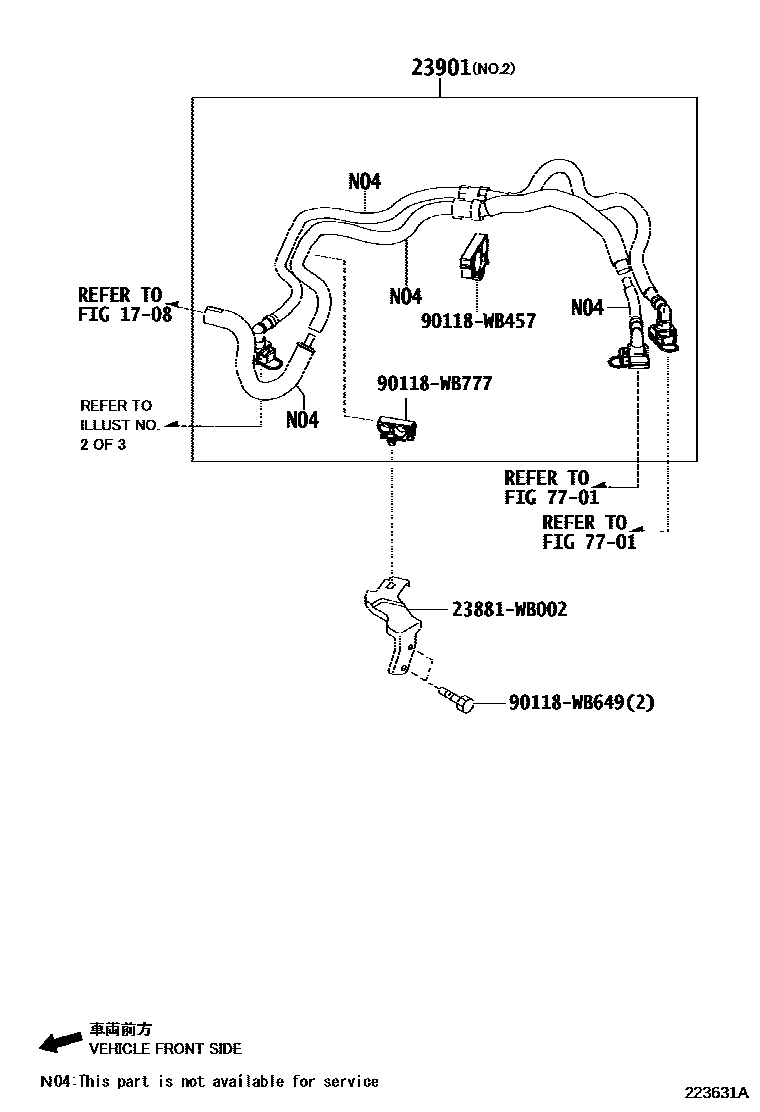

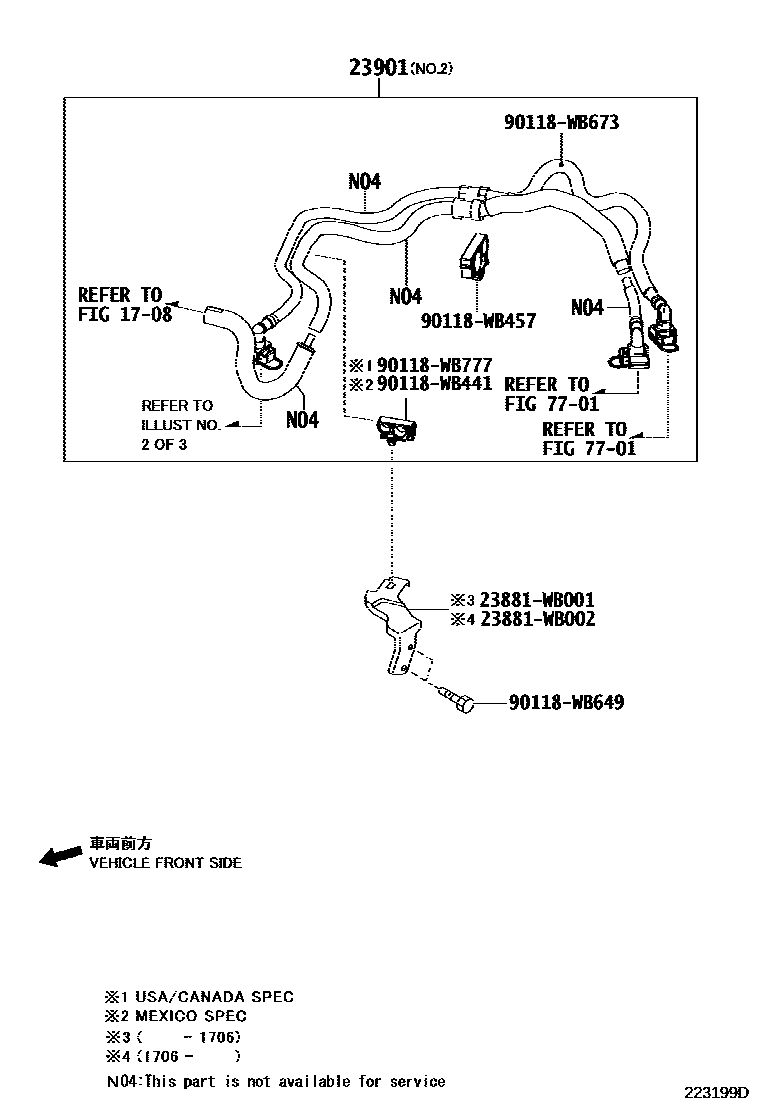

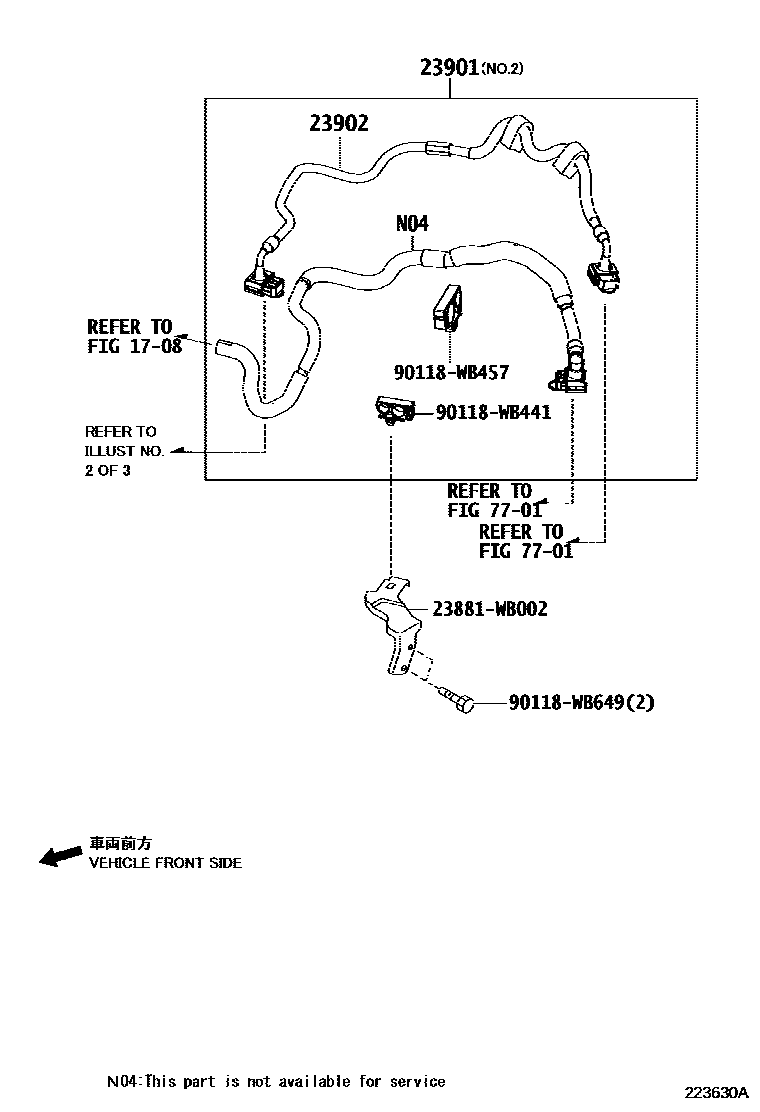

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

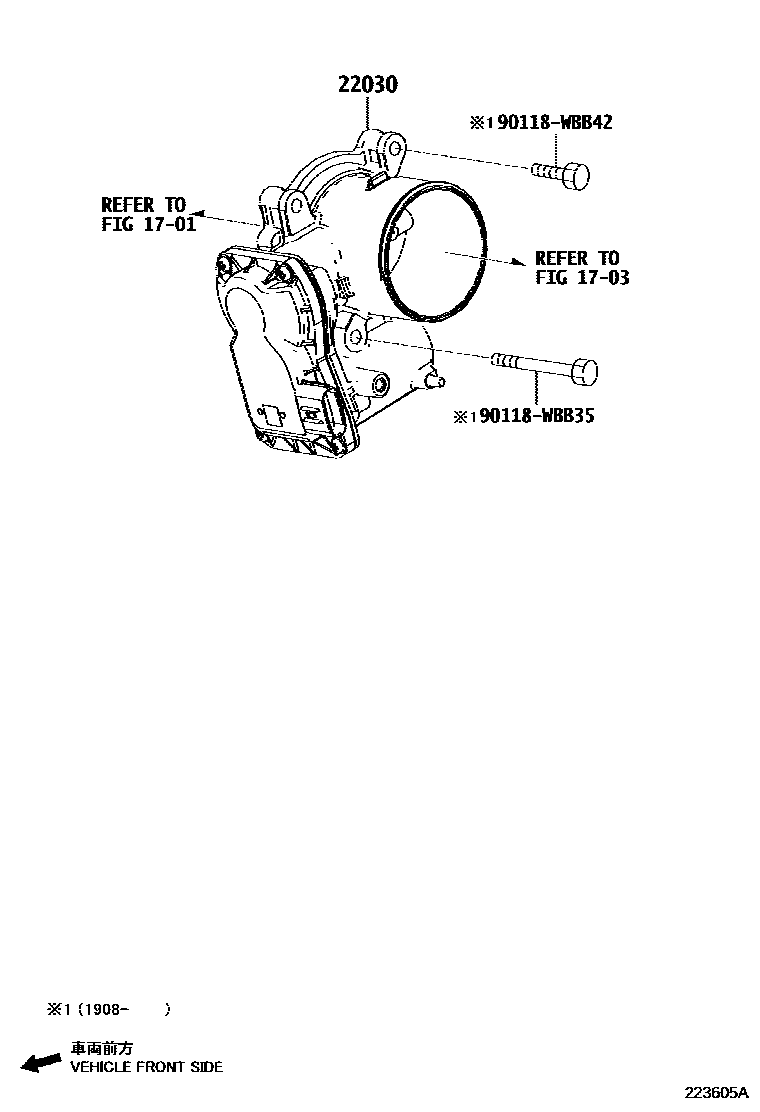

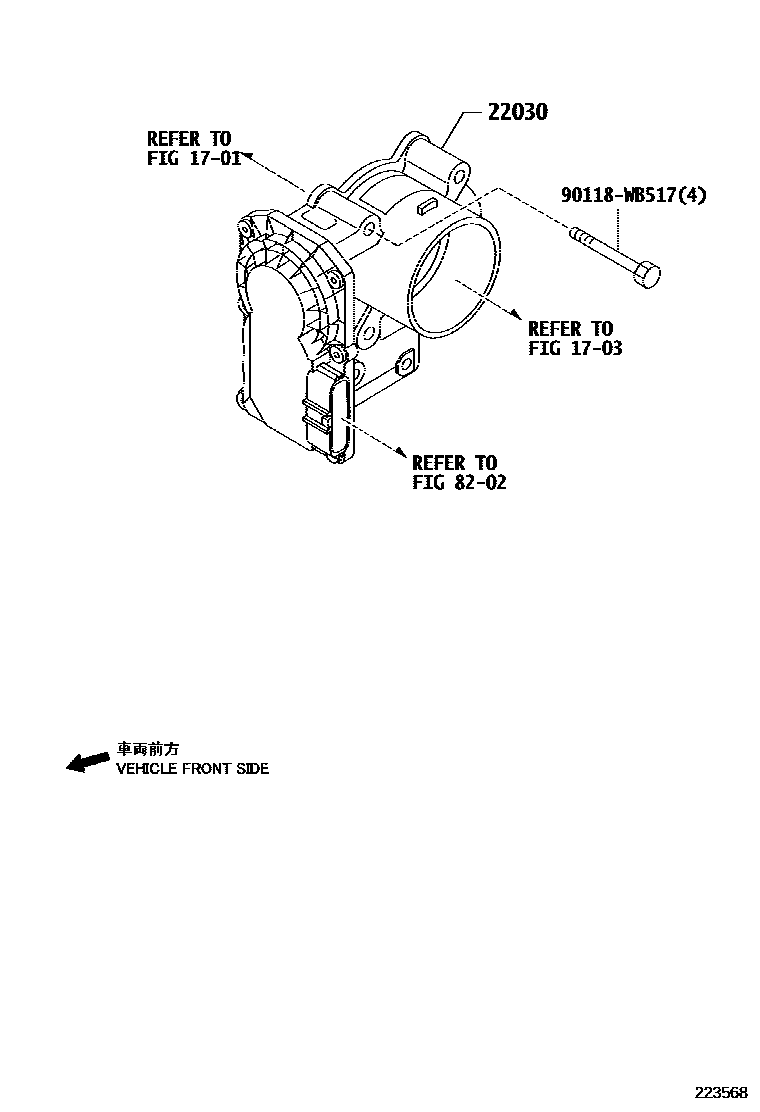

| 22030 | Electronic throttle body assembly | 22030-WB001 · 22030-WB002 · 22030-WB003 |
| 23221B | fuel pump | 23221-WB001 |
| 23250 | Fuel injector assembly | 23209-WB002 |
| 23250B | O-ring (for fuel injector) | 90118-WB858 |
| 23291 | Injector vibration isolation pad | 90118-WB857 · 90118-WB859 · 90118-WB860 |
| 23470 | Fuel pump tappet assembly | 23470-WB001 |
| 23814B | oil pipeline | 23814-WB001 · 23814-WB002 |
| 23901 | Fuel pipe sub-assembly | 23901-WB001 · 23901-WB002 · 23901-WB006 · 23901-WB007 · 23901-WB008 |
| 23902 | Fuel pipe sub-assembly | 23902-WB001 |
