Toyota YARIS 起动机 — Figure 1904

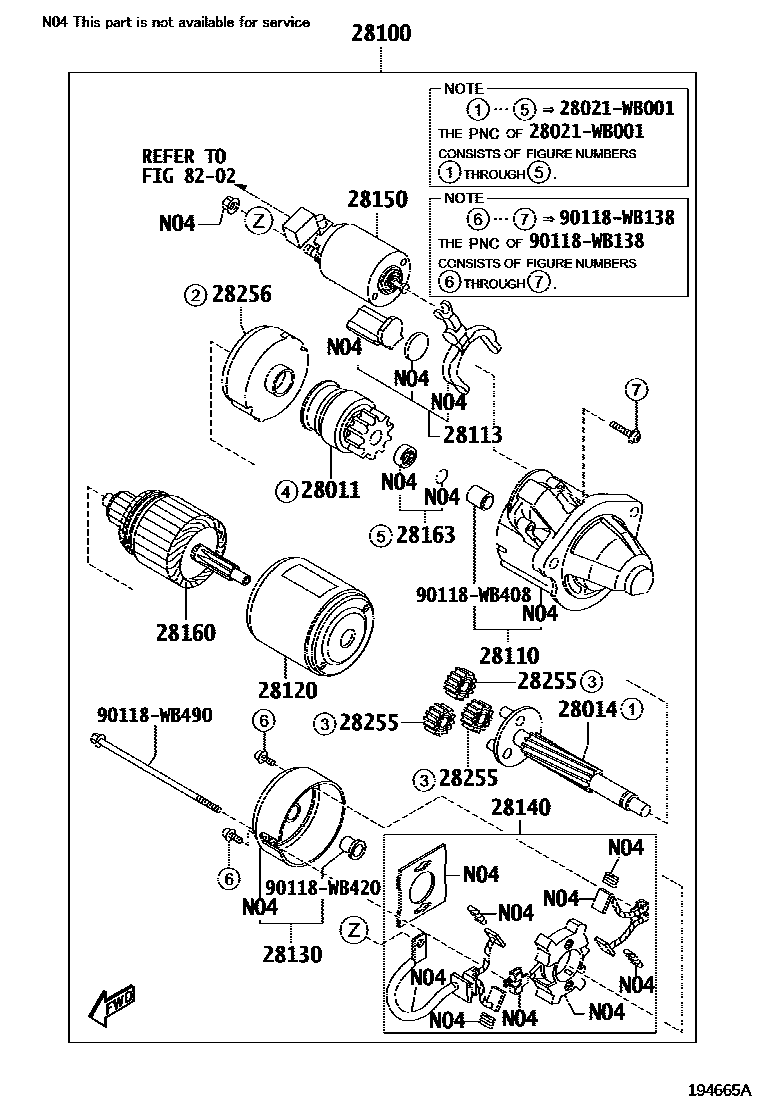

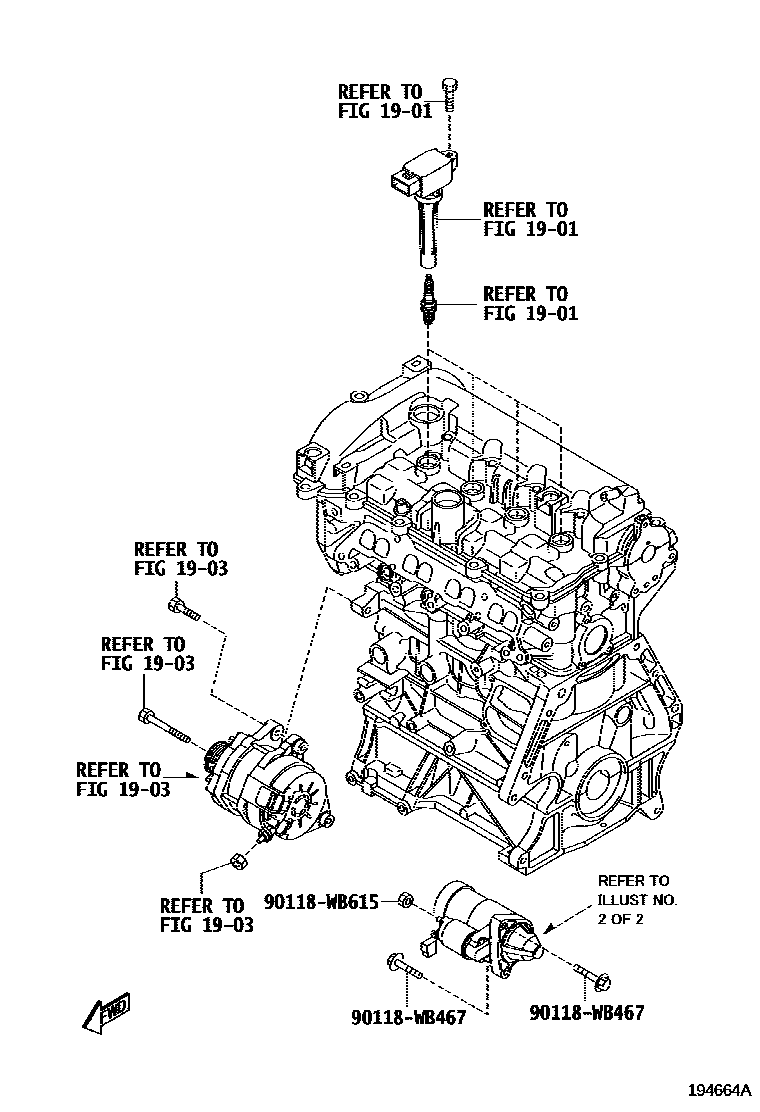

Toyota YARIS EPC diagram 1904, 起动机, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-WB001 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-WB001 |
| 28100 | Starter assembly | 28100-WB001 |
| 28110 | Starter drive end housing assembly | 28110-WB001 |
| 28113 | starter pinion drive rod | 28113-WB001 |
| 28120 | Starter yoke assembly | 28120-WB001 |
| 28130 | Starter commutator end frame assembly | 28130-WB001 |
| 28140 | Starter brush holder assembly | 28140-WB001 |
| 28150 | Starter electromagnetic switch assembly | 28150-WB001 |
| 28160 | Starter armature assembly | 28160-WB001 |
| 28163 | Starter pinion snap nut or snap ring | 28163-WB001 |
| 28255 | Planetary gear | 28255-WB001 |
| 28256 | Starter internal gear | 28256-WB001 |
