Toyota YARIS vacuum tube — Figure 1708

Toyota YARIS EPC diagram 1708, vacuum tube, with 1 images and 7 PNC and OE references.

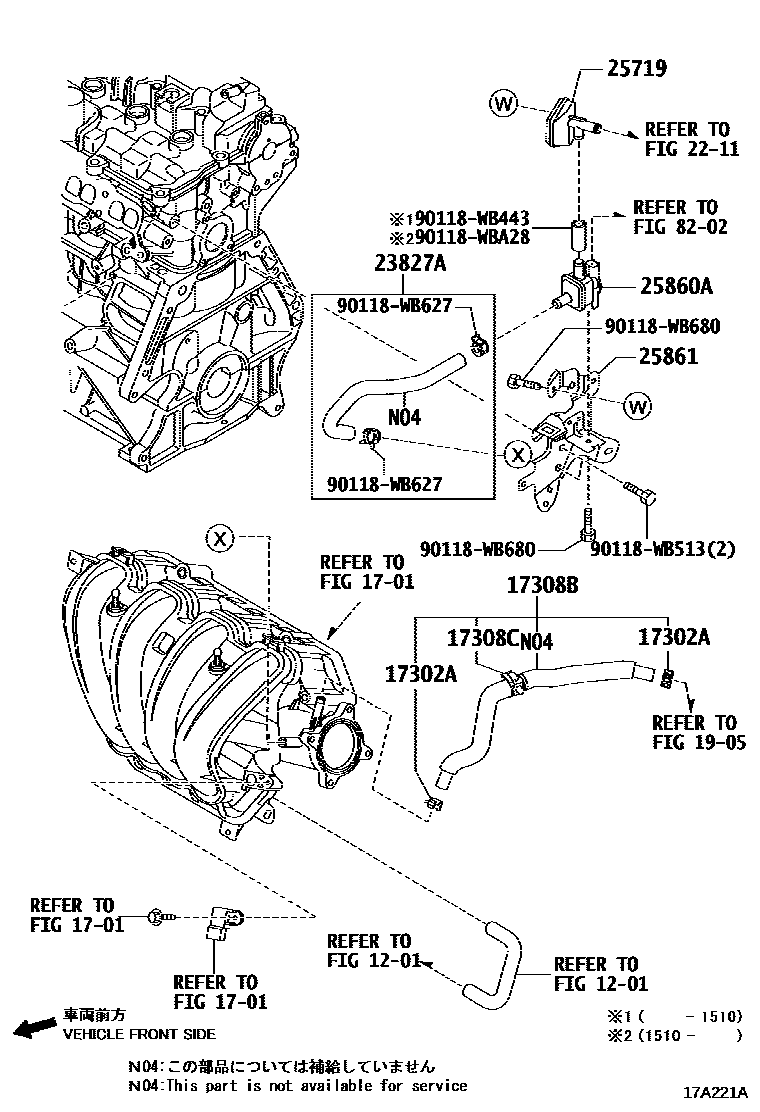

Toyota YARIS vacuum tube EPC diagram — 17A221A
vacuum tube — 17A221A (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
17302AHose clip90118-WB475
17308BVacuum hose sub-assembly17308-WB001 · 17308-WB002
17308CClamp (for vacuum hose)90118-WB056
23827ANo. 2 fuel vapor supply hose23827-WB001
25719Vacuum pressure tank25719-WB001
25860ANo. 1 vacuum switch valve25860-WB001
25861Vacuum switch valve bracket25861-WB001
