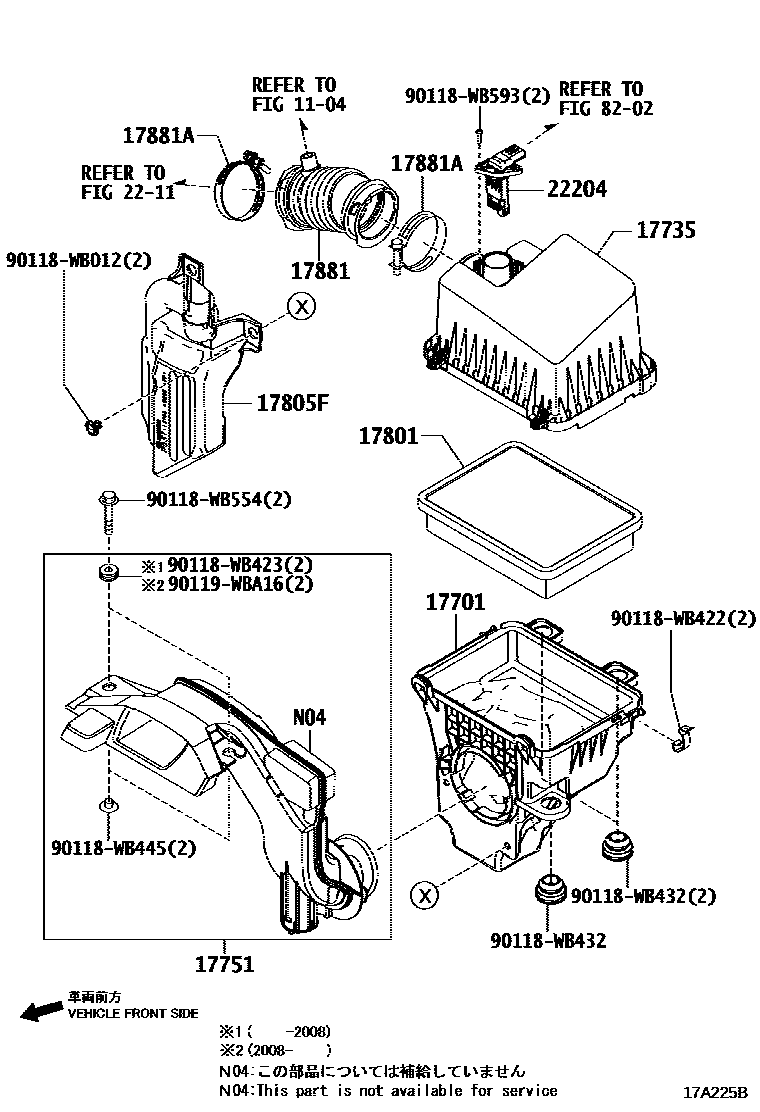

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-WB001 |
| 17735 | air filter cover | 17735-WB001 |
| 17751 | No. 1 air filter air inlet | 17751-WB001 |
| 17801 | Air filter element sub-assembly | 17801-WB001 |
| 17805F | Intake resonator sub-assembly | 17805-WB001 |
| 17881 | No. 1 air cleaner hose | 17880-WB001 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90118-WB494 |
| 22204 | Intake air flow meter assembly | 22204-WB001 · 22204-WB002 |
