Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 6 PNC and OE references.

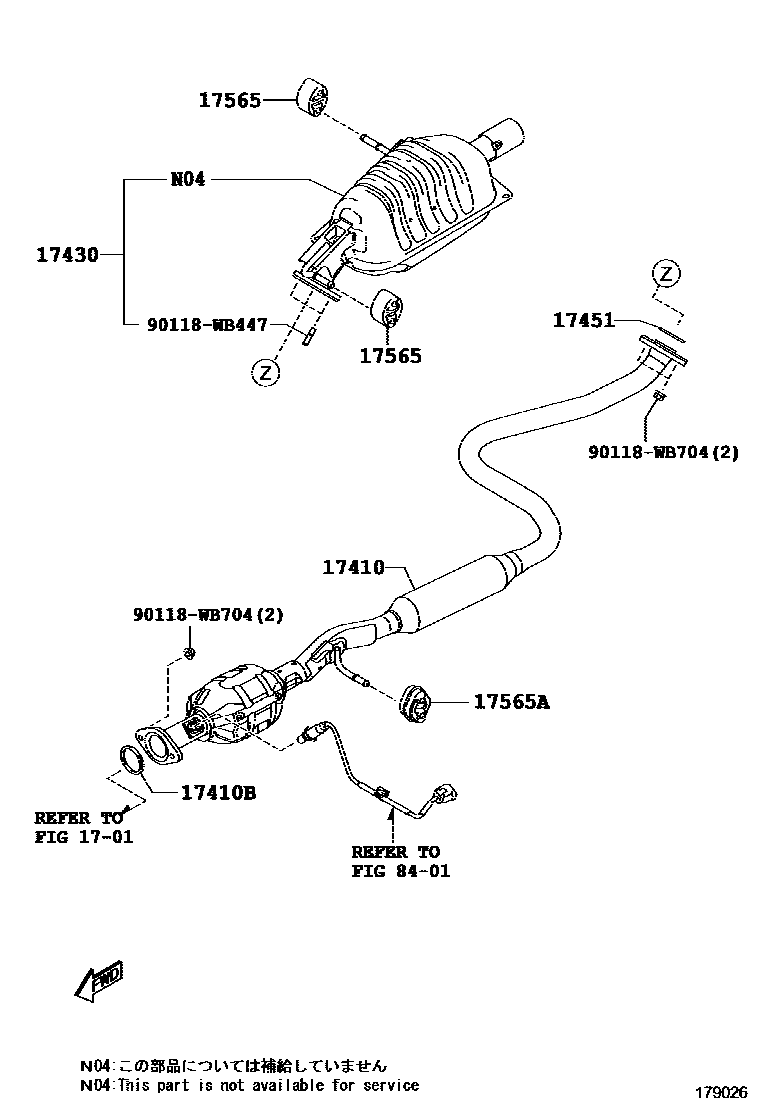

Toyota YARIS Exhaust Pipe EPC diagram — 179026
Exhaust Pipe — 179026 (201506 – 201908)

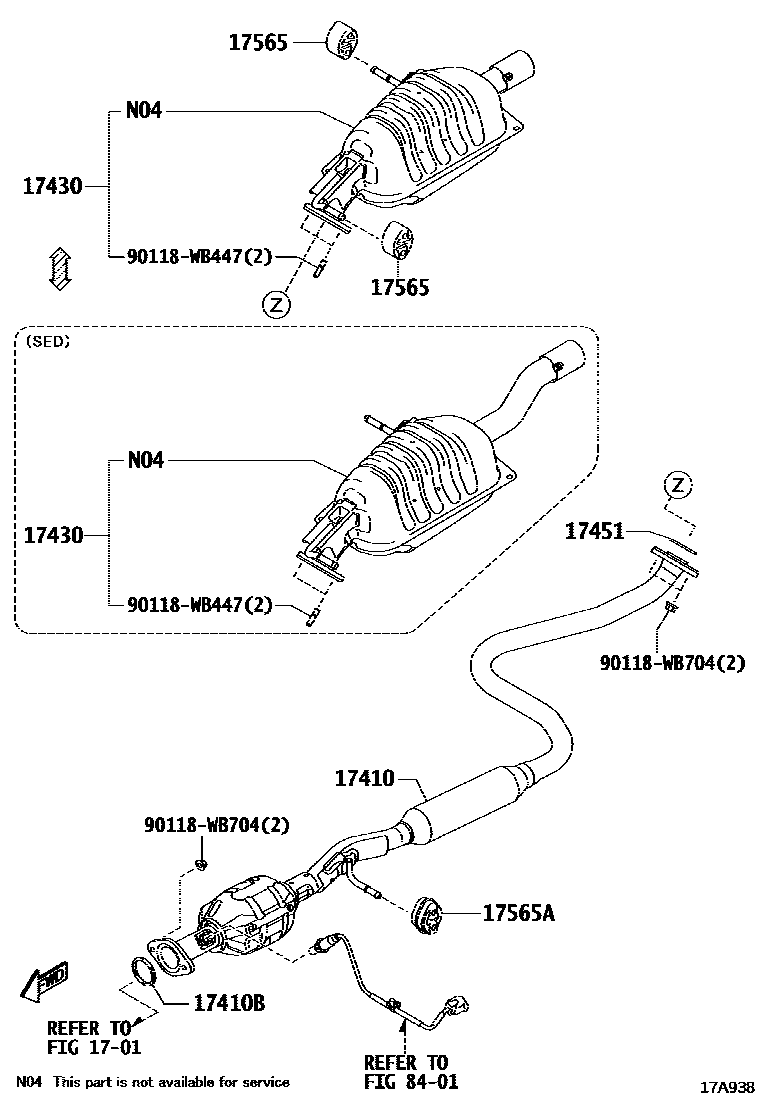

Toyota YARIS Exhaust Pipe EPC diagram — 17A938
Exhaust Pipe — 17A938 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-WB001 · 17410-WB002
17410BExhaust pipe gasket17451-WB001
17430Exhaust tailpipe assembly17430-WB002 · 17430-WB003 · 17430-WB004 · 17430-WB005
17451Exhaust pipe gasket17451-WB001
17565No. 5 exhaust pipe lifting lug17565-WB001
17565ANo. 4 exhaust pipe lifting lug17565-WB003
