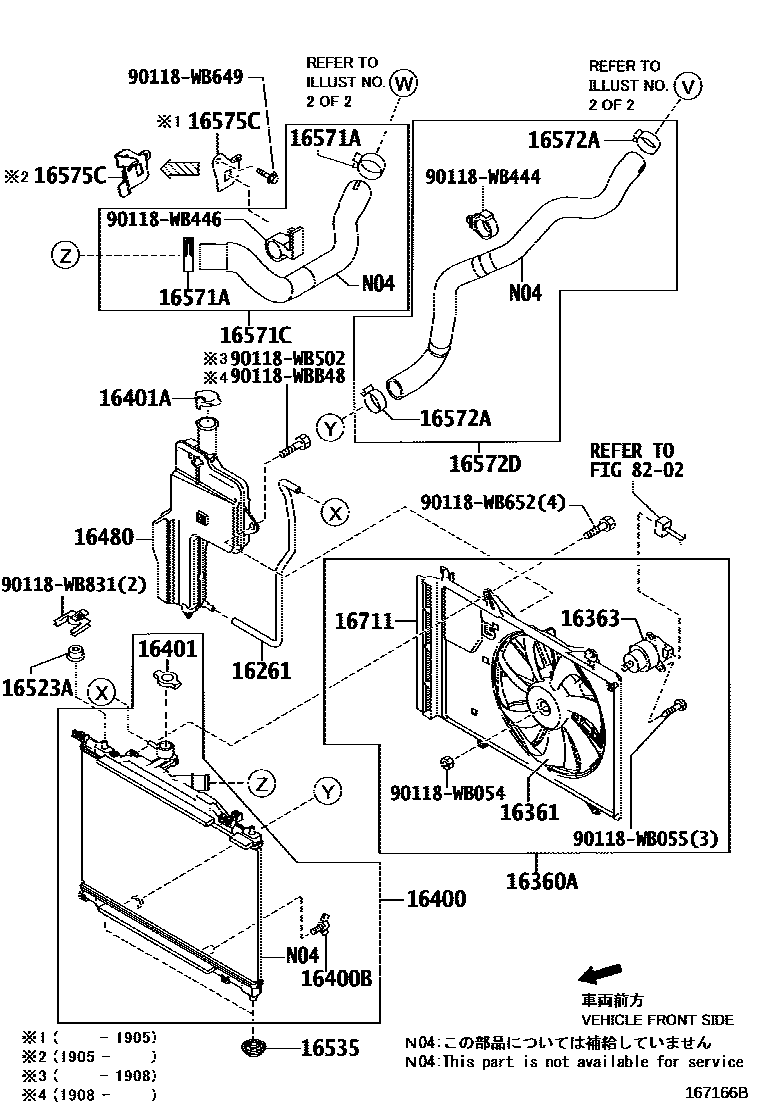

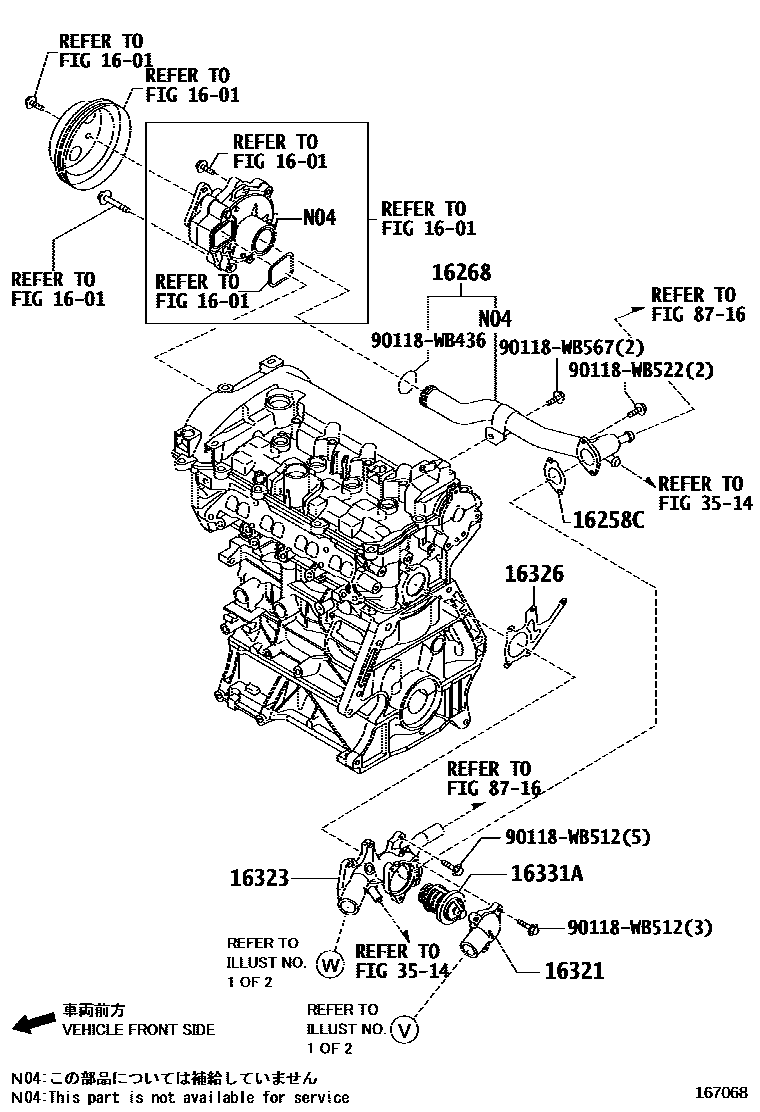

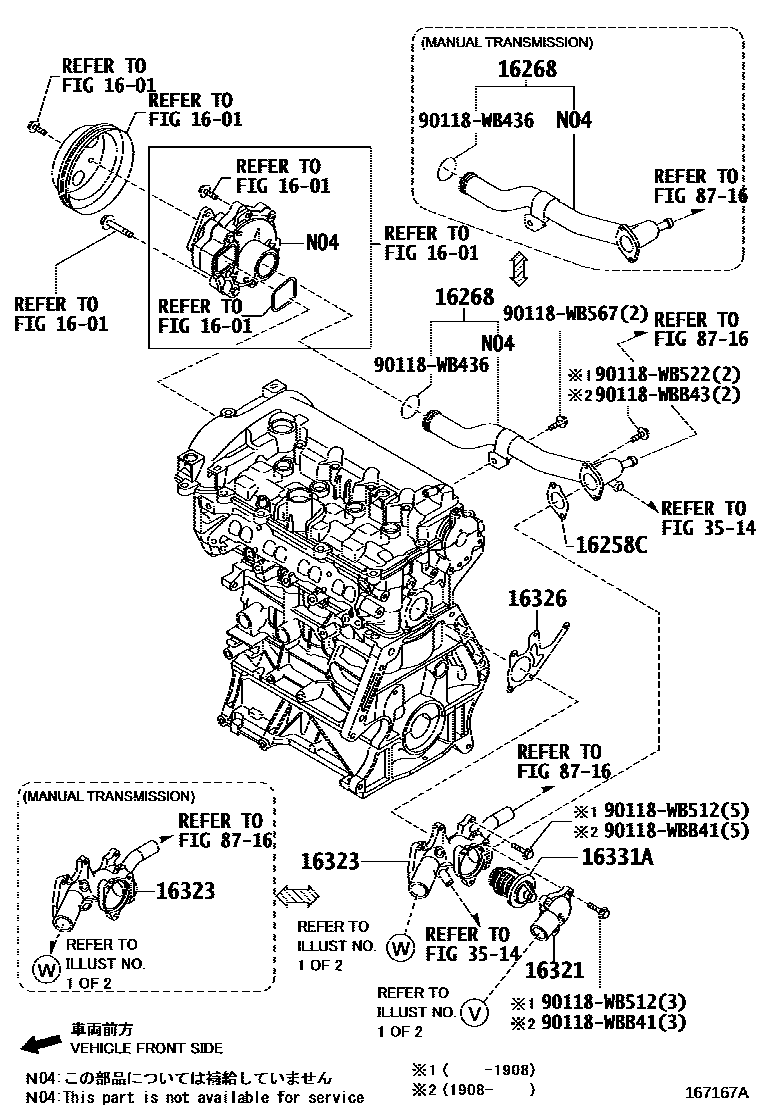

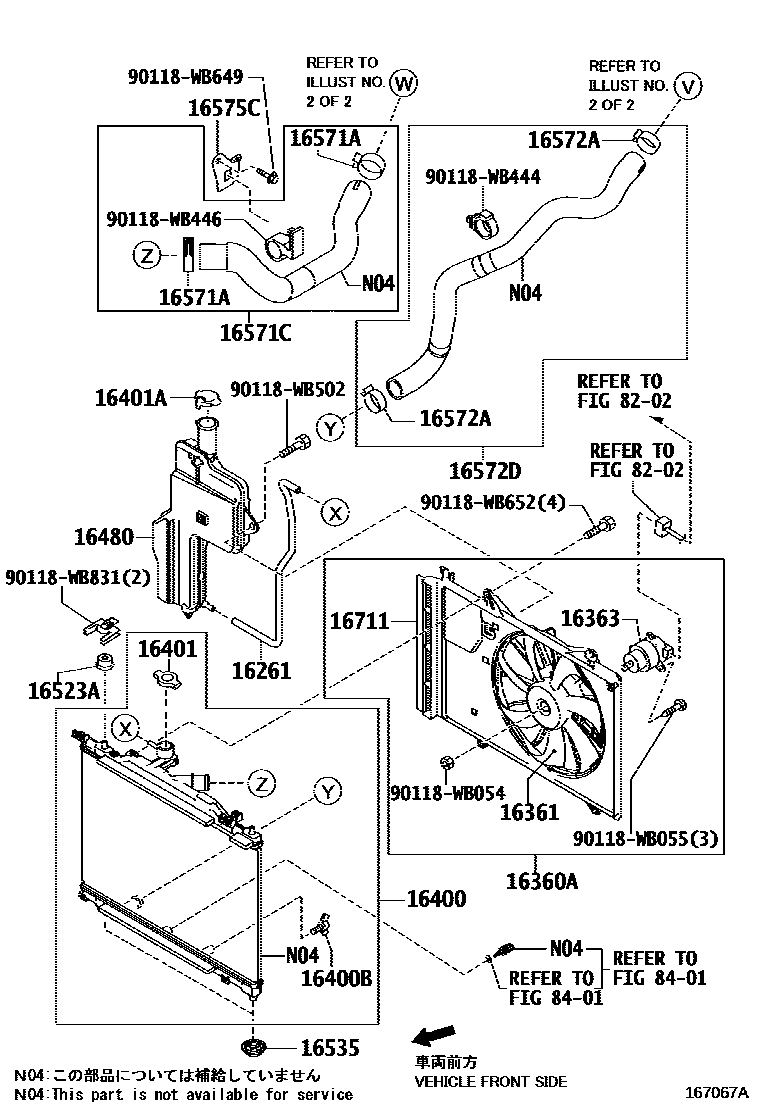

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258C | Gasket (for water bypass pipe) | 16258-WB001 |
| 16261 | HOSE, WATER BY-PASS | 16261-WB001 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-WB001 · 16268-WB002 |
| 16321 | water inlet | 16321-WB001 |
| 16323 | HOUSING, WATER INLET | 16323-WB001 · 16323-WB002 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-WB001 |
| 16331A | thermostat | 90118-WB459 |
| 16360A | Fan assembly with motor | 16360-WB001 |
| 16361 | Fan | 16361-WB001 |
| 16363 | cooling fan motor | 16363-WB001 |
| 16400 | Radiator assembly | 16400-WB001 · 16400-WB002 |
| 16400B | Radiator drain switch screw plug | 16417-WB001 |
| 16401 | Radiator cover sub-assembly | 16401-WB001 |
| 16401A | Radiator reservoir cap sub-assembly | 16405-WB001 |
| 16480 | Radiator reservoir assembly without cover | 16480-WB001 · 16480-WB002 |
| 16523A | Radiator bracket cushion | 16523-WB001 |
| 16535 | Radiator lower support | 90118-WB466 · 90118-WBB09 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90118-WB435 |
| 16571C | Radiator hose No. 1 | 16571-WB001 · 16571-WB002 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90118-WB435 |
| 16572D | Radiator hose No. 2 | 16572-WB001 · 16572-WB002 |
| 16575C | No. 1 water hose clamp bracket | 16575-WB001 · 16575-WB002 |
| 16711 | fan cover | 16711-WB001 |
