Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.

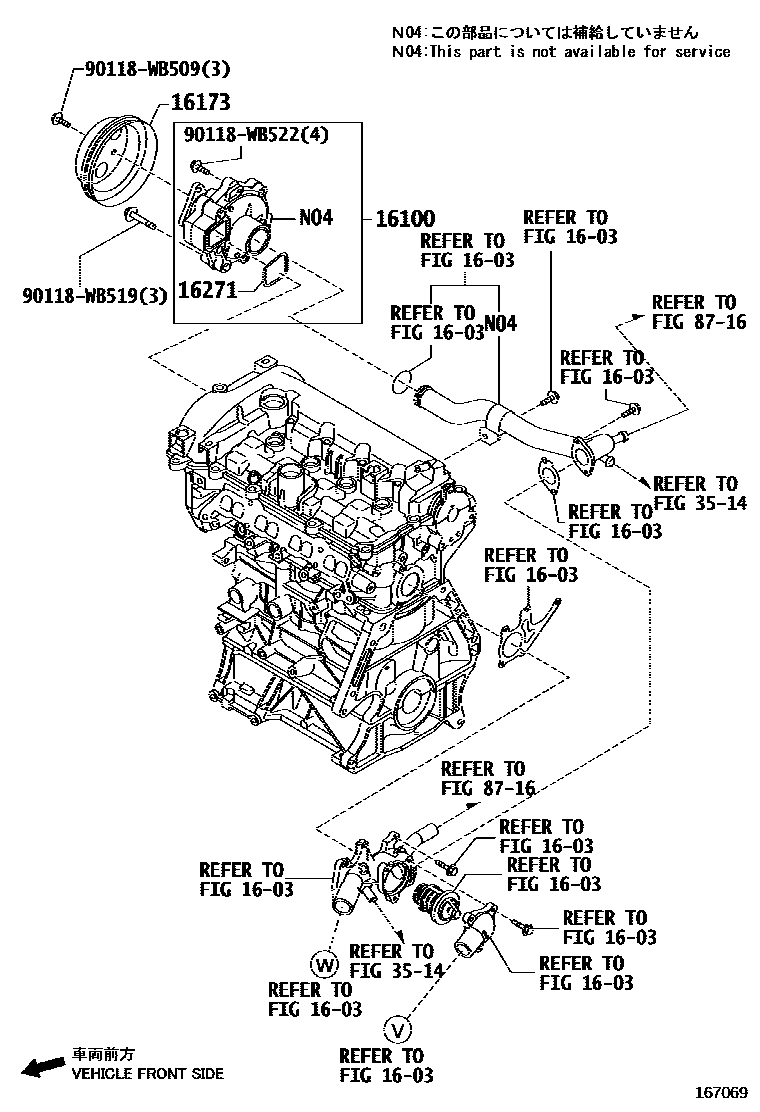

Toyota YARIS Water Pump EPC diagram — 167069 — Water Pump — 167069 (201506 – 201808)

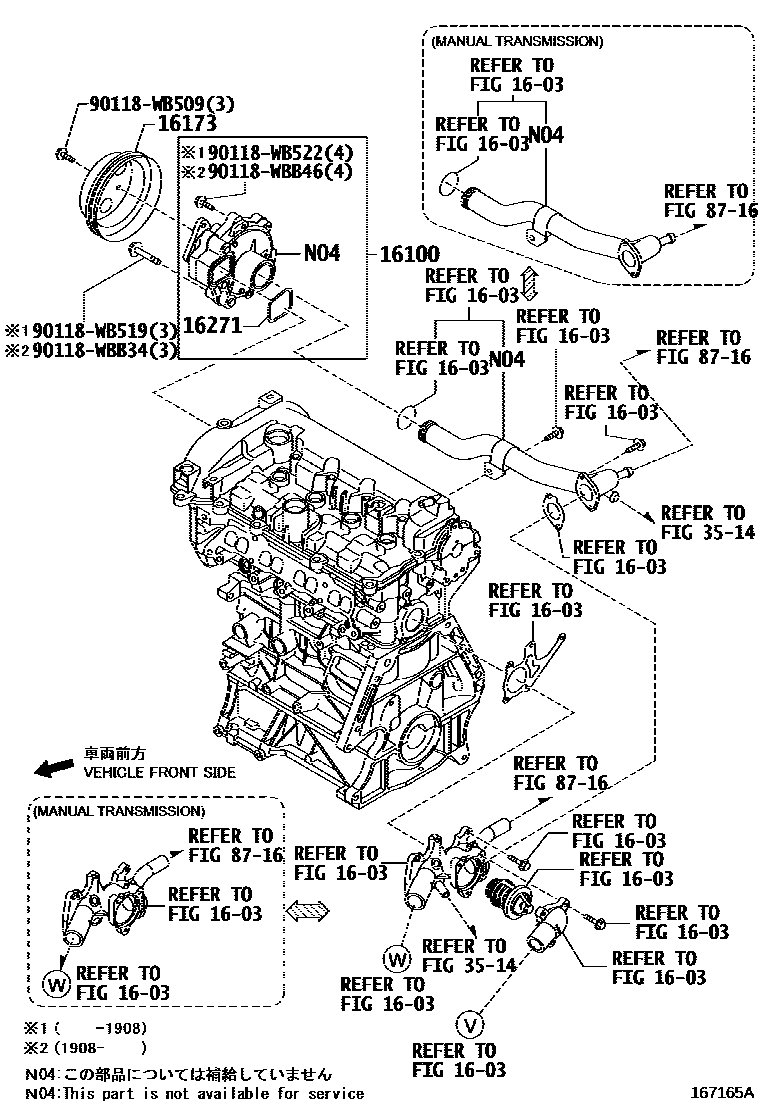

Toyota YARIS Water Pump EPC diagram — 167165A — Water Pump — 167165A (201808 – 999999)

PNC and OE references

PNC	Part name	OE numbers
16100	Engine water pump assembly	16100-WB001 · 16100-WB002
16173	water pump pulley	16173-WB001
16271	water pump gasket	16271-WB001
