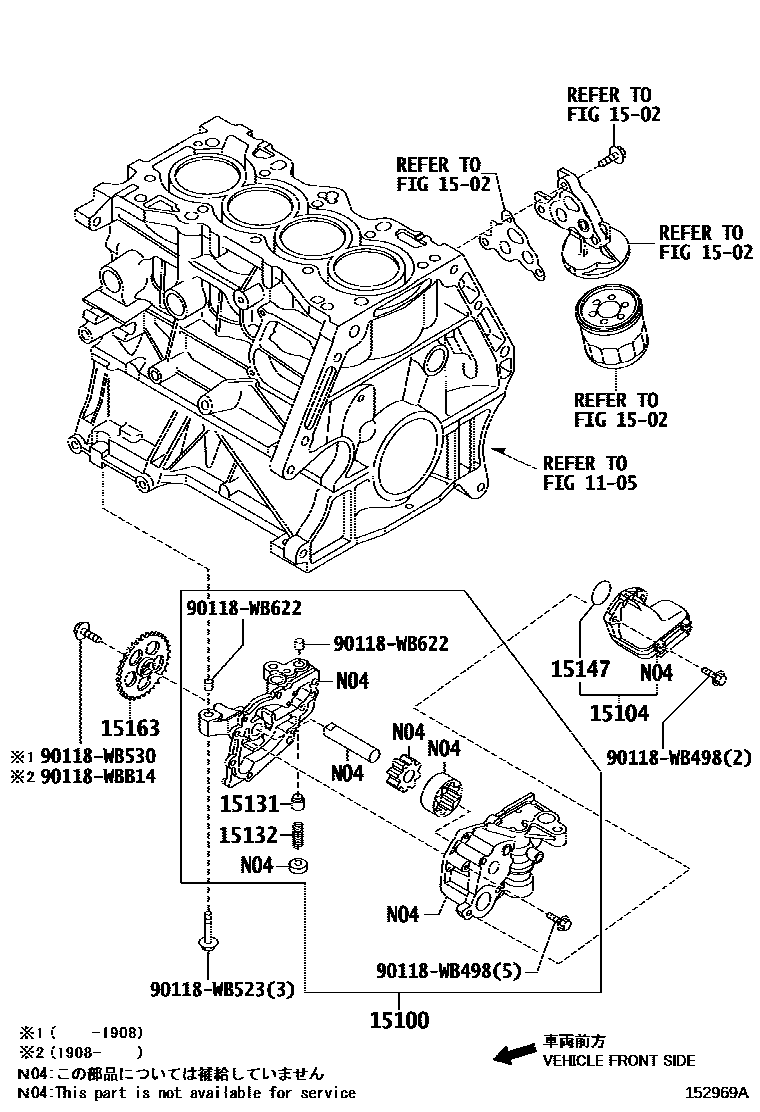

Toyota YARIS Engine Oil Pump — Figure 1501
Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-WB001 |
| 15104 | Oil filter sub-assembly | 15104-WB001 |
| 15131 | Oil pump pressure reducing valve | 15131-WB001 |
| 15132 | Oil pump pressure reducing valve spring | 15132-WB001 |
| 15147 | Oil filter gasket | 15147-WB001 |
| 15163 | Oil pump drive shaft gear | 35783-WB002 · 35783-WB004 |
