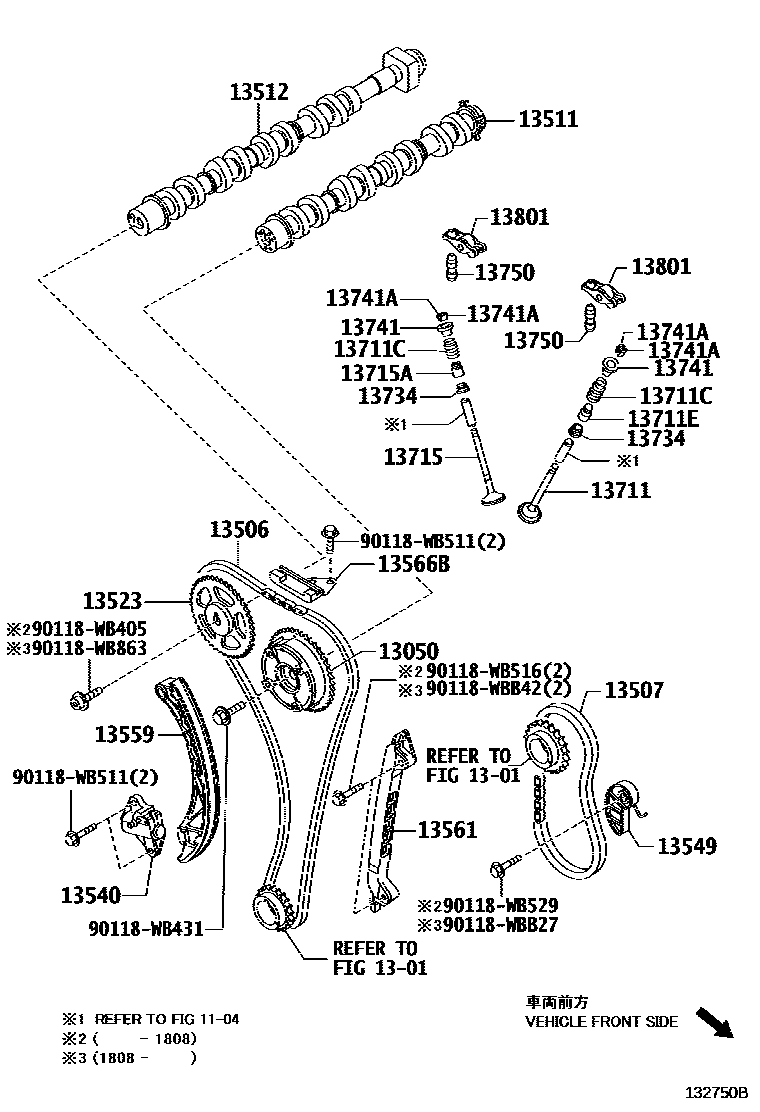

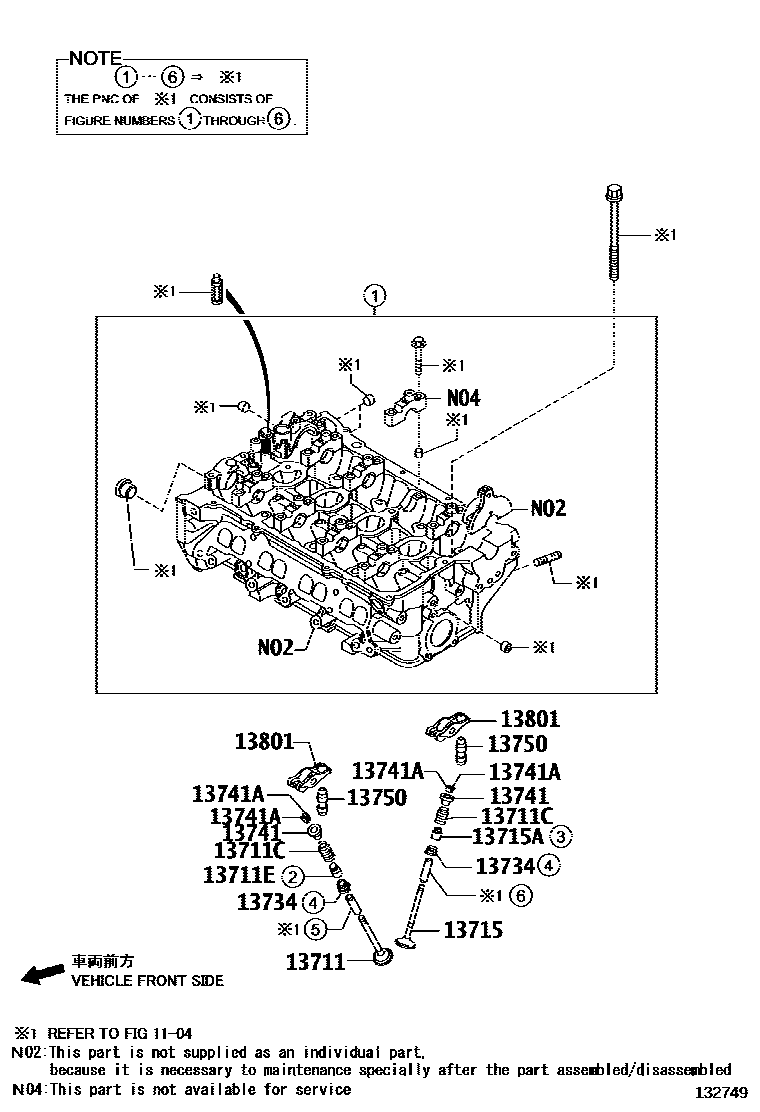

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13520-WB001 · 13520-WB002 |
| 13506 | Chain sub-assembly | 13506-WB001 · 13506-WB002 |
| 13507 | No. 2 chain sub-assembly | 13507-WB001 · 13507-WB003 |
| 13511 | camshaft | 13501-WB001 |
| 13512 | Camshaft No. 2 | 13502-WB001 |
| 13523 | Camshaft timing gear or sprocket | 13523-WB001 |
| 13540 | No. 1 chain tensioner assembly | 13540-WB001 · 13540-WB002 |
| 13549 | chain tensioner pressure plate | 13550-WB001 |
| 13559 | chain tensioner guide plate | 13591-WB001 · 13591-WB002 |
| 13561 | No. 1 chain shock absorber | 13566-WB001 · 13566-WB002 |
| 13566B | Timing chain guide plate | 13562-WB001 |
| 13711 | intake valve | 13711-WB001 |
| 13711C | Compression spring (for outside) | 90118-WB462 · 90118-WB463 |
| 13711E | Intake valve stem oil seal | 90118-WB425 · 90118-WBC07 |
| 13715 | exhaust valve | 13715-WB001 |
| 13715A | Exhaust valve stem oil seal | 90118-WB424 · 90118-WBC06 |
| 13734 | Valve spring seat | 13734-WB001 |
| 13741 | Valve spring seat ring | 13741-WB001 |
| 13741A | Valve spring seat lock plate | 90118-WB412 |
| 13750 | Valve lash adjuster assembly | 13750-WB001 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-WB001 · 13801-WB002 |
