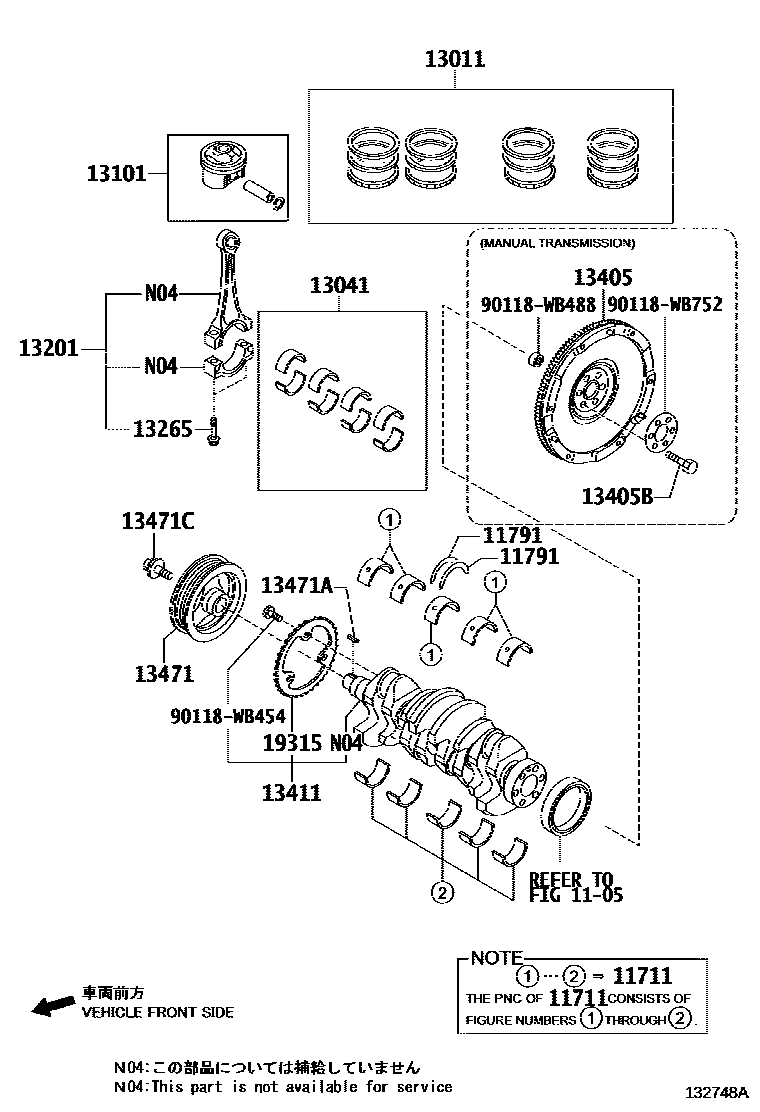

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11711 | crankshaft bearings | 11701-WB001 · 11704-WB001 · 11705-WB001 |
| 11791 | Thrust washer on crankshaft | 11791-WB001 · 11791-WB002 |
| 13011 | Piston ring assembly | 13011-WB001 |
| 13041 | Connecting rod bearing | 13041-WB001 · 13204-WB001 · 13205-WB001 |
| 13101 | Piston sub-assembly with pin | 13101-WB001 |
| 13201 | Connecting rod sub-assembly | 13201-WB001 |
| 13265 | Connecting rod bolts | 13265-WB001 |
| 13405 | Flywheel sub-assembly | 13405-WB001 |
| 13405B | Flywheel fixing bolt | 90118-WB411 |
| 13411 | crankshaft | 13401-WB001 · 13401-WB002 |
| 13471 | crankshaft pulley | 13470-WB001 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90118-WB429 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90118-WB430 |
| 13519 | Oil pump driving gear | 17662-WB001 · 17662-WB003 |
| 13521 | Crankshaft timing gear or sprocket | 13521-WB001 · 13521-WB002 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-WB001 |
