Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 3 images and 4 PNC and OE references.

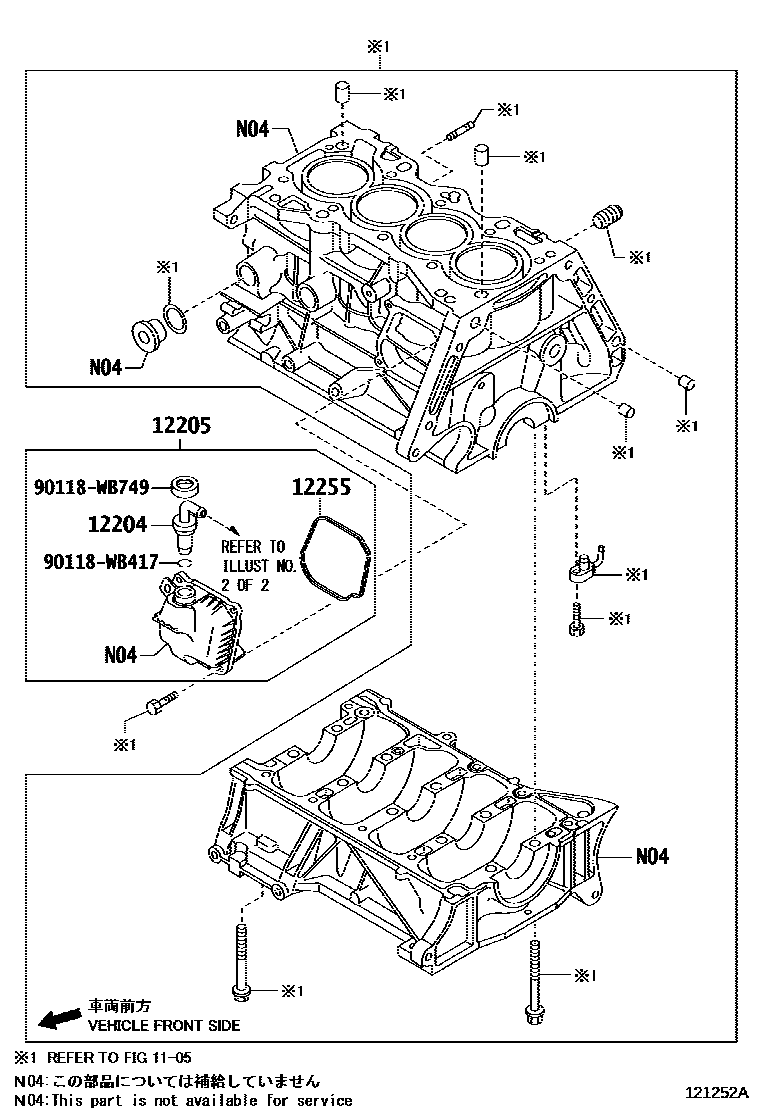

Toyota YARIS Ventilation Hose EPC diagram — 121252A
Ventilation Hose — 121252A (201506 – 201908)

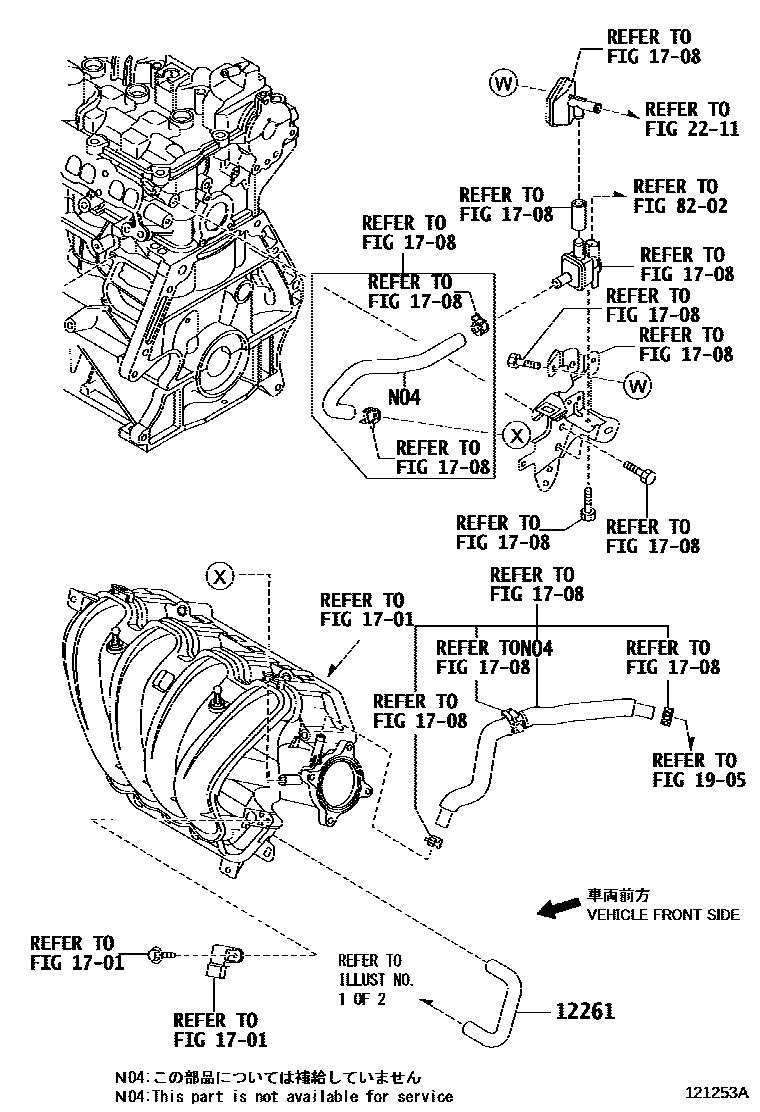

Toyota YARIS Ventilation Hose EPC diagram — 121253A
Ventilation Hose — 121253A (201506 – 999999)

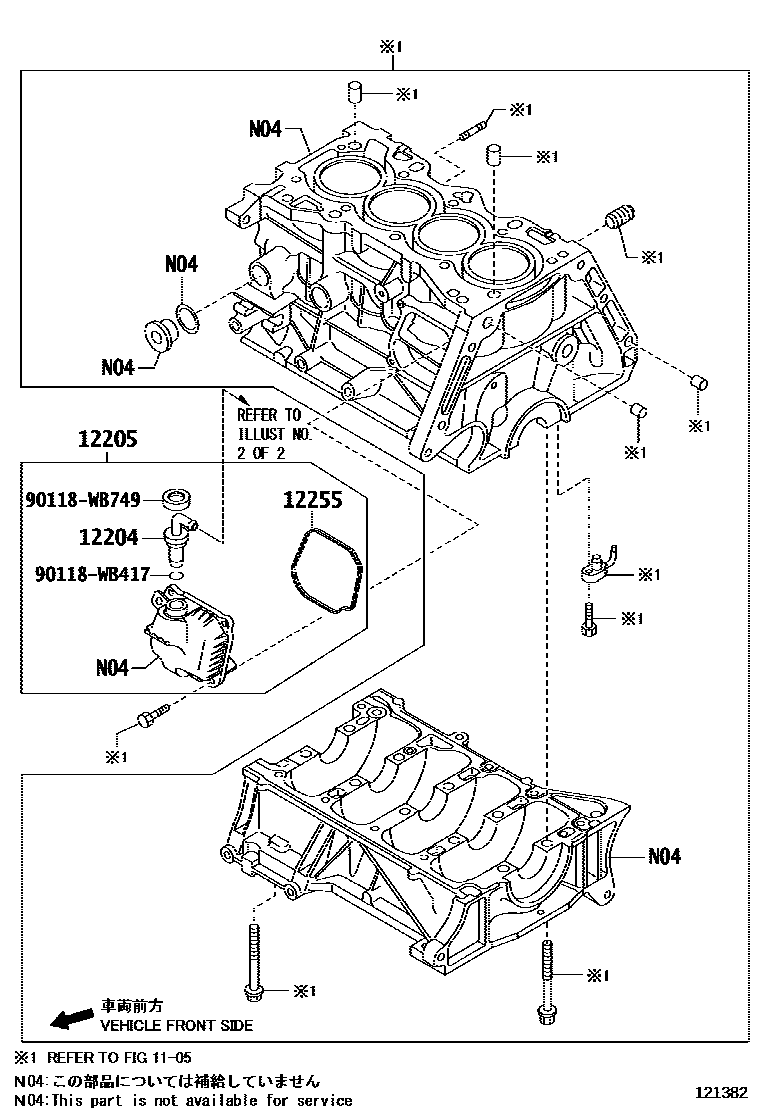

Toyota YARIS Ventilation Hose EPC diagram — 121382
Ventilation Hose — 121382 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-WB001
12205Ventilation box sub-assembly12205-WB001
12255Ventilation padding12255-WB001
12261Ventilation Hose12261-WB001 · 12261-WB002
