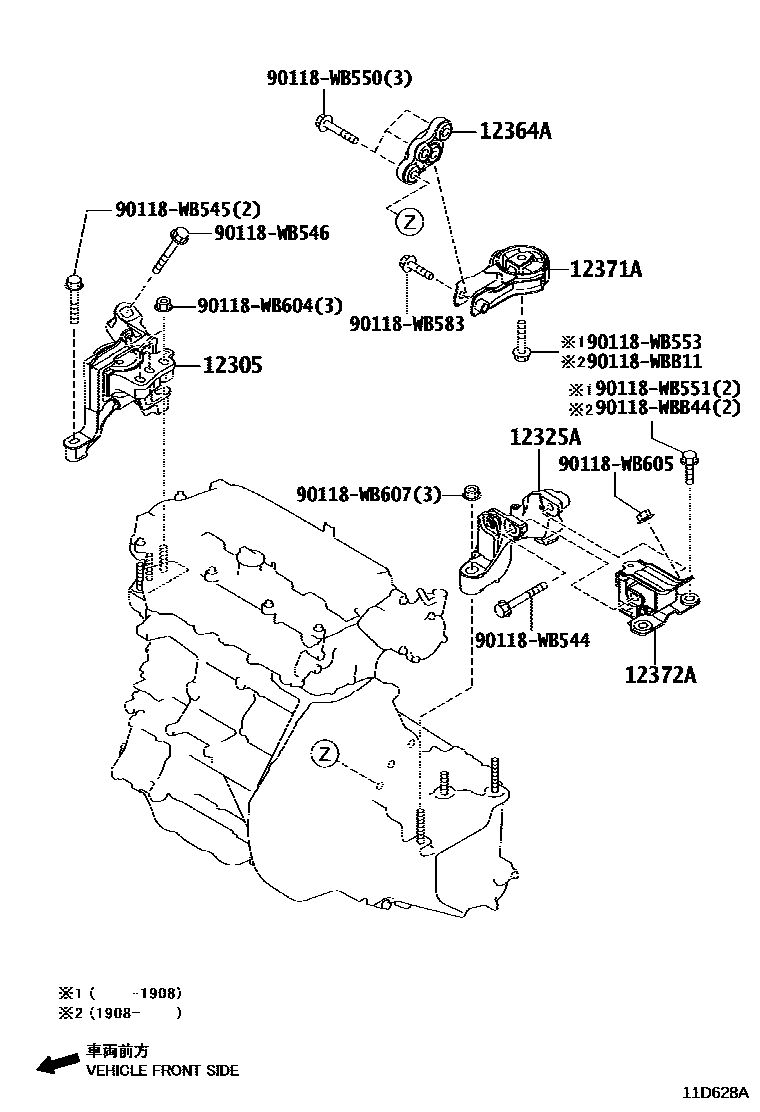

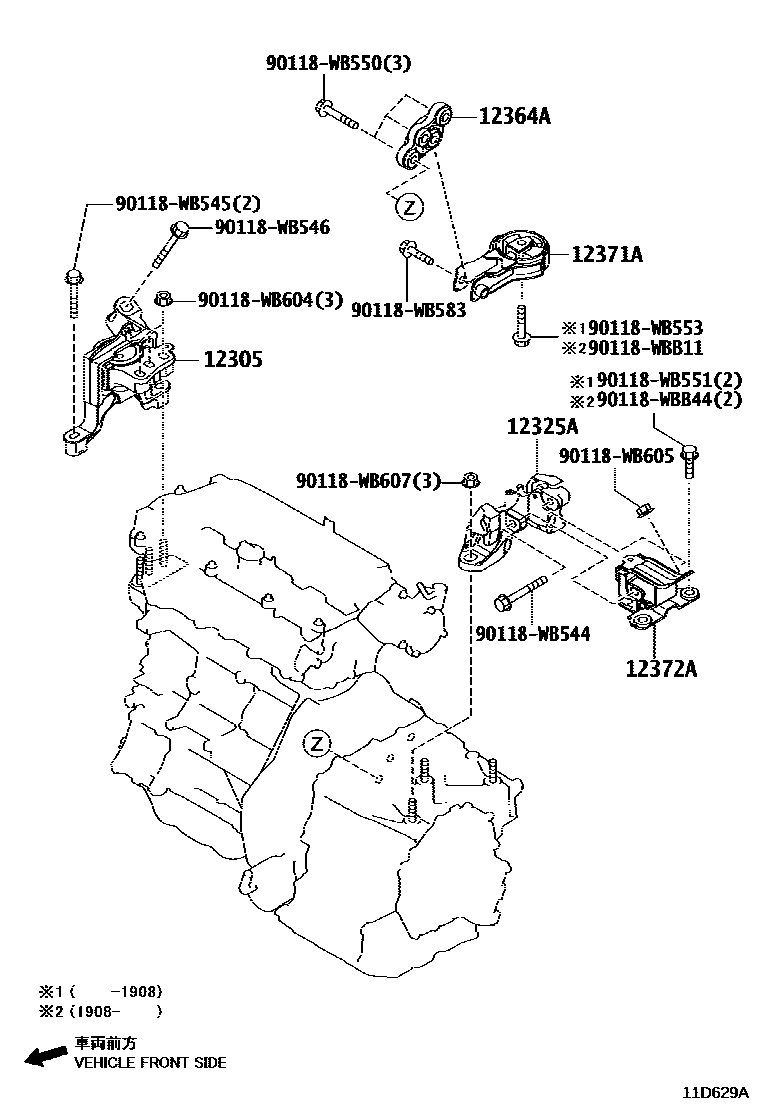

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-WB001 · 12305-WB002 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-WB001 · 12325-WB002 |
| 12364A | Engine lateral control lever | 12364-WB001 |
| 12371A | Engine rear mount vibration isolation pad | 12371-WB001 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-WB001 · 12372-WB002 |
