Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 4 PNC and OE references.

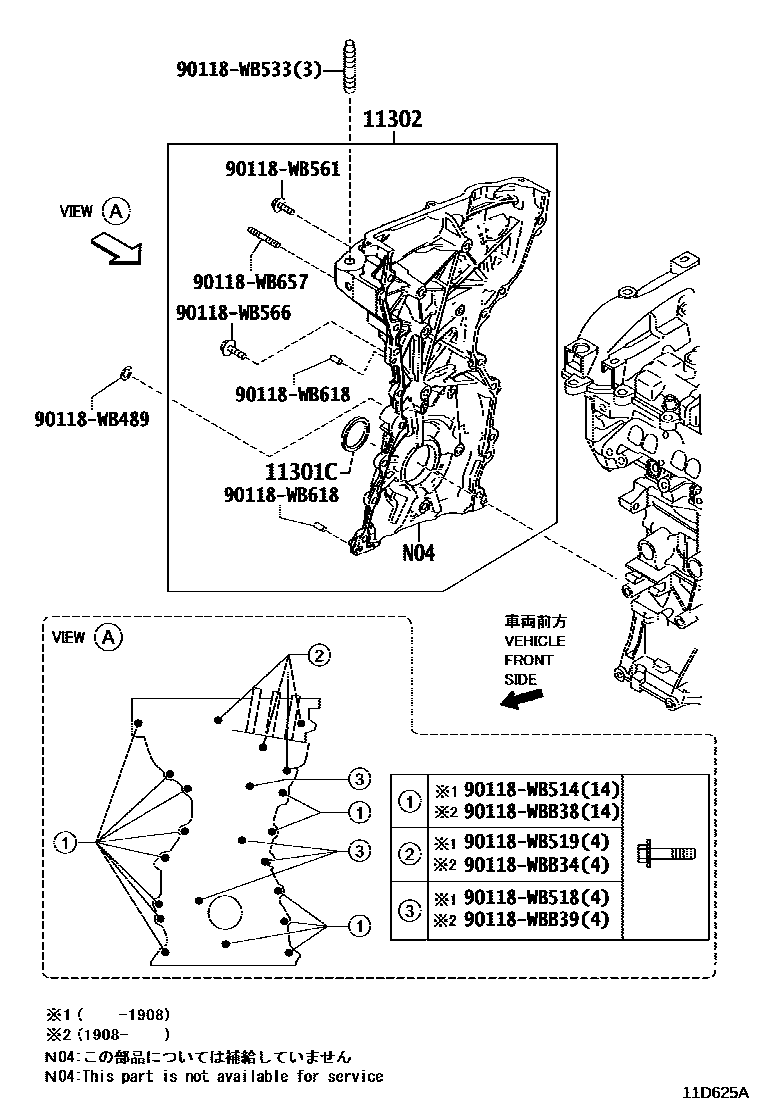

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11D625A
Timing Gear Cover & Rear End Plate — 11D625A (201506 – 999999)
Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11D626
Timing Gear Cover & Rear End Plate — 11D626 (201506 – 999999)
Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11D627
Timing Gear Cover & Rear End Plate — 11D627 (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90118-WB427
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-WB001
11355rear end plate11355-WB001 · 11355-WB002 · 11355-WB003
16620DPoly V-belt tensioner assembly16620-WB002
