Toyota YARIS Cylinder Block — Figure 1105

Toyota YARIS EPC diagram 1105, Cylinder Block, with 7 images and 12 PNC and OE references.

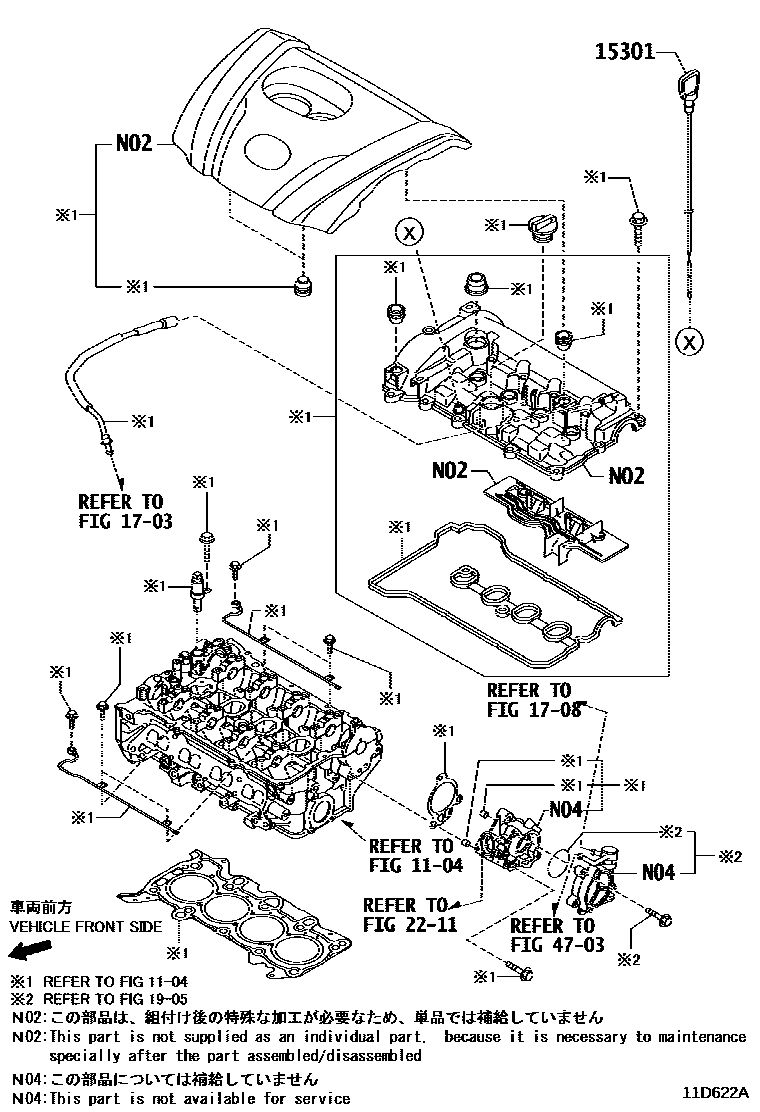

Toyota YARIS Cylinder Block EPC diagram — 11D622A
Cylinder Block — 11D622A (201506 – 201908)

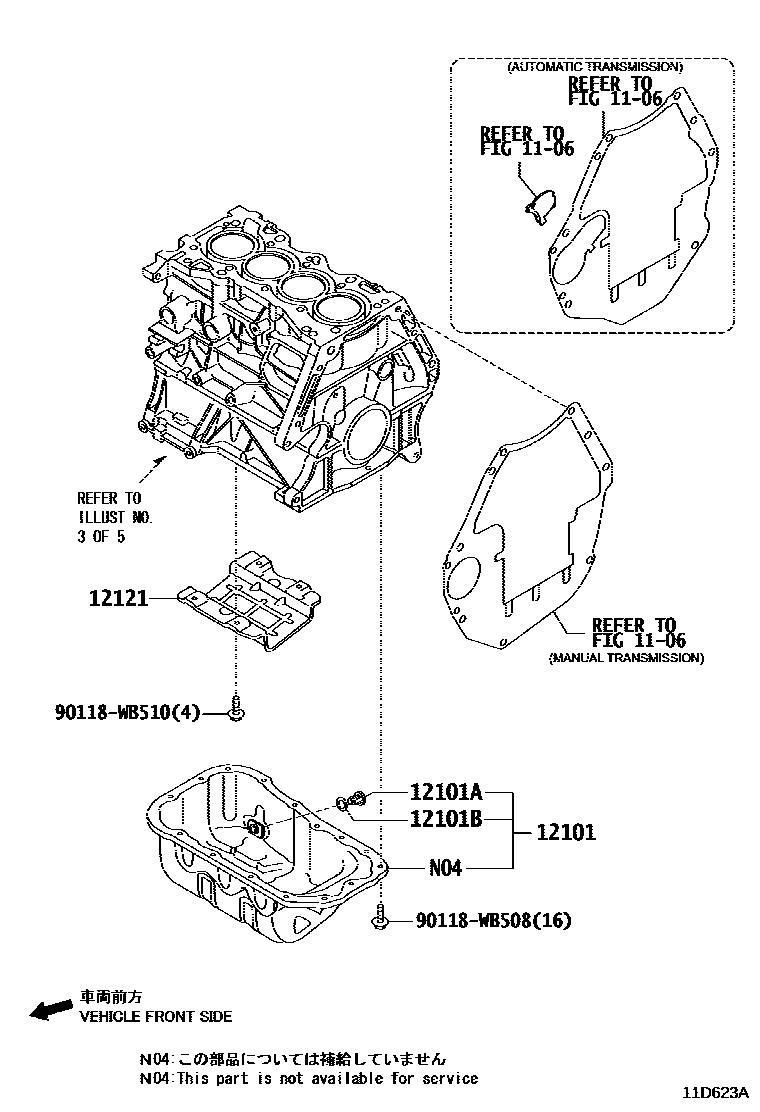

Toyota YARIS Cylinder Block EPC diagram — 11D623A
Cylinder Block — 11D623A (201506 – 999999)

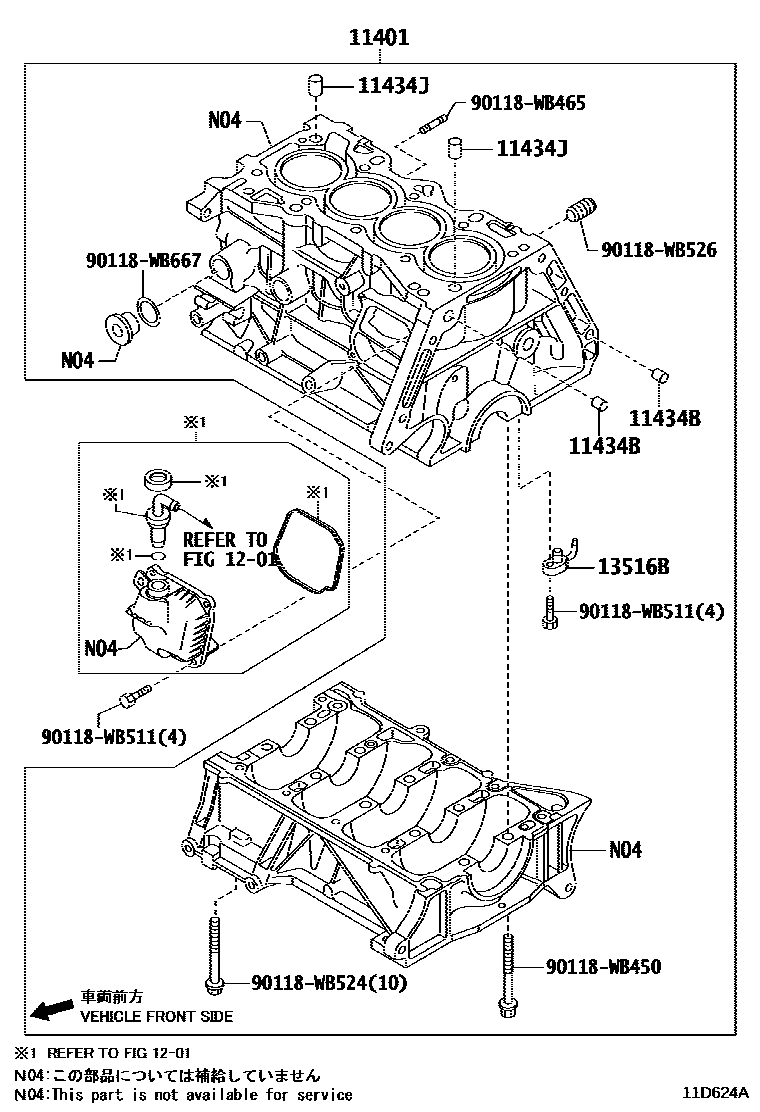

Toyota YARIS Cylinder Block EPC diagram — 11D624A
Cylinder Block — 11D624A (201506 – 201908)

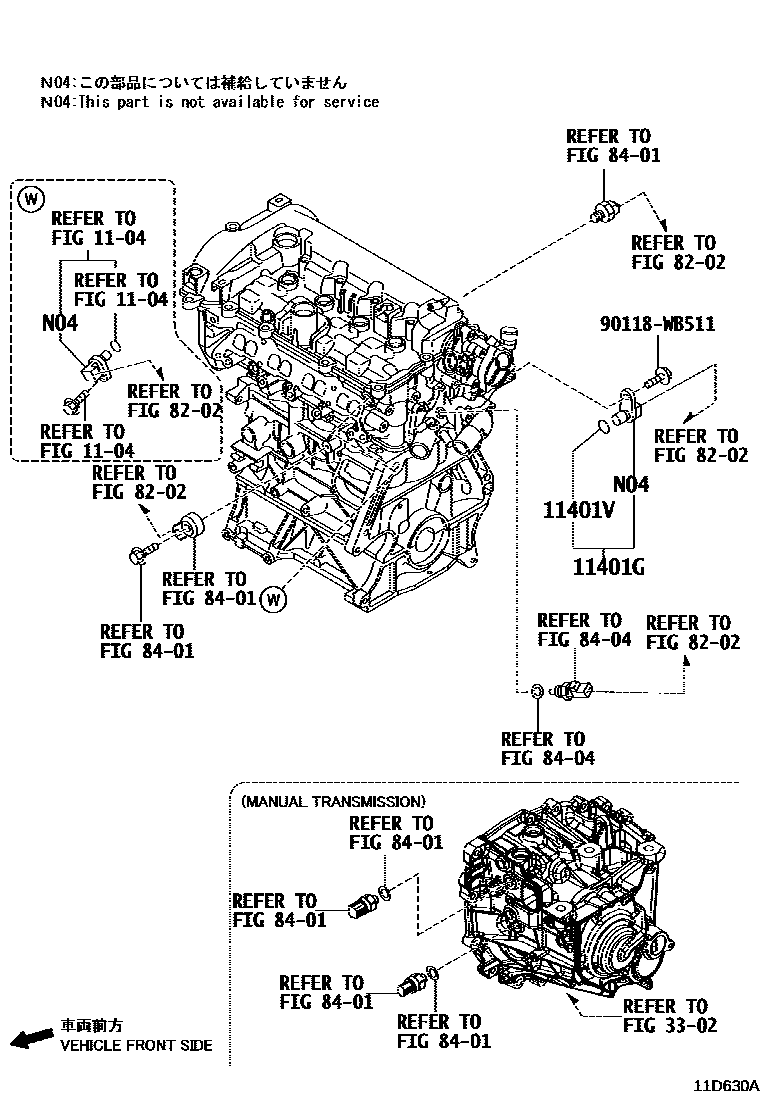

Toyota YARIS Cylinder Block EPC diagram — 11D630A
Cylinder Block — 11D630A (201506 – 999999)

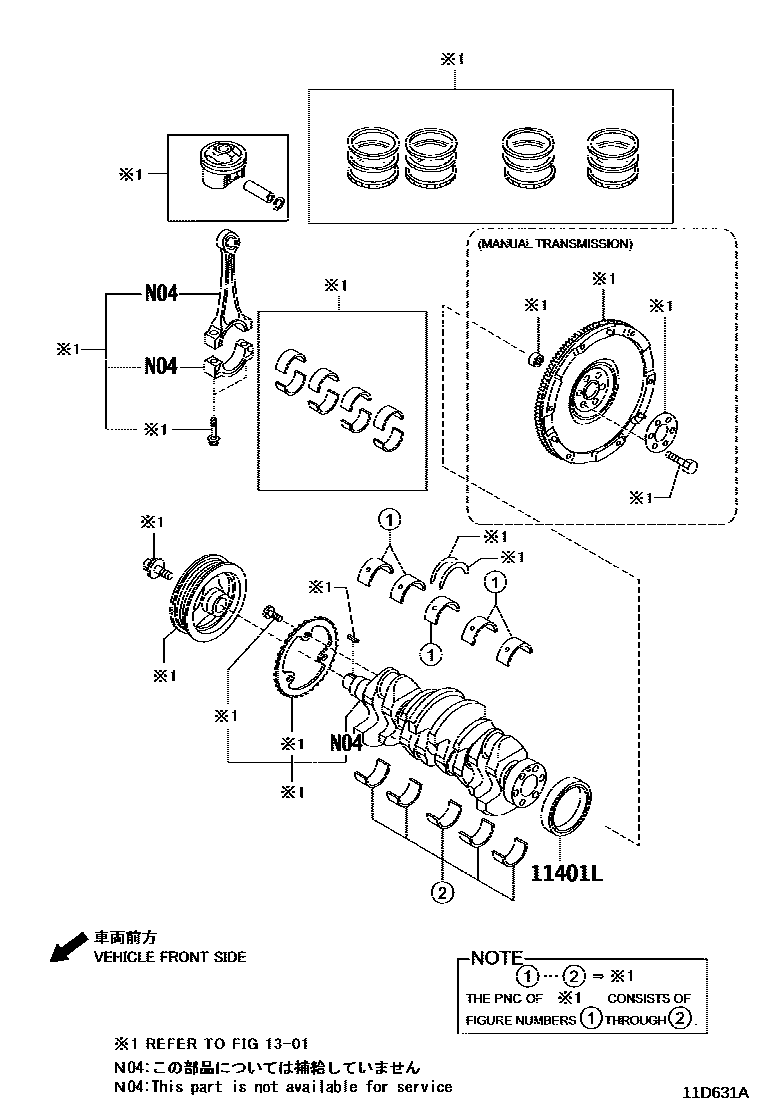

Toyota YARIS Cylinder Block EPC diagram — 11D631A
Cylinder Block — 11D631A (201506 – 999999)

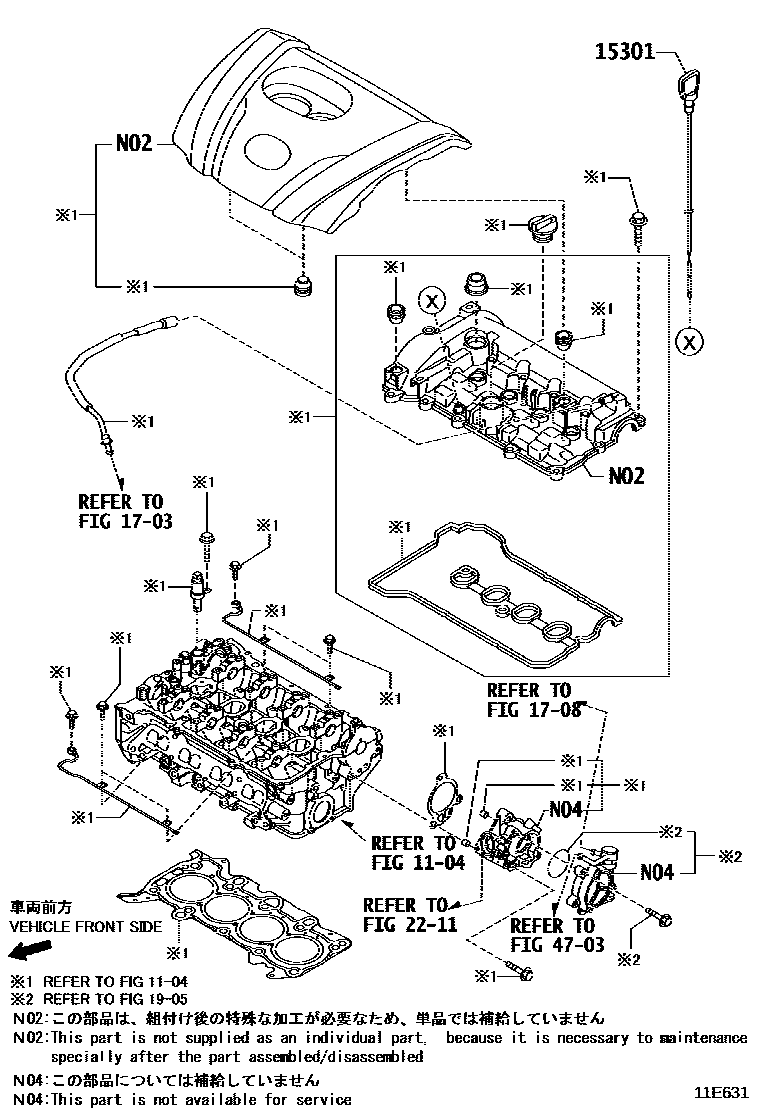

Toyota YARIS Cylinder Block EPC diagram — 11E631
Cylinder Block — 11E631 (201908 – 999999)

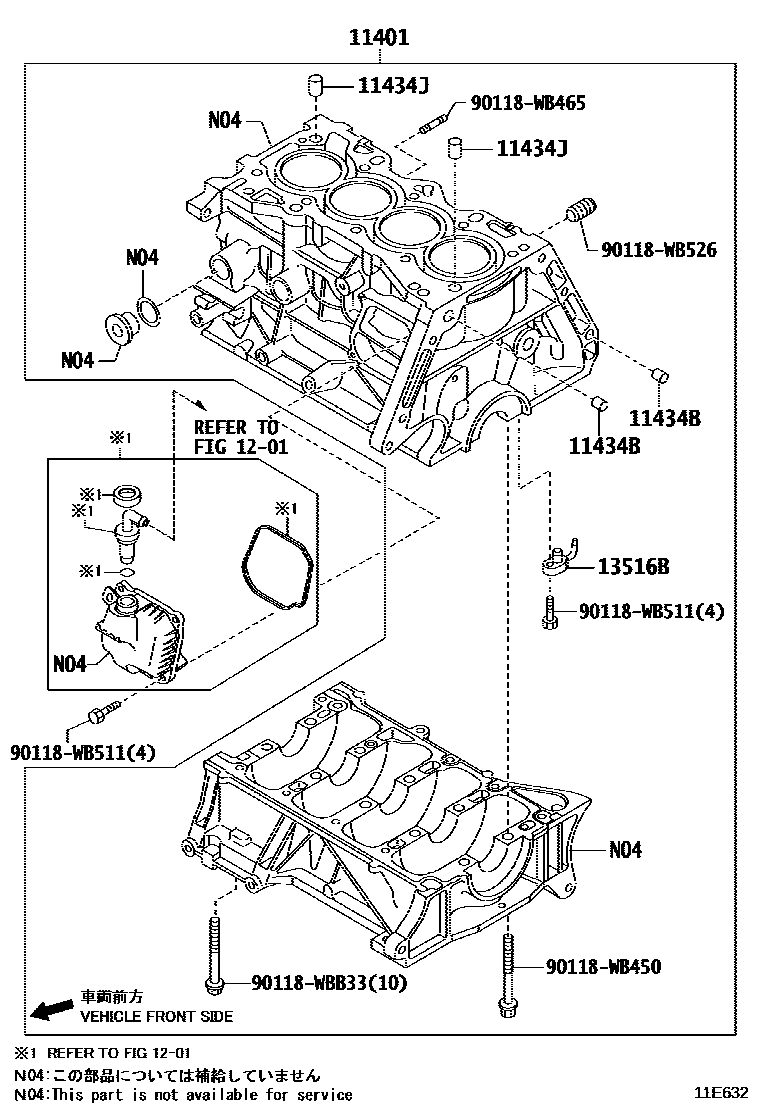

Toyota YARIS Cylinder Block EPC diagram — 11E632
Cylinder Block — 11E632 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
11401Cylinder block sub-assembly11410-WB001 · 11410-WB002 · 11410-WB003
11401Gcrankshaft position sensor90118-WB438
11401LSEAL, ENGINE REAR OIL90118-WB428
11401VJOINT TORIQUE, CAPTEUR POSITION VILEBREQUIN90118-WB437
11434BDirect sales (for clutch housing assembly)90118-WB410
11434JRing pin (for cylinder head assembly)90118-WB624
12101Oil pan sub-assembly12101-WB001 · 12101-WB002
12101AScrew plug (for draining oil from the oil pan)90118-WB139 · 90118-WBB26
12101BGasket (for oil pan drain plug)90118-WB669
12121No. 1 oil pan baffle12121-WB001 · 12121-WB002
13516Boil nozzle15708-WB001 · 15708-WB002
15301Engine oil level scoring assembly15301-WB001
