Toyota YARIS Cylinder Head — Figure 1104

Toyota YARIS EPC diagram 1104, Cylinder Head, with 5 images and 17 PNC and OE references.

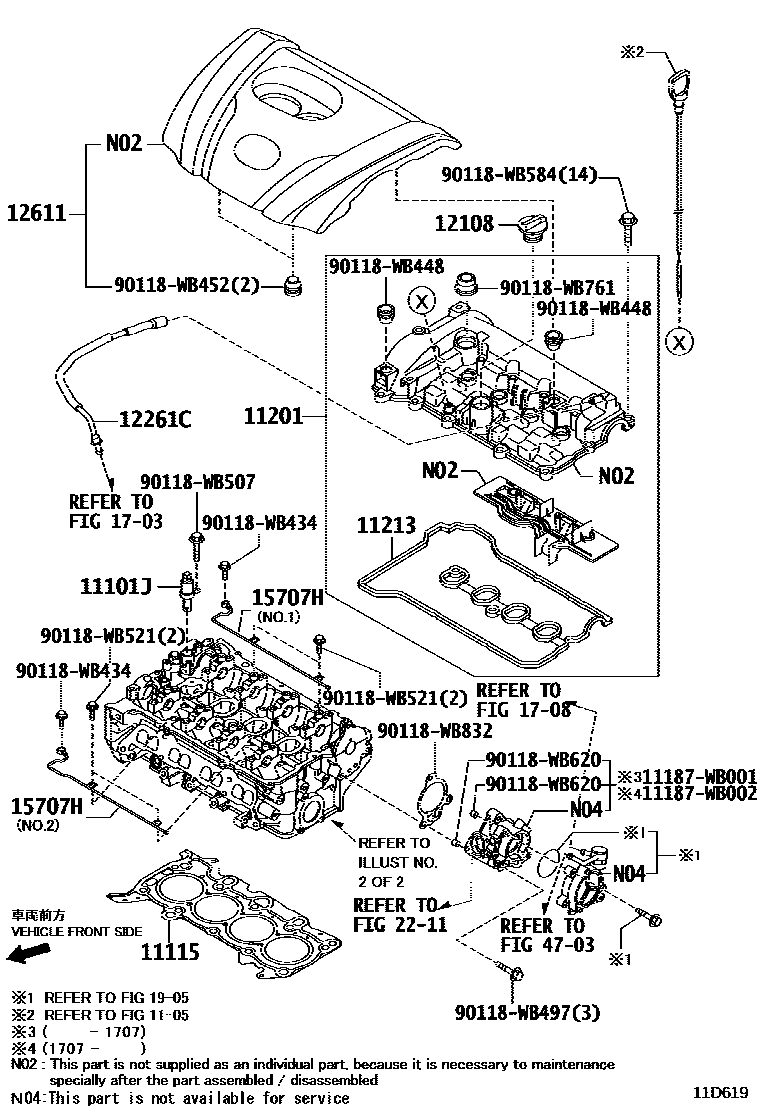

Toyota YARIS Cylinder Head EPC diagram — 11D619
Cylinder Head — 11D619 (201506 – 201908)

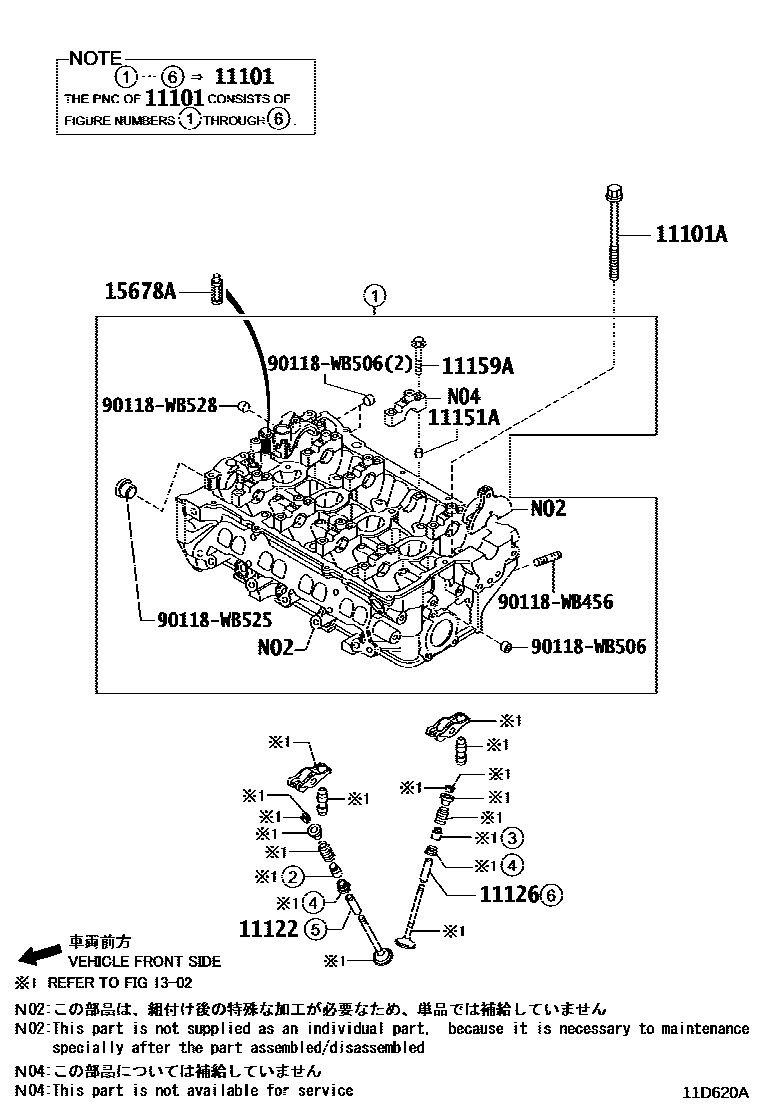

Toyota YARIS Cylinder Head EPC diagram — 11D620A
Cylinder Head — 11D620A (201506 – 202005)

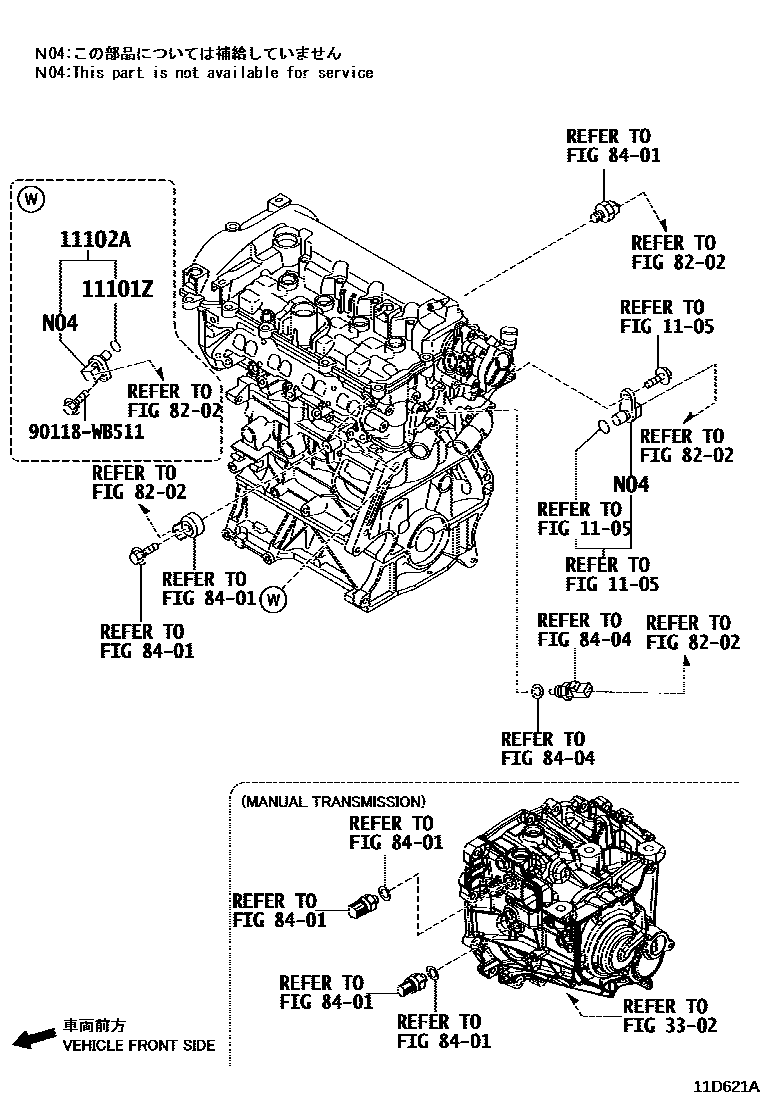

Toyota YARIS Cylinder Head EPC diagram — 11D621A
Cylinder Head — 11D621A (201506 – 999999)

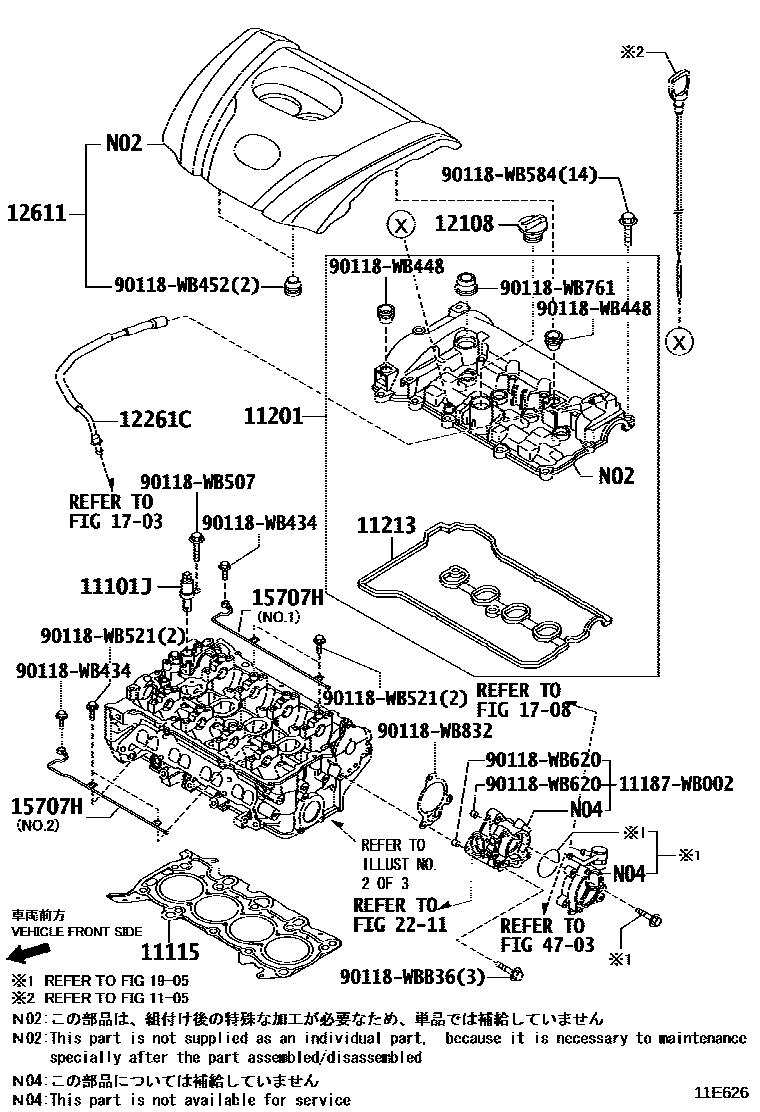

Toyota YARIS Cylinder Head EPC diagram — 11E626
Cylinder Head — 11E626 (201908 – 999999)

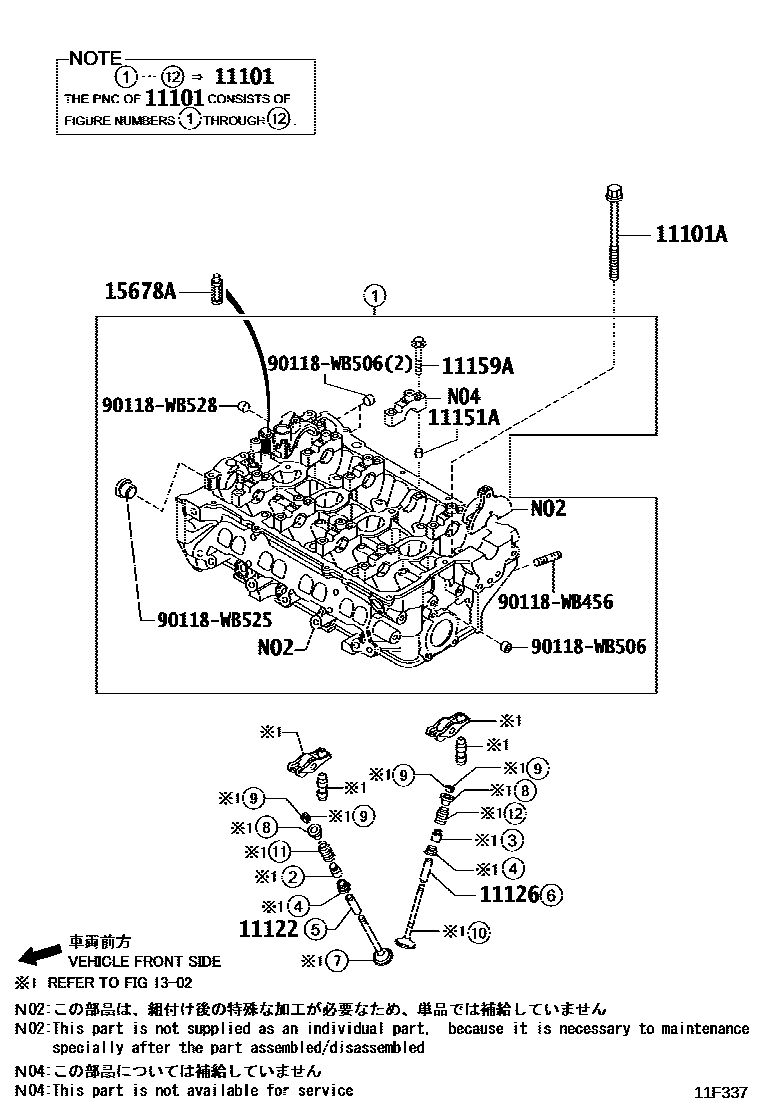

Toyota YARIS Cylinder Head EPC diagram — 11F337
Cylinder Head — 11F337 (202005 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-WB001 · 11101-WB002
11101ABOLT (FOR CYLINDER HEAD)90118-WB451 · 90118-WBB03
11101JCamshaft timing oil control valve assembly15330-WB001 · 15330-WB002
11101ZJOINT TORIQUE, CAPTEUR DE POSITION D'ARBRE A CAMES90118-WB442
11102ACamshaft position sensor90118-WB439
11115GASKET, CYLINDER HEAD11115-WB001
11122BUSH, INTAKE VALVE GUIDE11122-WB001
11126BUSH, EXHAUST VALVE GUIDE11122-WB002
11151ARing pin (for securing camshaft bearing cap)90118-WB619
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90118-WB426 · 90118-WBA13
11201CYLINDER HEAD COVER SUB-ASSY11201-WB001 · 11201-WB002
11213GASKET, CYLINDER HEAD COVER11213-WB001
12108OIL FILLER CAP SUB-ASSY12180-WB001 · 12180-WB002
12261CVentilation Hose12229-WB001
12611Engine hood No. 111212-WB001
15678AOil control valve filter15678-WB001
15707HSOUS-ENSEMBLE TUYAU, HUILE15707-WB001 · 15707-WB002
