Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 3 images and 5 PNC and OE references.

Toyota YARIS Standard Tools EPC diagram — 090792
Standard Tools — 090792 (201506 – 999999)

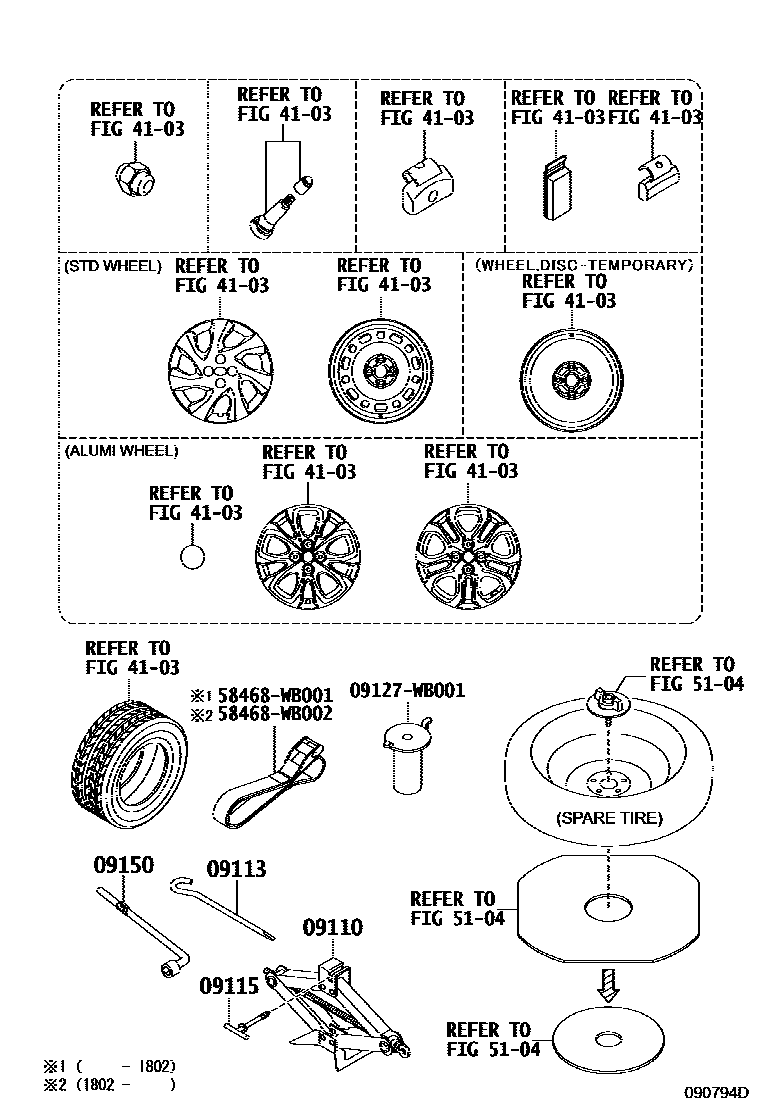

Toyota YARIS Standard Tools EPC diagram — 090794D
Standard Tools — 090794D (201506 – 201808)

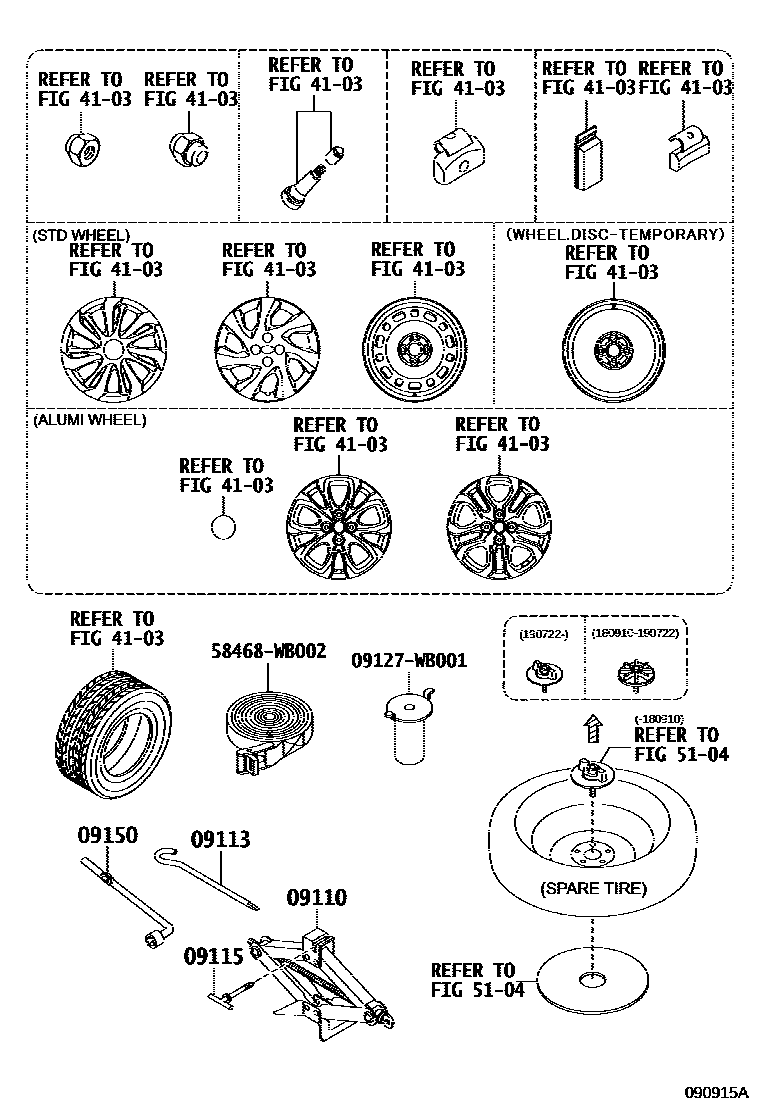

Toyota YARIS Standard Tools EPC diagram — 090915A
Standard Tools — 090915A (201808 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09110-WB001 · 09110-WB002
09113Jack Handle09113-WB001
09115Jack Handle Rod Sub-Assembly09115-WB001
09120Tool Bag09120-WB001 · 09120-WB003 · 09120-WB004
09150Wheel Nut Wrench09150-WB001 · 09150-WB002
