Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

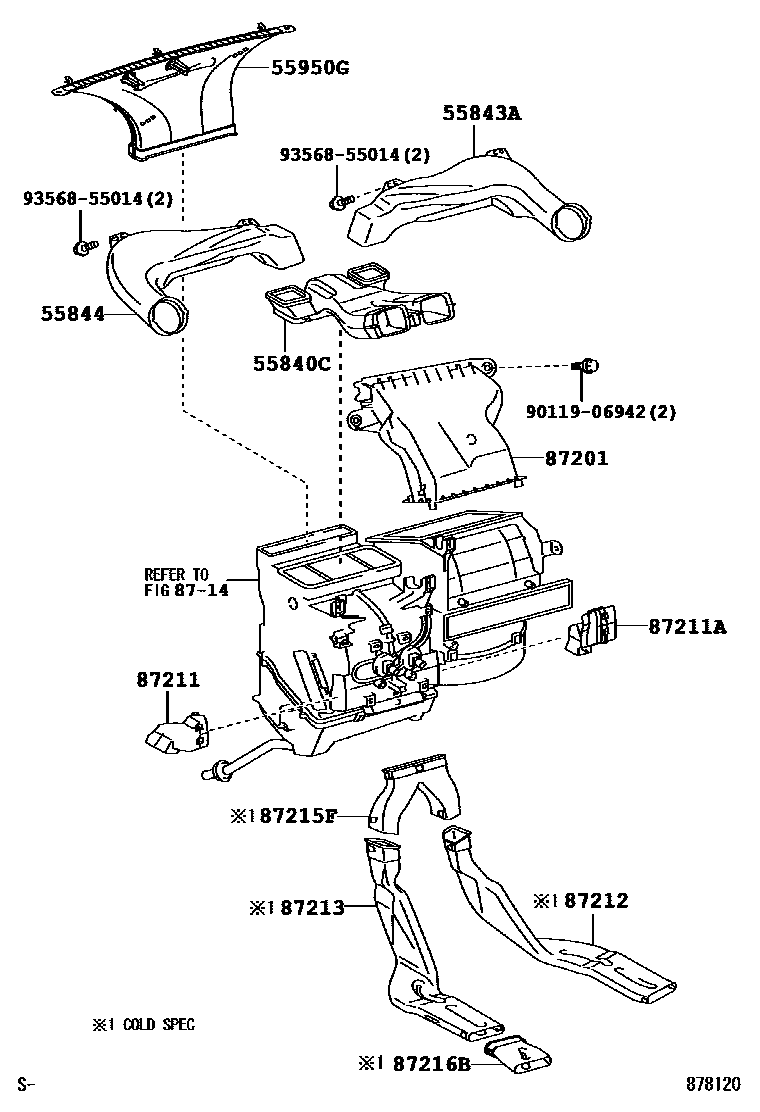

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-52040 |
| 55843A | Air duct No. 1 from heater to air register | 55844-52180 |
| 55844 | Air duct No. 2 from heater to air regulator | 55843-52240 |

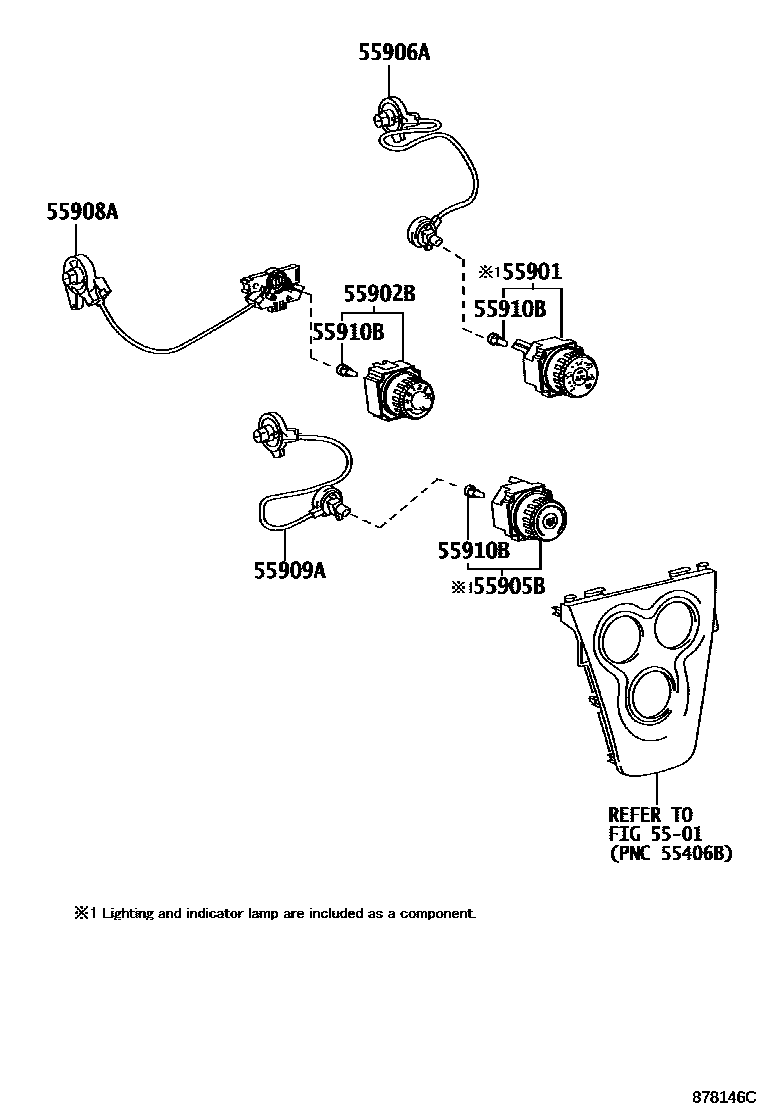

| 55901 | Heater controller base sub-assembly | 55901-52200 · 55901-52210 · 55901-52320 · 55901-52340 · 55901-52350 |
| 55902B | Heater control sub-assembly | 55902-52070 · 55902-52150 · 55902-52170 |
| 55905B | Heater control button 2 | 55903-52150 · 55903-52160 · 55903-52170 · 55903-52180 · 55903-52190 · 55903-52200 · 55903-52430 · 55903-52440 · 55903-52450 · 55903-52460 · 55903-52470 · 55903-52480 · 55903-52490 · 55903-52500 · 55903-52510 · 55903-52520 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52132 |
| 55908A | Intake air valve control cable sub-assembly | 55908-52120 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |
| 55910B | heater control light bulb | 90010-01112 · 90010-01113 |
| 55950G | Defroster nozzle assembly | 55950-52140 |
| 87201 | No. 1 air duct sub-assembly | 87201-52050 |
| 87211 | No. 1 air duct | 87211-52030 · 87211-52031 |
| 87211A | Duct No. 2 | 87211-52040 |
| 87212 | No. 1 rear air duct | 87212-52100 |
| 87213 | No. 2 rear air duct | 87213-52070 |
| 87215F | No. 3 rear air duct | 87215-52050 |
| 87216B | No. 4 rear air duct | 87216-52040 |

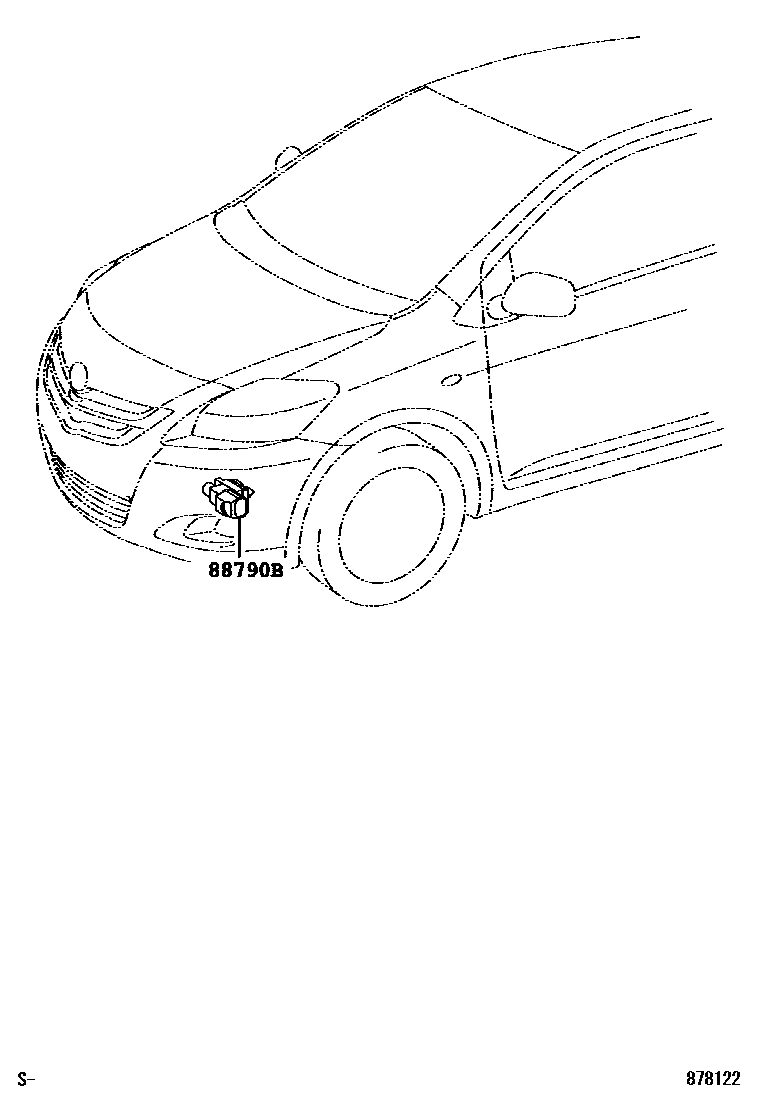

| 88790B | Thermistor assembly | 88790-22131 |
