Toyota YARIS 后视镜 — Figure 8701

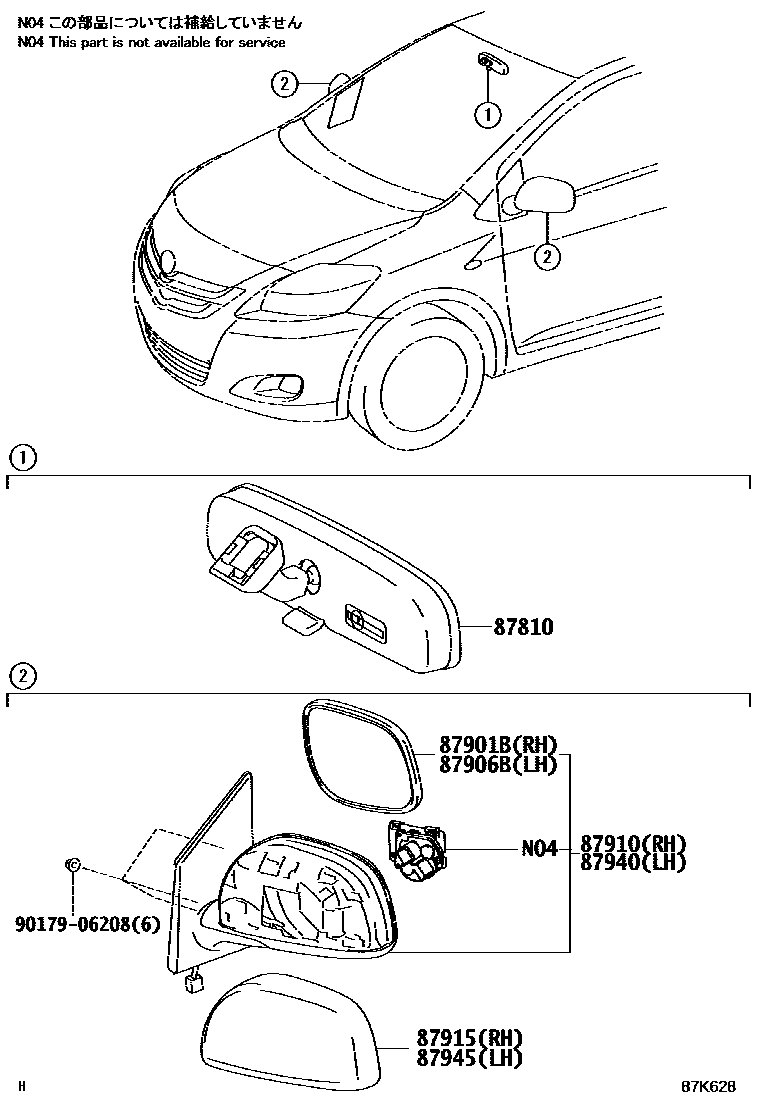

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52040 · 87810-52041 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-52680 · 87931-52A40 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-52660 · 87961-52A20 |
| 87910 | Right exterior rearview mirror assembly | 87910-52790 · 87910-52800 · 87910-52A90 |
| 87915 | Right exterior rearview mirror cover | 87915-52030 |
| 87940 | Left exterior rearview mirror assembly | 87940-52770 · 87940-52780 · 87940-52A70 |
| 87945 | Left exterior rearview mirror cap | 87945-52050 |
