Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

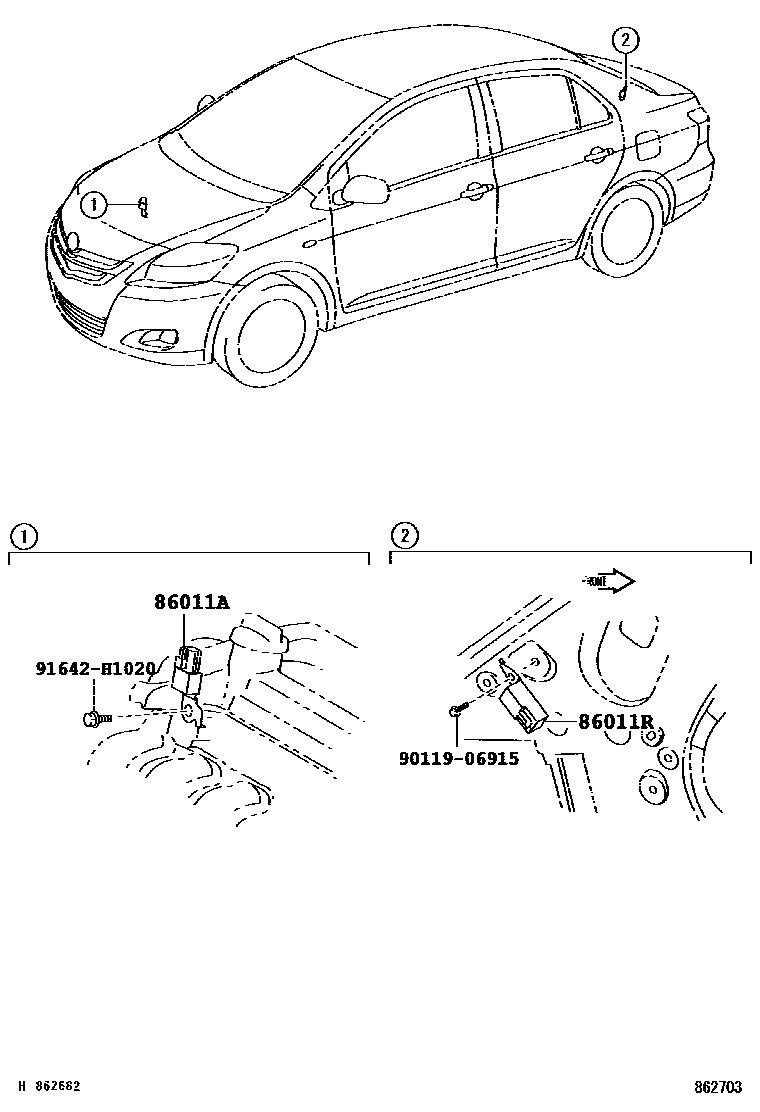

| 86011A | radio settings phase modulator | 90980-04141 |
| 86011R | radio settings phase modulator | 90980-04193 |

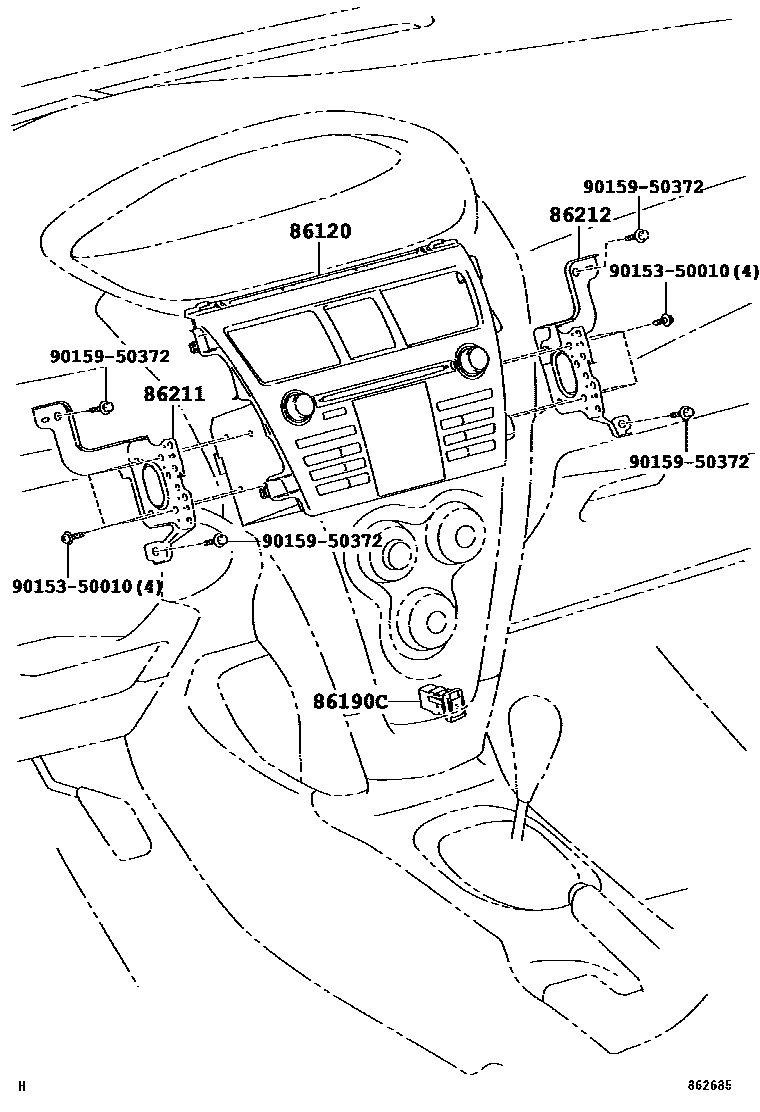

| 86120 | Radio assembly | 86120-52490 · 86120-52510 · 86120-52690 · 86120-52A70 |
| 86120A | Radio switch knob | 90010-23021 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-48010 · 86190-53010 |
| 86211 | No. 1 radio bracket | 86211-52210 · 86211-52220 |
| 86212 | No. 2 radio bracket | 86212-52220 · 86212-52230 |
