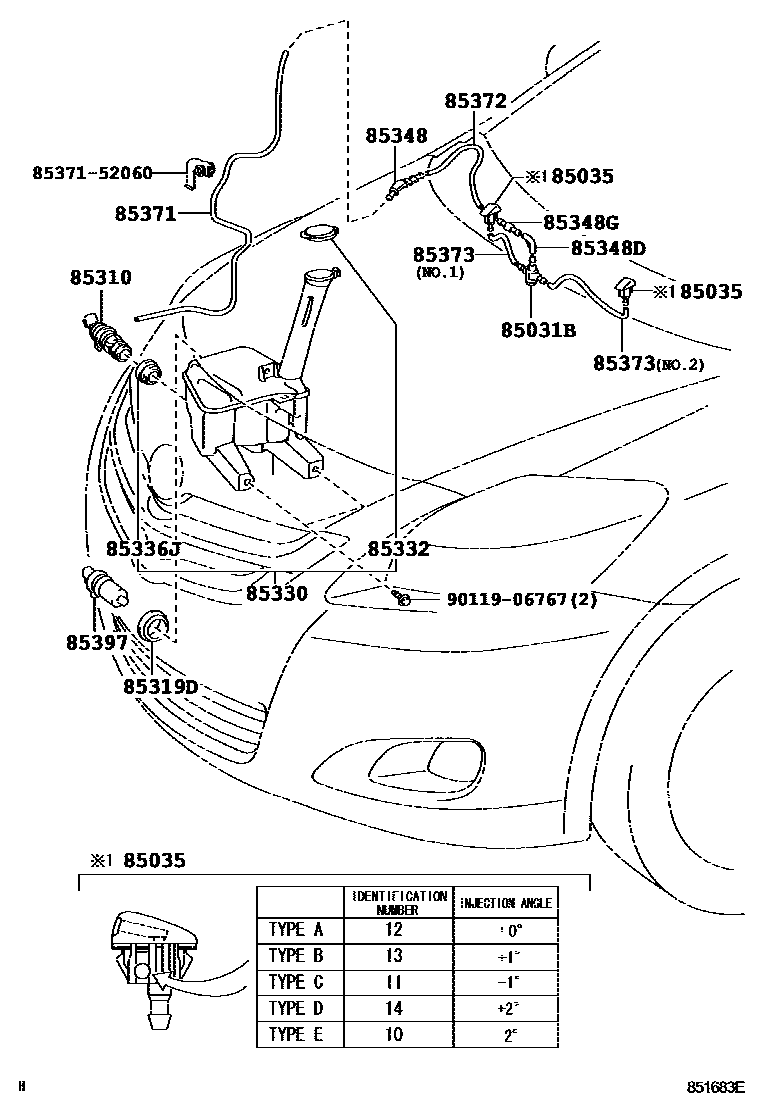

Toyota YARIS 挡风玻璃清洗器 — Figure 8503
Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-30080 |
| 85035 | Cleaner nozzle sub-assembly | 85381-52250 · 85381-52280 · 85381-52290 · 85381-52300 · 85381-52310 |
| 85310 | Windshield washer motor and pump assembly | 85330-60190 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-52210 · 85315-52251 |
| 85332 | Windshield washer fluid tank cap | 85316-16070 · 85316-52190 |
| 85336J | Cleaning fluid tank protection device | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85385-52390 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12230 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85397 | Liquid level warning switch assembly | 85397-33230 |
