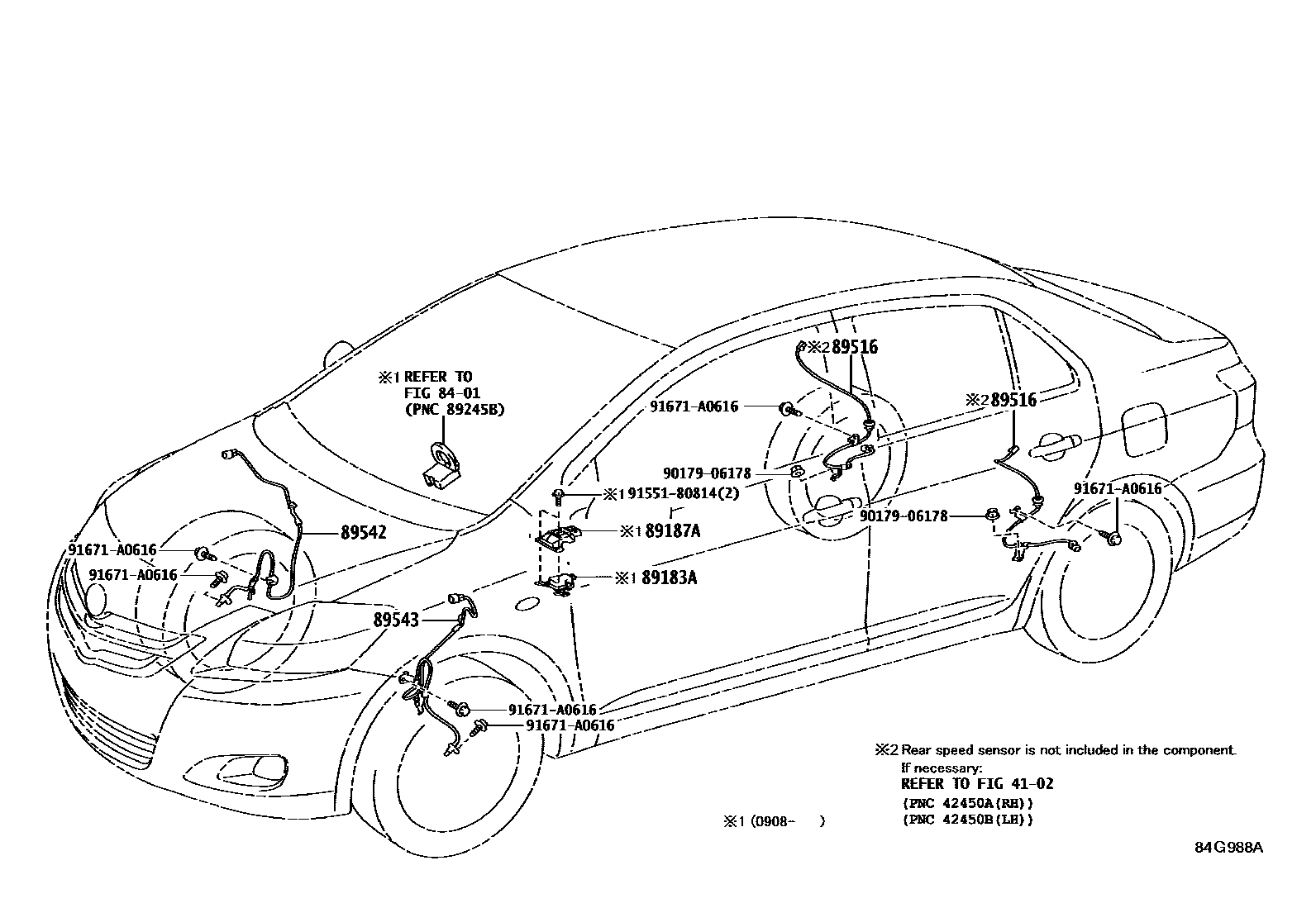

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89183A | Yaw rate sensor | 89180-52050 |
| 89187A | Yaw rate sensor protective cover | 89187-52010 |
| 89516 | Anti-skid control sensor wiring harness | 89516-52090 · 89516-52100 · 89516-52110 · 89516-52120 · 89516-52130 · 89516-52140 |
| 89542 | Right front wheel speed sensor | 89542-52030 · 89542-52060 · 89542-52090 |
| 89543 | Left front wheel speed sensor | 89543-52030 · 89543-52060 · 89543-52090 |
