Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 7 images and 72 PNC and OE references.
PNC and OE references

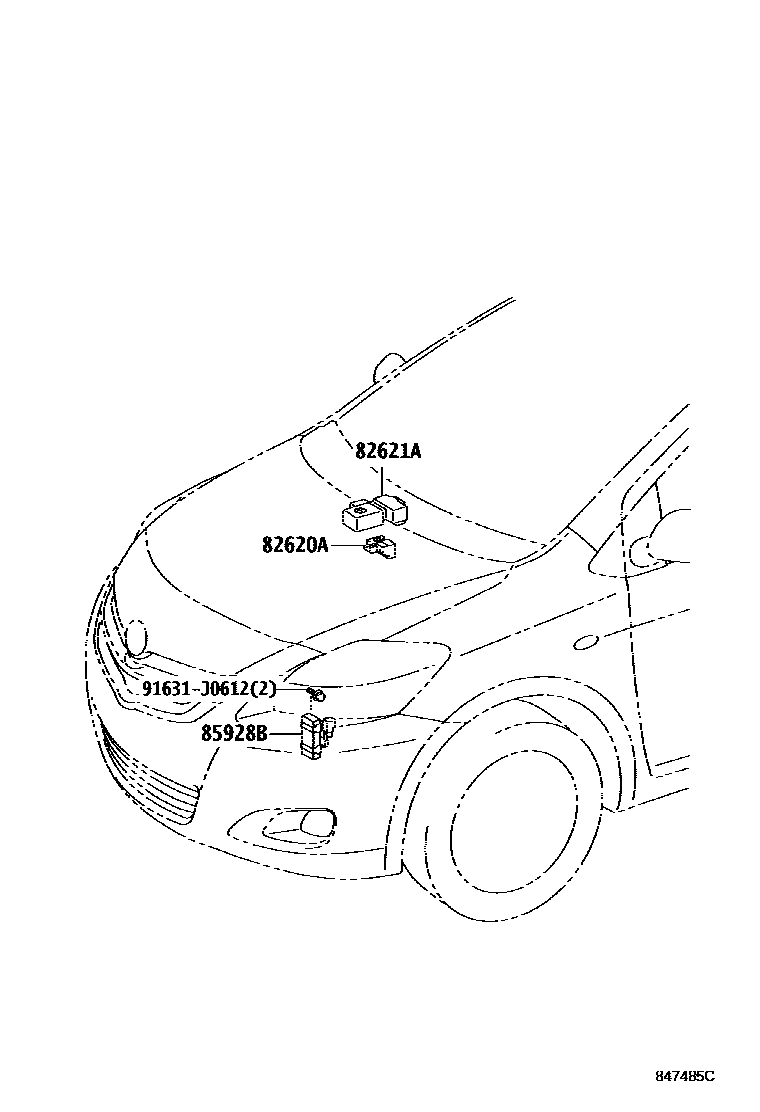

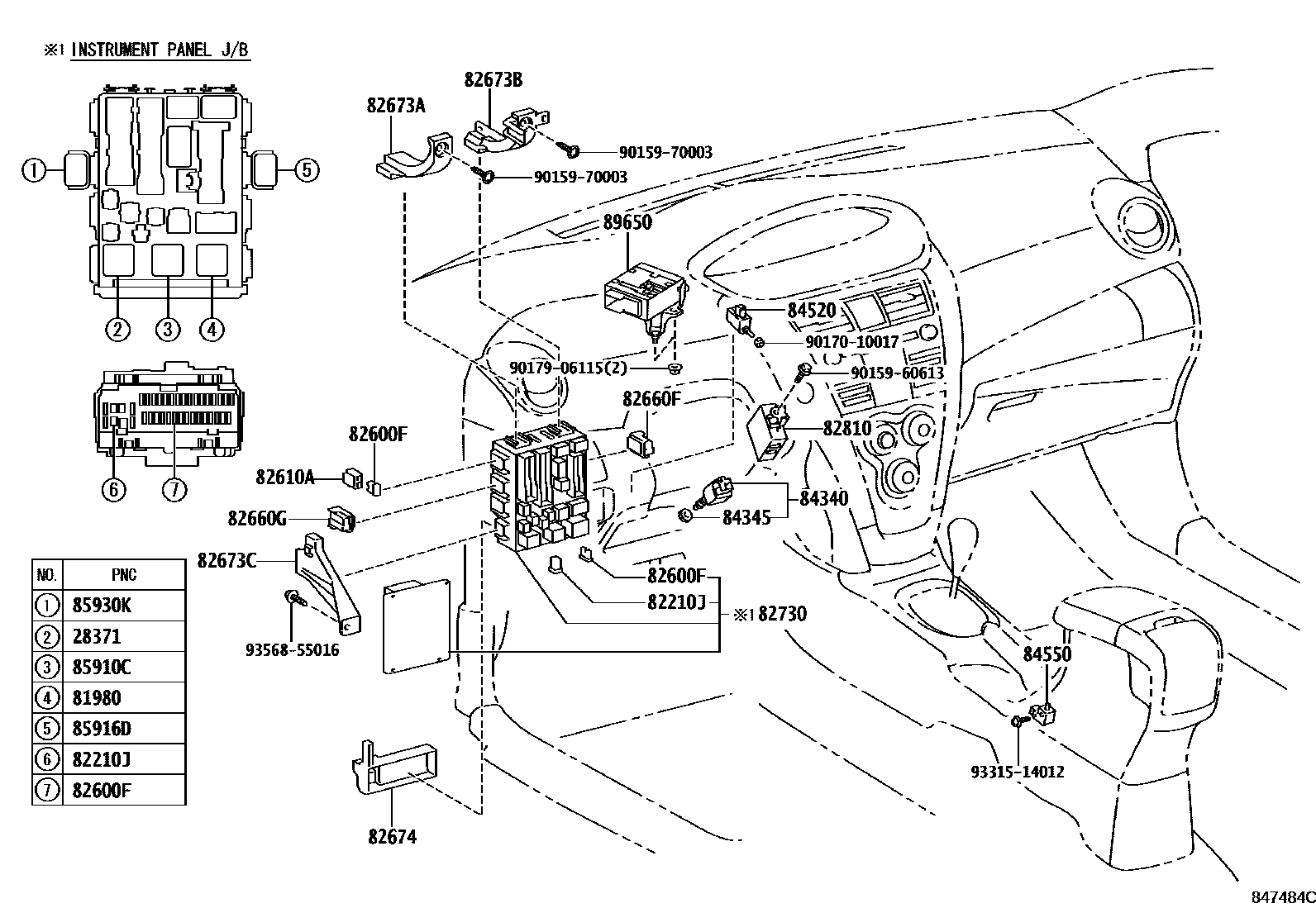

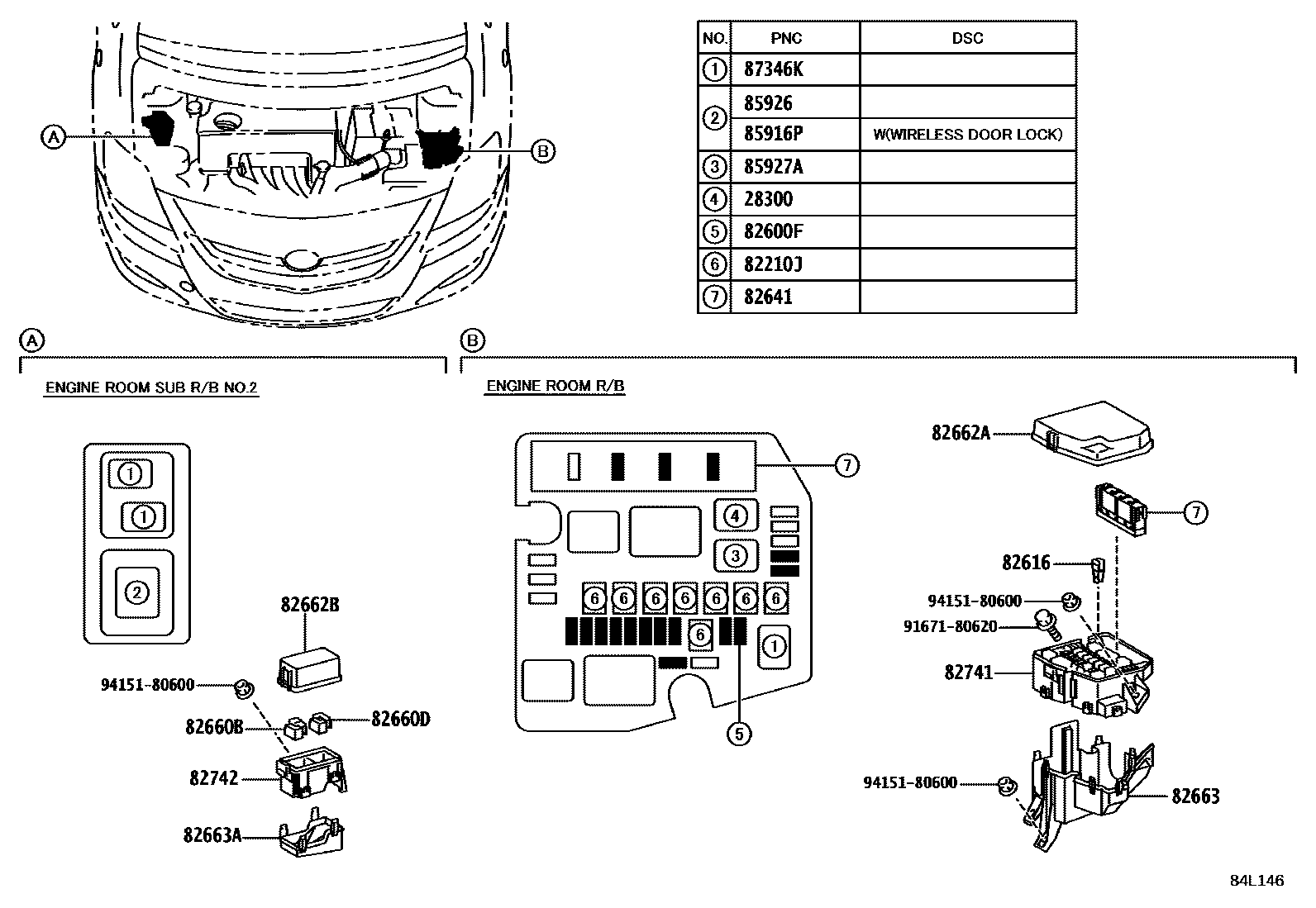

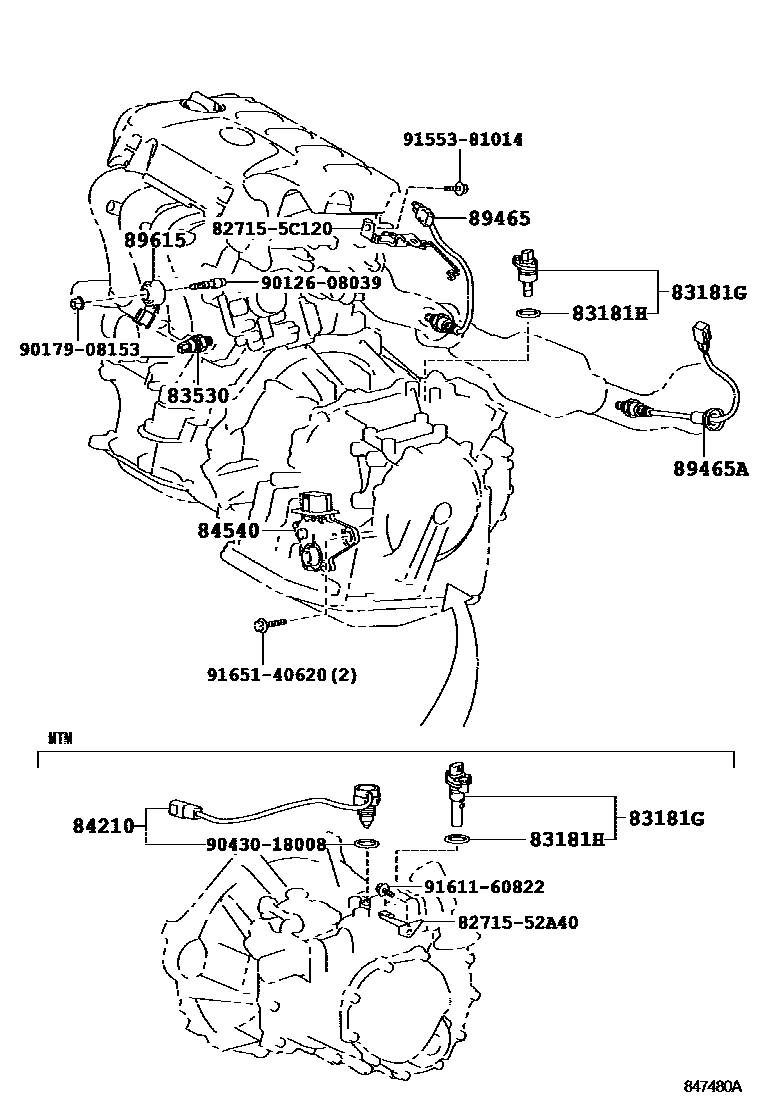

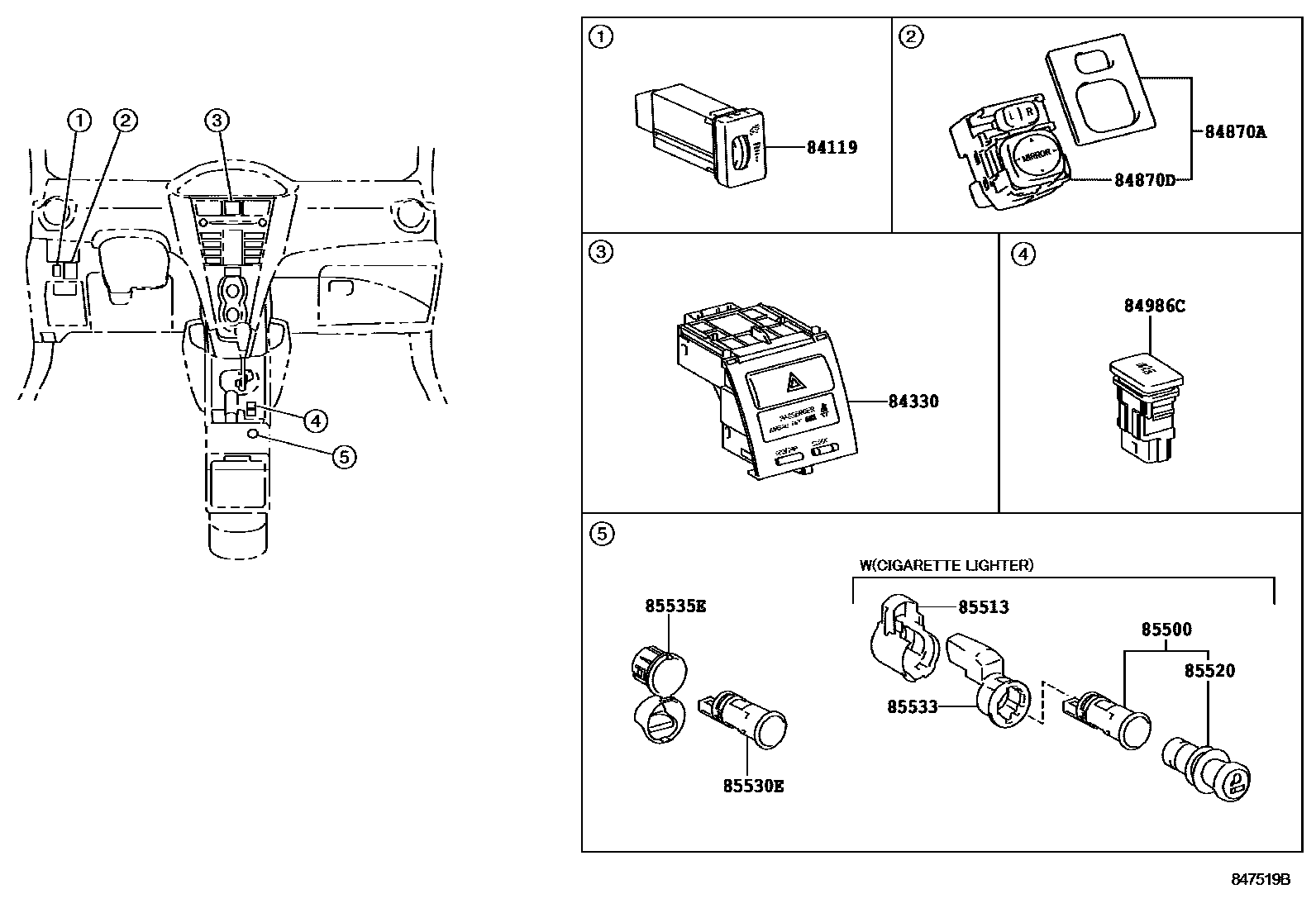

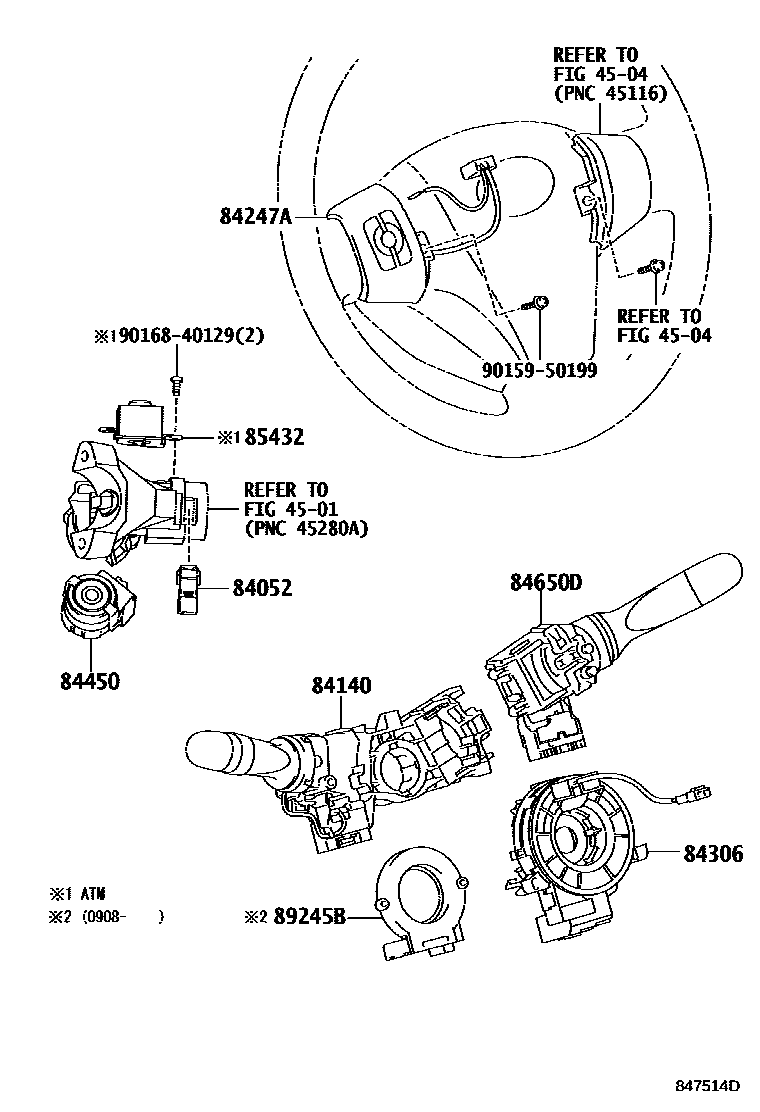

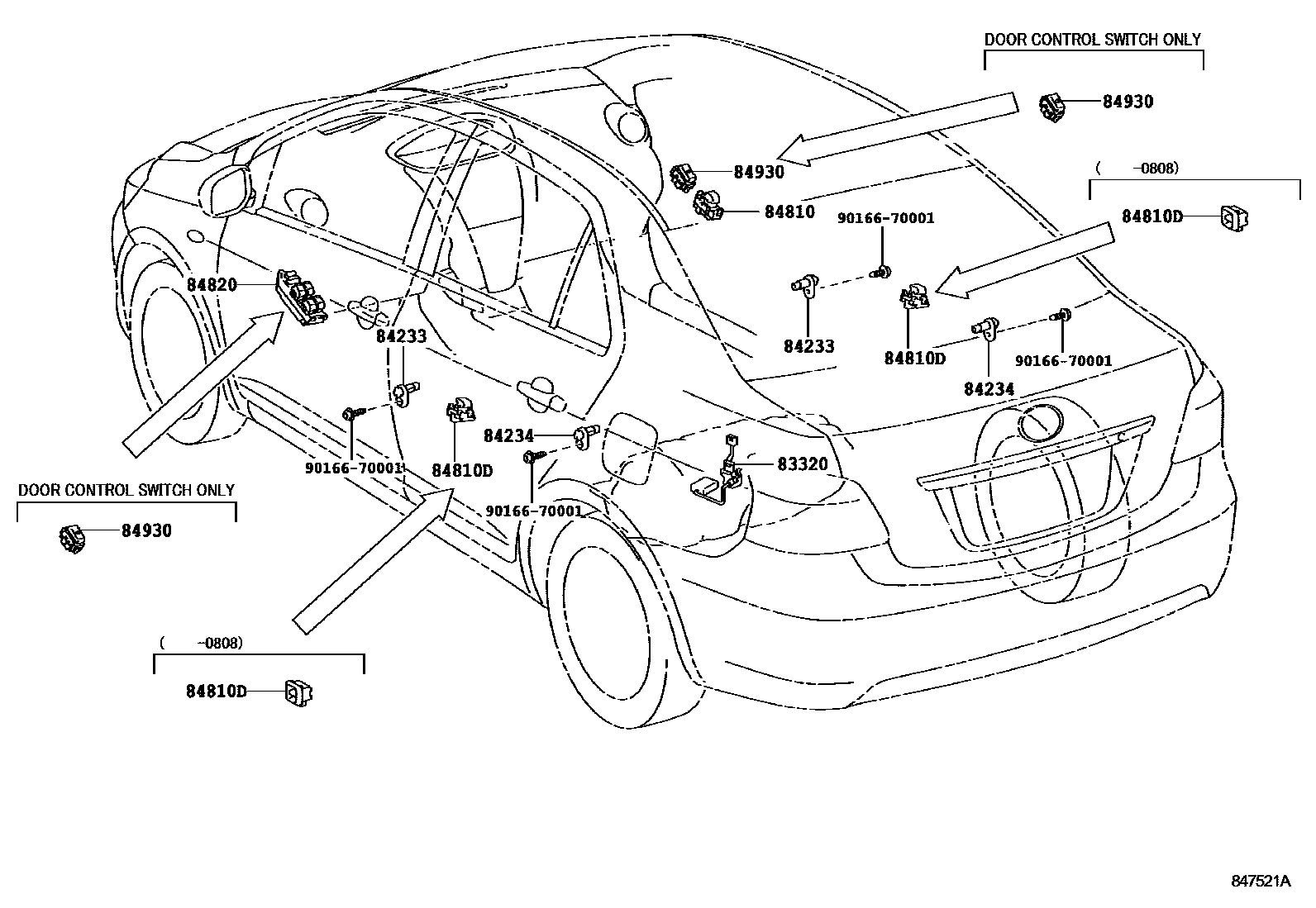

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 · 90987-02031 |
| 81980 | Turn signal flasher relay assembly | 81980-46010 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-52010 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52050 |
| 82621A | Fuse cover | 82621-52120 · 82621-52140 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660D | Relay assembly | 82660-52010 |
| 82660F | Relay assembly | 82660-52030 |
| 82660G | Relay assembly | 82660-52040 |
| 82662A | No. 1 relay box upper cover | 82662-52301 · 82662-52760 |
| 82662B | No. 2 relay box upper cover | 82662-52310 |
| 82663 | Relay box lower cover | 82663-52031 |
| 82663A | No. 2 relay box lower cover | 82663-52060 |
| 82673A | Junction box bracket | 82673-52110 |
| 82673B | Junction box bracket | 82673-52120 |
| 82673C | Junction box bracket | 82673-52130 |
| 82674 | Junction box lower cover | 82674-46010 |
| 82730 | Instrument panel junction box assembly | 82730-52610 · 82730-52660 · 82730-52890 · 82730-52A00 · 82730-52A10 · 82730-52G20 · 82730-52G50 · 82730-52G60 · 82730-52G70 |
| 82741 | Engine room relay box | 82741-52031 |
| 82742 | Engine room No. 2 relay box | 82741-52050 |
| 82810 | Driving light relay assembly | 82810-52040 |
| 83181G | speedometer sensor | 83181-12020 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-52180 · 83320-52181 · 83320-52260 · 83320-52261 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-52030 |
| 84140 | Headlight dimmer switch assembly | 84140-52140 · 84140-52141 · 84140-52150 · 84140-52151 · 84140-52200 · 84140-52210 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 · 84231-52230 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52010 · 84231-52230 |
| 84306 | Spiral cable sub-assembly | 84306-22010 · 84306-48030 · 84306-52100 |
| 84330 | Hazard warning signal switch assembly | 84330-52010 · 84330-52011 · 84330-52012 · 84330-52050 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69025 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-71010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-12A20 · 84652-12A30 · 84652-12B30 · 84652-52240 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-12540 · 84820-33270 · 84820-52250 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-52030 |
| 84930 | Door control switch assembly | 84930-52080 |
| 84986C | VSC off switch | 84986-20010 · 84988-42040 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85535E | No. 2 power outlet cover | 85535-52050 · 85535-52051 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 · 85928-52032 |
| 85930K | No. 2 ACC relay | 90987-04004 |
| 87346K | PTC heater relay | 90987-02027 |
| 89245B | steering sensor | 89245-52030 |
| 89465 | oxygen sensor | 89467-52020 |
| 89465A | Oxygen sensor No. 2 | 89465-52430 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52120 · 89650-52140 · 89650-52420 · 89650-52421 · 89650-52440 · 89650-52441 |
