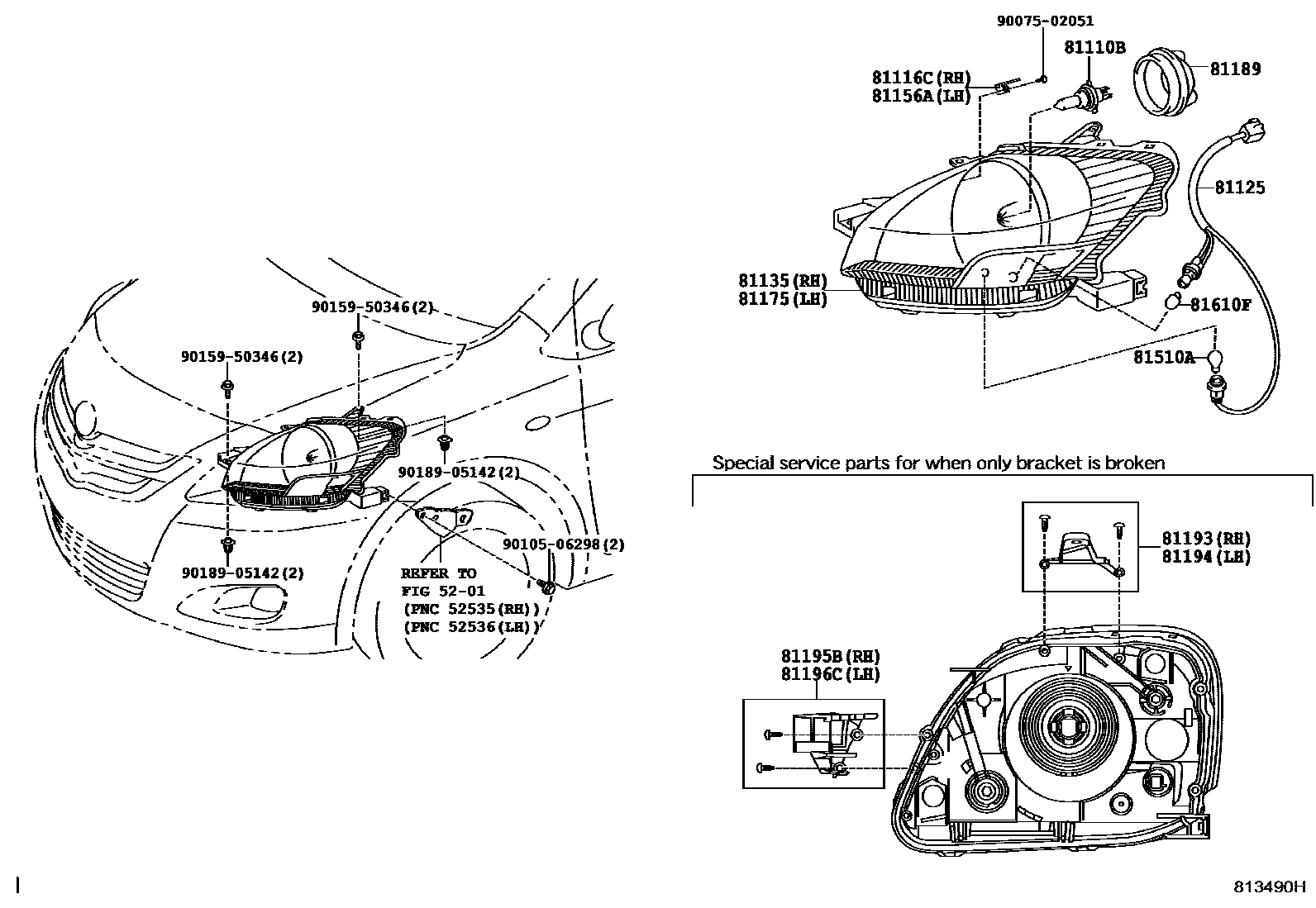

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81116C | Right headlight bracket | 81116-52730 |
| 81125 | headlight wire | 81125-52750 · 81125-52F20 |
| 81135 | Right headlight assembly | 81130-52750 · 81130-52A90 · 81130-52F20 |
| 81156A | Left headlight bracket | 81116-52730 |
| 81175 | Left headlight assembly | 81170-52740 · 81170-52A80 · 81170-52F20 |
| 81189 | headlight cover | 90075-65002 |
| 81193 | Right headlight upper protective ring | 81193-52120 |
| 81194 | Left headlight upper protective ring | 81194-52120 |
| 81195B | Right headlight lower right protection piece | 81195-52080 |
| 81196C | Left headlight lower left protection piece | 81196-52080 |
| 81510A | AMPOULE, FEU DE DIRECTION AVANT ET FEU DE STATIONNEMENT | 90981-13044 · 90981-15024 |
| 81610F | Light bulb (for width indicator light) | 90981-15012 · 99132-12050 |
